Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

24 part groups · 2 illustrations

Illustrations

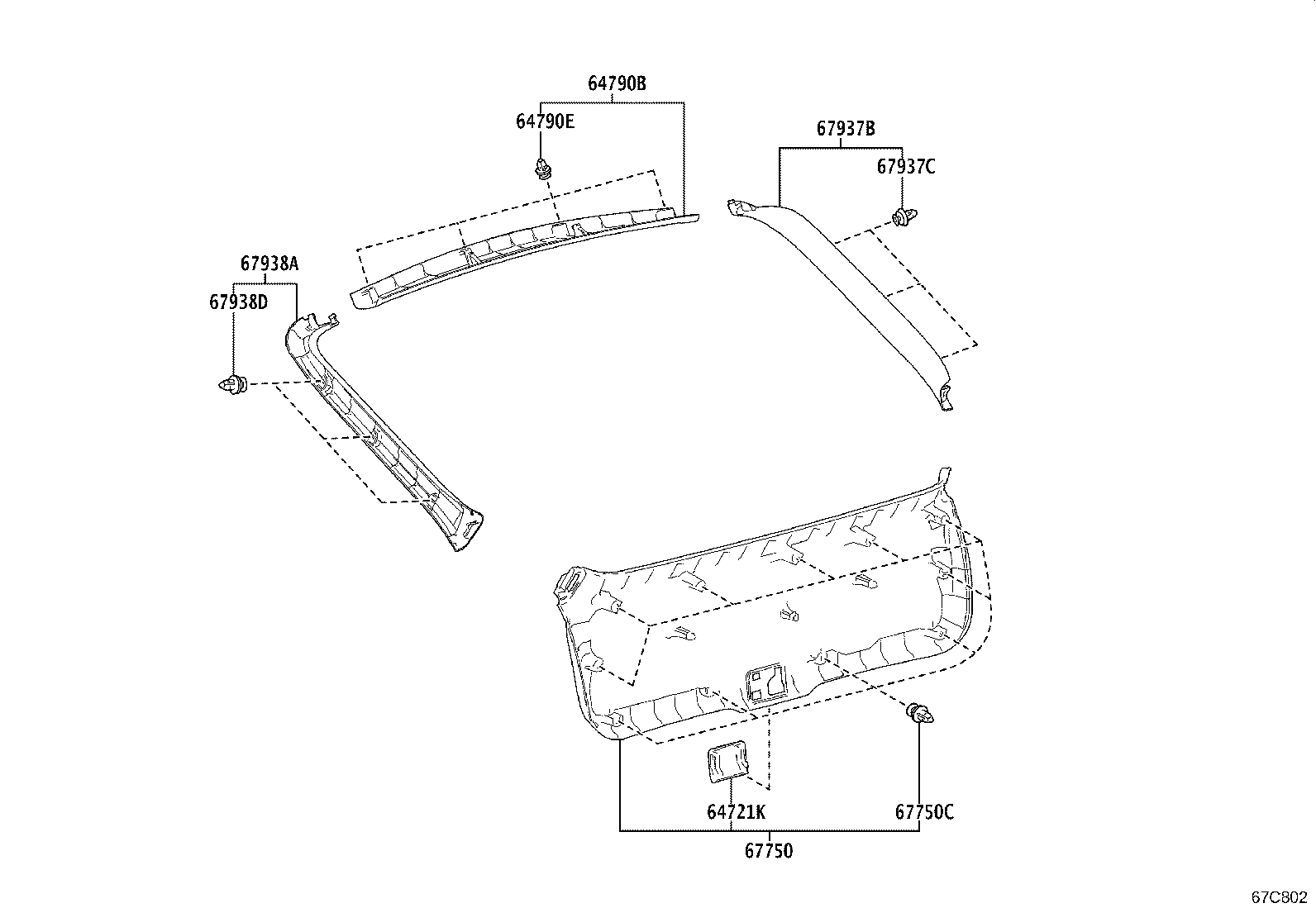

Figure 67D1E6A 67D1E6A 2022-12 → — Figure 67C802 67C802 2022-12 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64721K Cover, Luggage Compartment Trim
64790B Panel Assy, Back Door Trim, Upper
64790E Clip(FOR BACK DOOR TRIM PANEL)
64818C Spacer, Back Window Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67281G Stopper, Back Door, Lower RH
67282F Stopper, Back Door, Lwr LH
67293A Cushion, Back Door Stopper
67750 Board Assy, Back Door Trim
67750C Clip(FOR BACK DOOR TRIM BOARD)
67837L Seal, Door Dust Proof
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
67938D Clip(FOR BACK DOOR SIDE GARNISH)
68131 Glass, Back Door
68294A Dam, Back Door Glass Adhesive
69290G Base Assy, Glide Door Inside Handle
74811D Handle, Door Pull
75571F Mouldimg, Back Door Window
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
