Toyota Prius
2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe
Supported model
Data version 2023-03

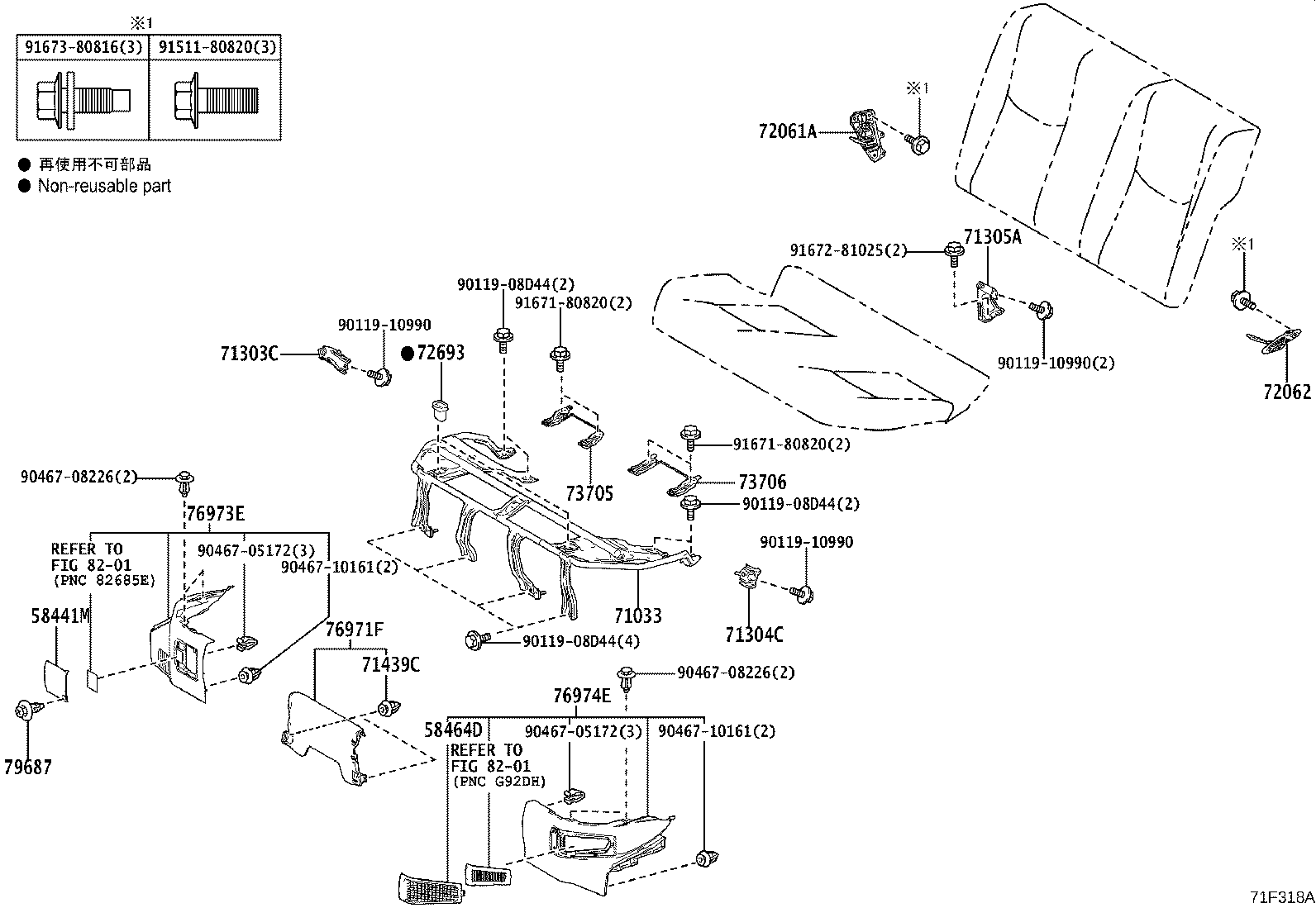

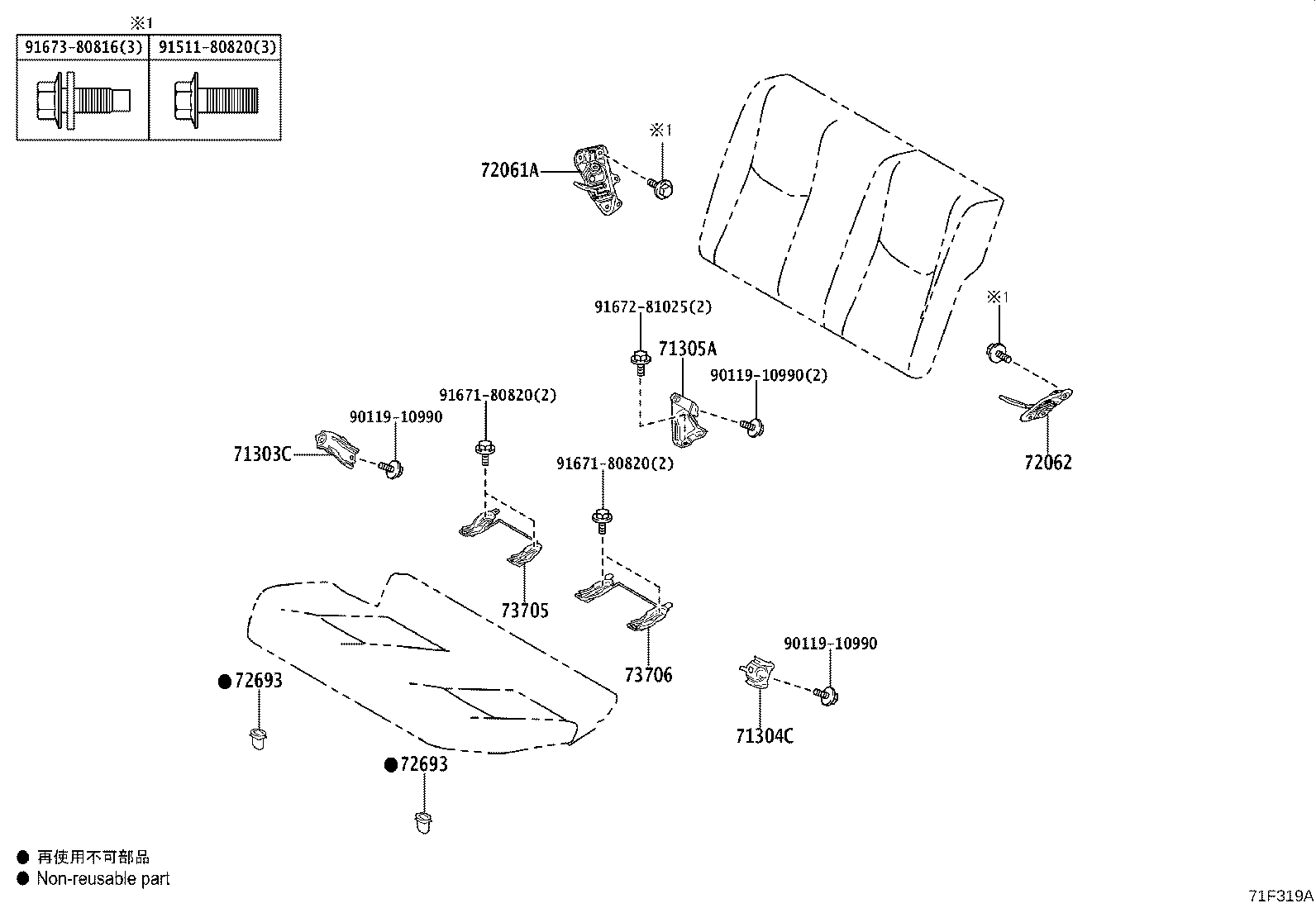

Rear Seat & Seat Track
44 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58441M | Cover, Battery Service Hole |
| 58464D | Board, Battery Service Cover |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71075E | Clip(FOR REAR SEAT) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71439C | Clip |
| 71503A | Pad Sub-assy, Rear Seat Cushion |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71701C | Board Sub-assy, Rear Seatback, RH |
| 71702C | Board Sub-assy, Rear Seatback, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72061A | Base Sub-assy, Rear Seatback Lock, RH |
| 72062 | Base Sub-assy, Rear Seatback Lock, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72667 | Bezel, Rear Seatback Lock, Upper |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72839 | Shim, Rear Seat Armrest Hinge |
| 72868B | Cover, Center Armrest Hinge |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
| 73731 | Cover, Child Restraint Seat |
| 73733 | Cover, Child Restraint Seat Base |
| 73735A | Cup, Child Restraint Seat Guide |
| 76971F | Cover, Rear Under |
| 76973E | Cover, Rear Under Side, RH |
| 76974E | Cover, Rear Under Side, LH |
| 78899C | Bolt, Rear Sub Seat |
| 79687 | Clip |
| 87510Y | Heater Assy, Rear NO.1 Seat Cushion, LH |
| 87510Z | Heater Assy, Rear NO.1 Seat Cushion, RH |
| 87530 | Heater Assy, Rear NO.1 Seatback, LH |
| 87530A | Heater Assy, Rear NO.1 Seatback, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
