Toyota Prius
2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe
Supported model
Data version 2023-03
Side Moulding

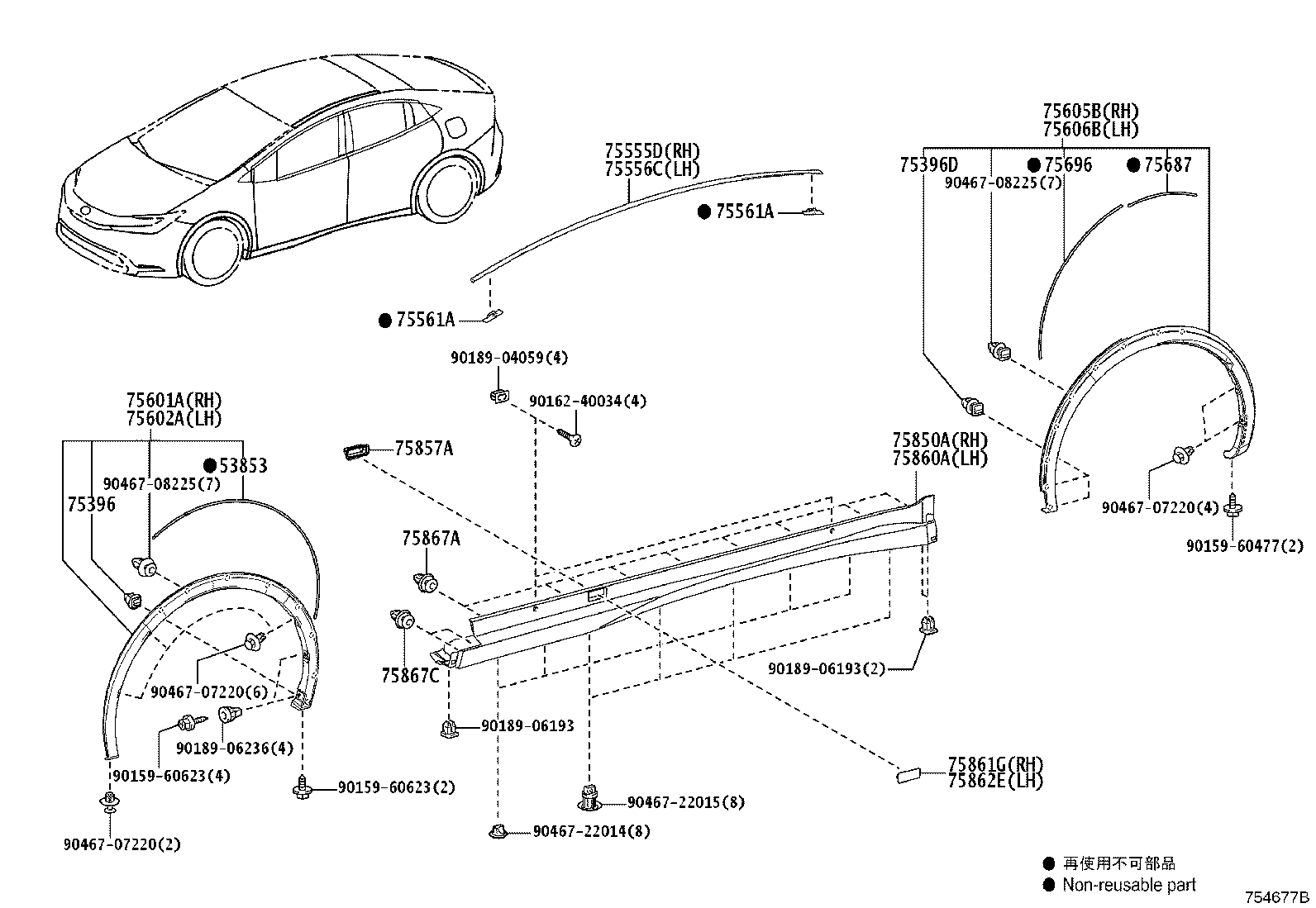

38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53853 | Pad, Front Wheel Opening Extension, NO.3 |
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 62505E | Cover Sub-assy, Quarter Pillar, RH |
| 62506C | Cover Sub-assy, Quarter Pillar, LH |
| 75396 | Clip, Outside Moulding, NO.2 |
| 75396D | Clip, Outside Moulding, NO.2 |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75687 | Protector, Quarter Moulding, Lower Rear RH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75751C | Moulding, Front Door Window Frame, Front RH |
| 75752C | Moulding, Front Door Window Frame, Front LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75792 | Clip, Door Window Frame Moulding |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75857A | Cover, Rocker Panel Moulding, RH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75861G | Cover, Rocker Panel Moulding End, Front RH |
| 75862E | Cover, Rocker Panel Moulding End, Front LH |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
