Toyota Prius
2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe
Supported model
Data version 2023-03

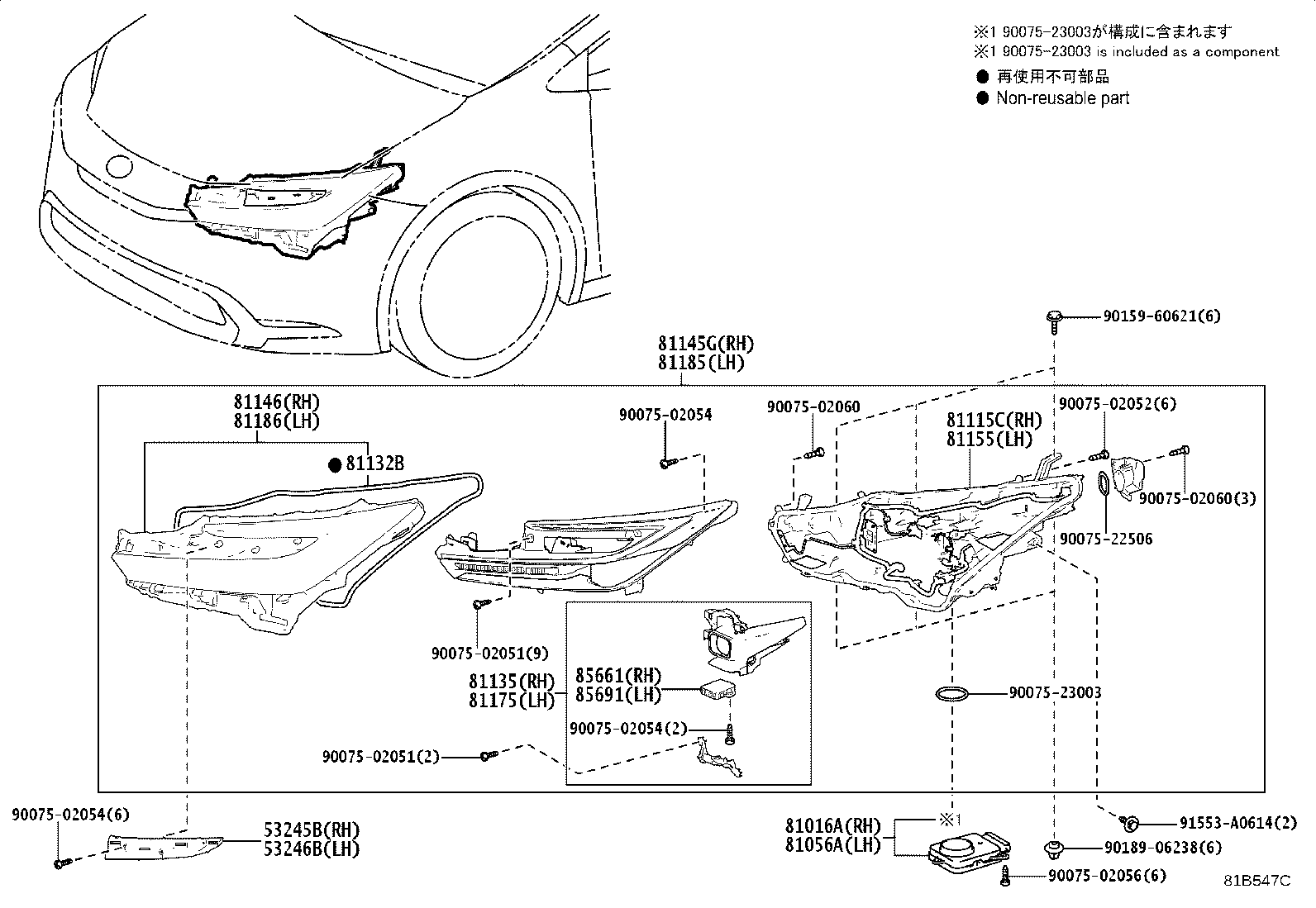

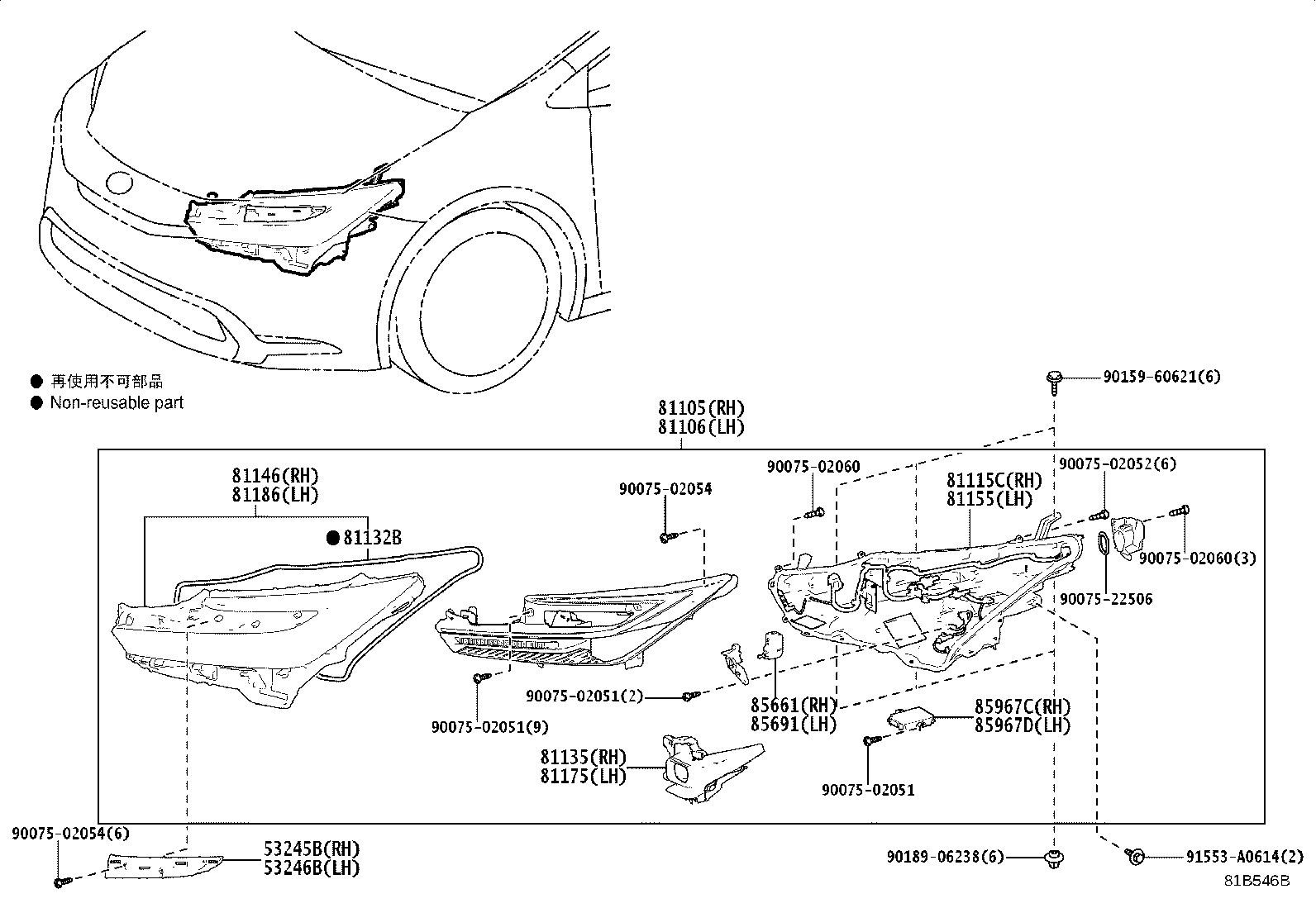

Headlamp
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53245B | Bracket, Headlamp, RH |
| 53246B | Bracket, Headlamp, LH |
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 81105 | Housing Sub-assy, Headlamp, RH |
| 81106 | Housing Sub-assy, Headlamp, LH |
| 81115C | Housing, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81135 | Unit Assy, Headlamp, RH |
| 8113A | Led, Headlamp Front Turn Signal |
| 81145G | Unit, Headlamp W/Gasket, RH |
| 81146 | Lens, Headlamp, RH |
| 81155 | Housing, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81185 | Unit, Headlamp W/Gasket, LH |
| 81186 | Lens, Headlamp, LH |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
