Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

7 part groups · 2 illustrations

Illustrations

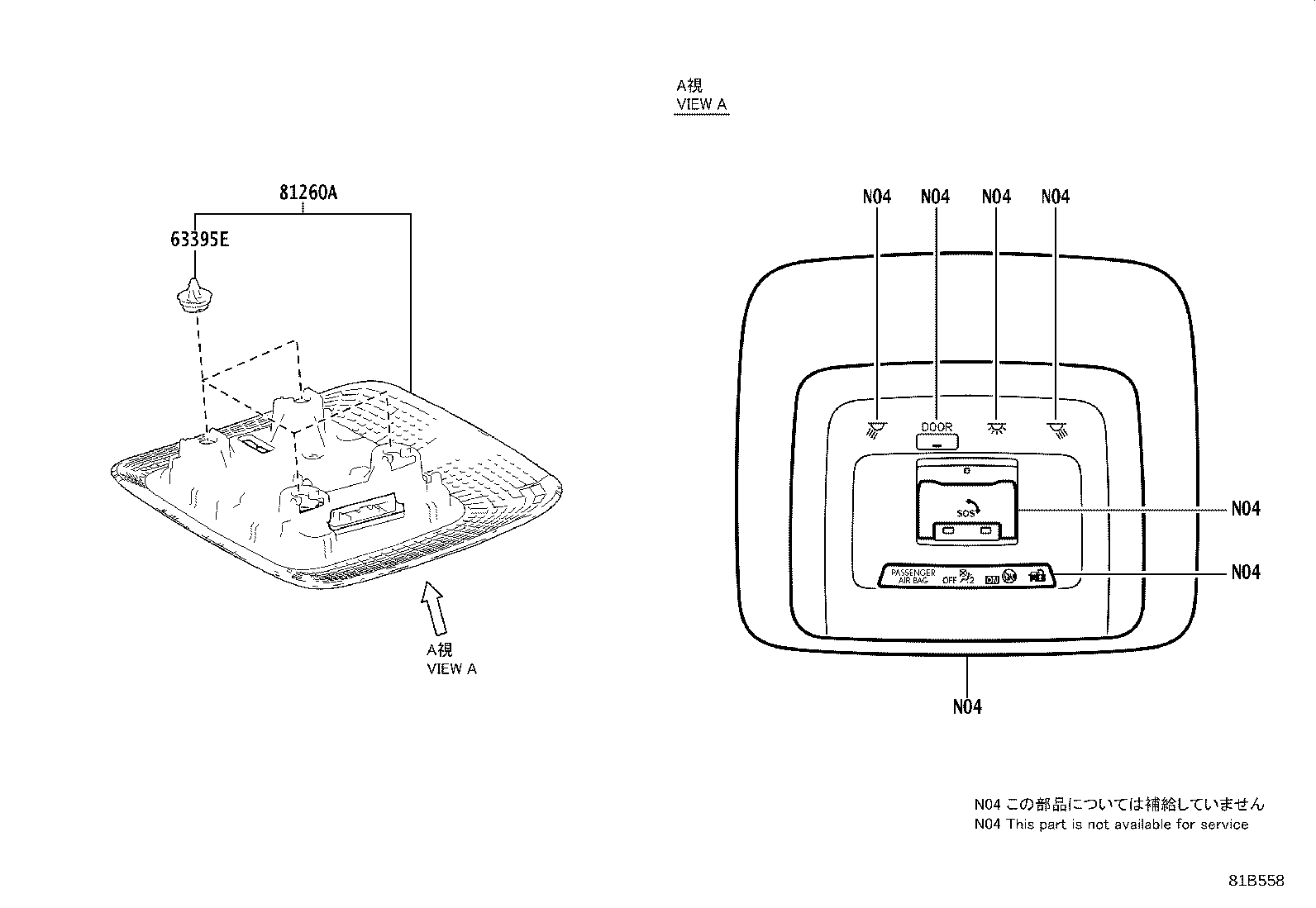

Figure 81B555A 81B555A 2022-12 → — Figure 81B558 81B558 2022-12 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080V Lamp Assy, Interior Illumination, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81360T Lamp Assy, Spot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
