Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

10 part groups · 2 illustrations

Illustrations

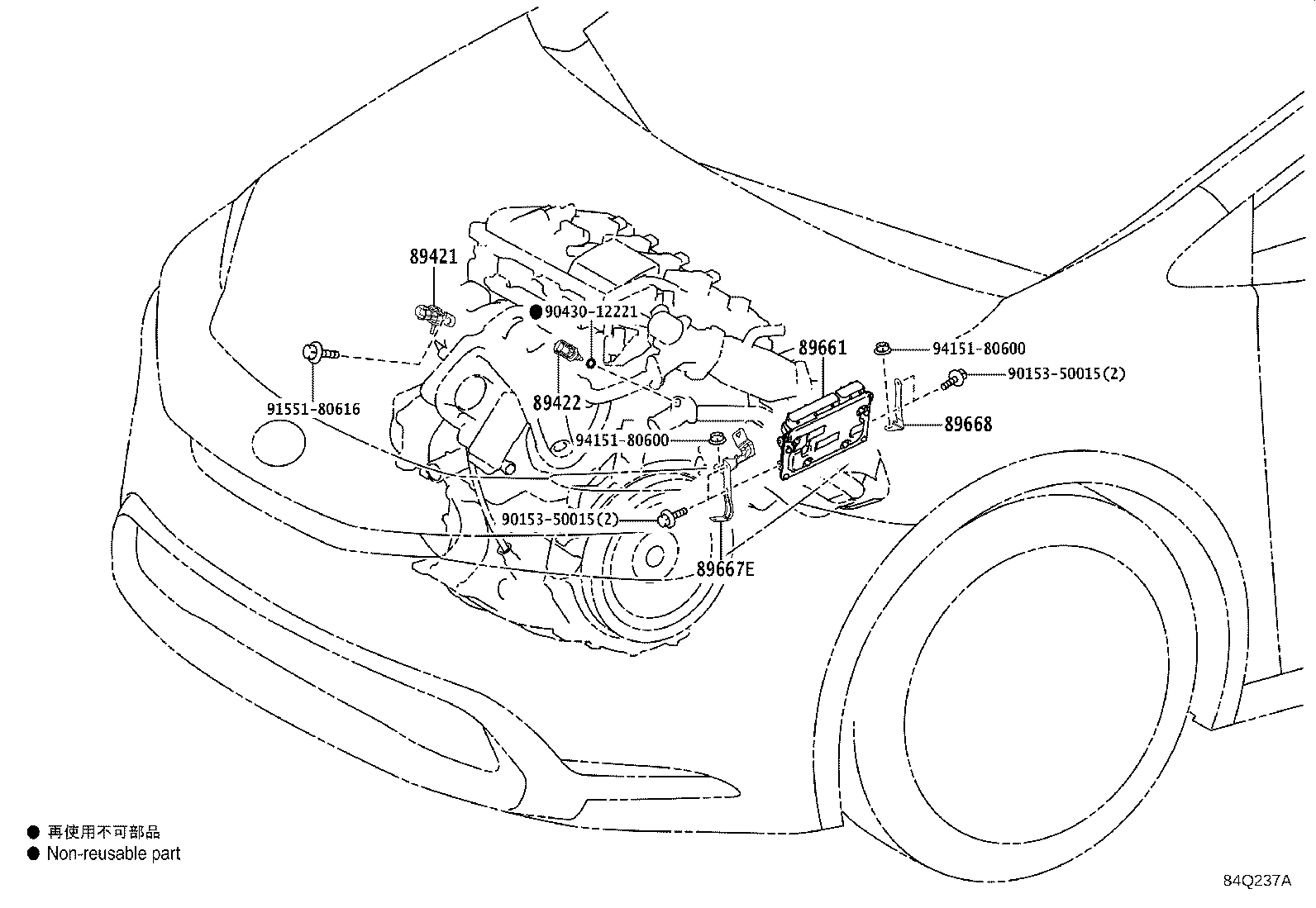

Figure 84Q238A 84Q238A 2022-12 → — Figure 84Q237A 84Q237A 2022-12 → —

Part groups

PNCDescription
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89448D Sensor, Oil Pressure & Temperature
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
