Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 2 illustrations

Illustrations

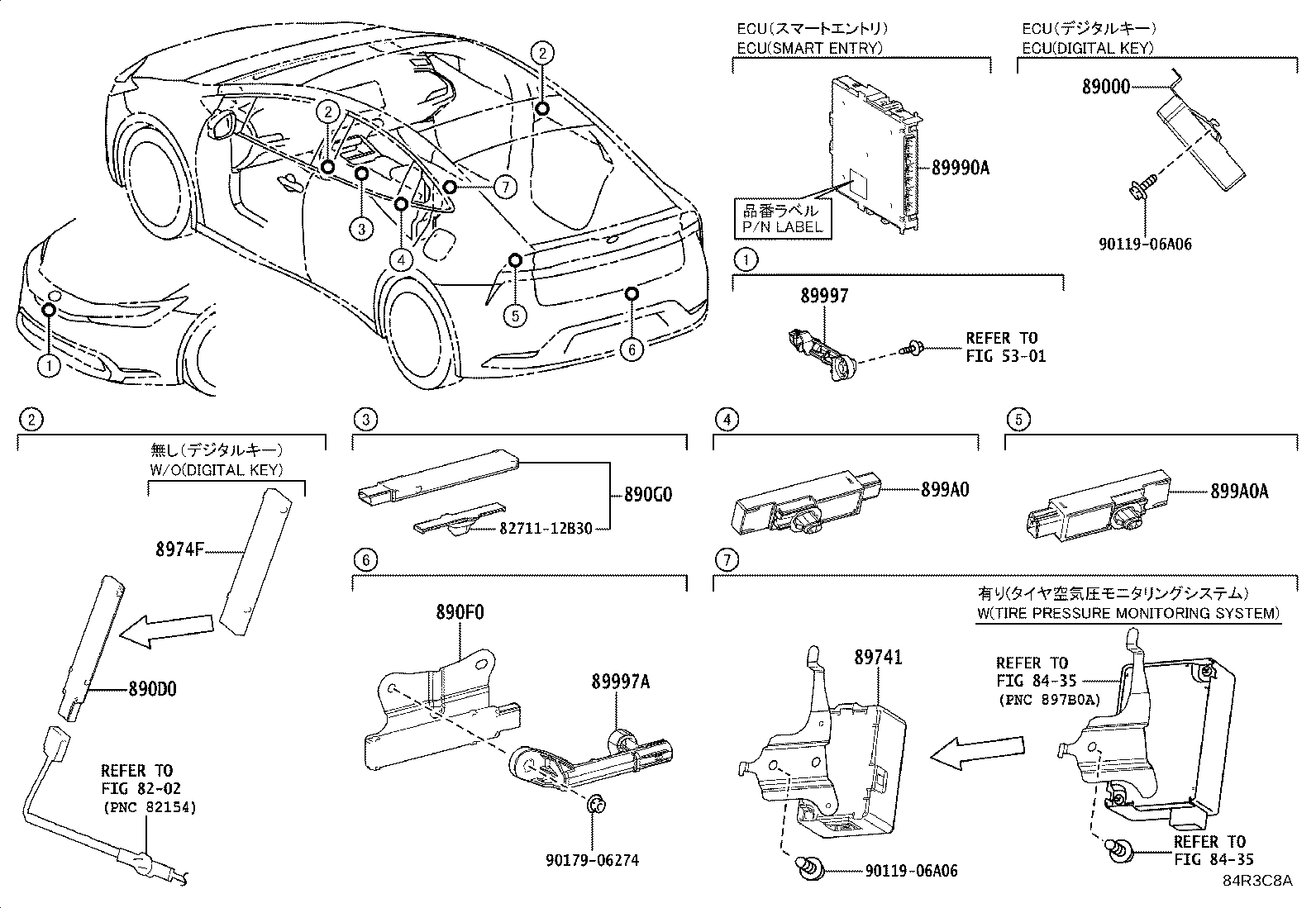

Figure 84Q373B 84Q373B 2022-12 → 2025-01 Figure 84R3C8A 84R3C8A 2025-01 → —

Part groups

PNCDescription
89000 Computer Assy, Digital Key
890D0 Receiver Assy, Ble Door Digital Key
890F0 Receiver Assy, Ble Luggage Digital Key
890G0 Receiver Assy, Ble Indoor Digital Key
89741 Receiver, Door Control
8974F Case, W/O Digital Key
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
89997A Antenna, Electrical Key, NO.2
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
