Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

9 part groups · 2 illustrations

Illustrations

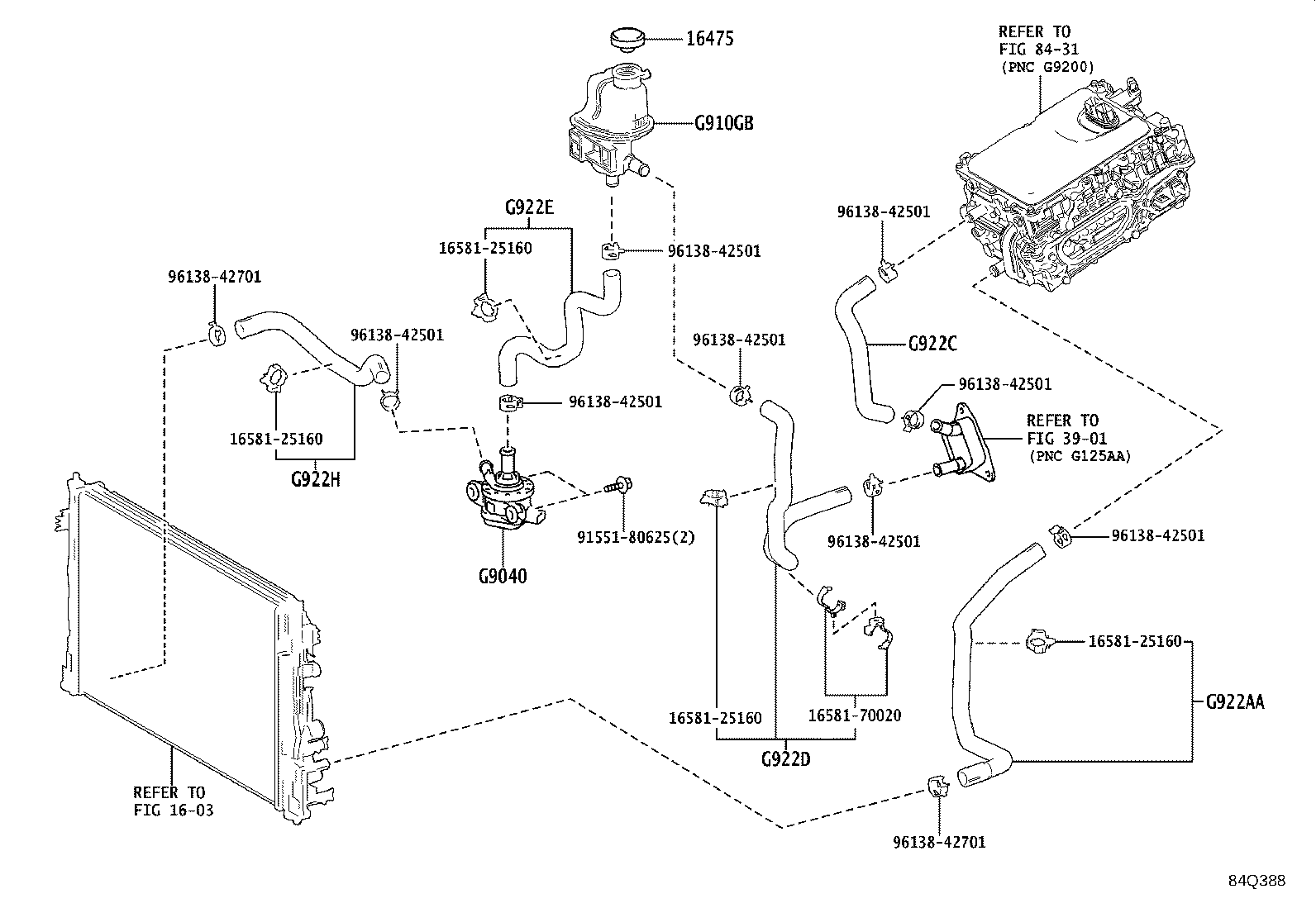

Figure 84Q387 84Q387 2022-12 → — Figure 84Q388 84Q388 2022-12 → —

Part groups

PNCDescription
16475 Cap, Reserve Tank
G9040 Inverter Water Pump Assy(W/MOTOR)
G910GB Tank Sub-assy, Inverter Reserve W/O Cap
G921A Bracket, Inverter Reserve Tank, NO.1
G922AA Hose, Inverter Cooling Inlet, NO.1
G922C Hose, Inverter Cooling Outlet, NO.1
G922D Hose, Inverter Cooling Outlet, NO.2
G922E Hose, Hybrid Water Pump Inlet
G922H Hose, Hybrid Radiator Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
