Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

13 part groups · 2 illustrations

Illustrations

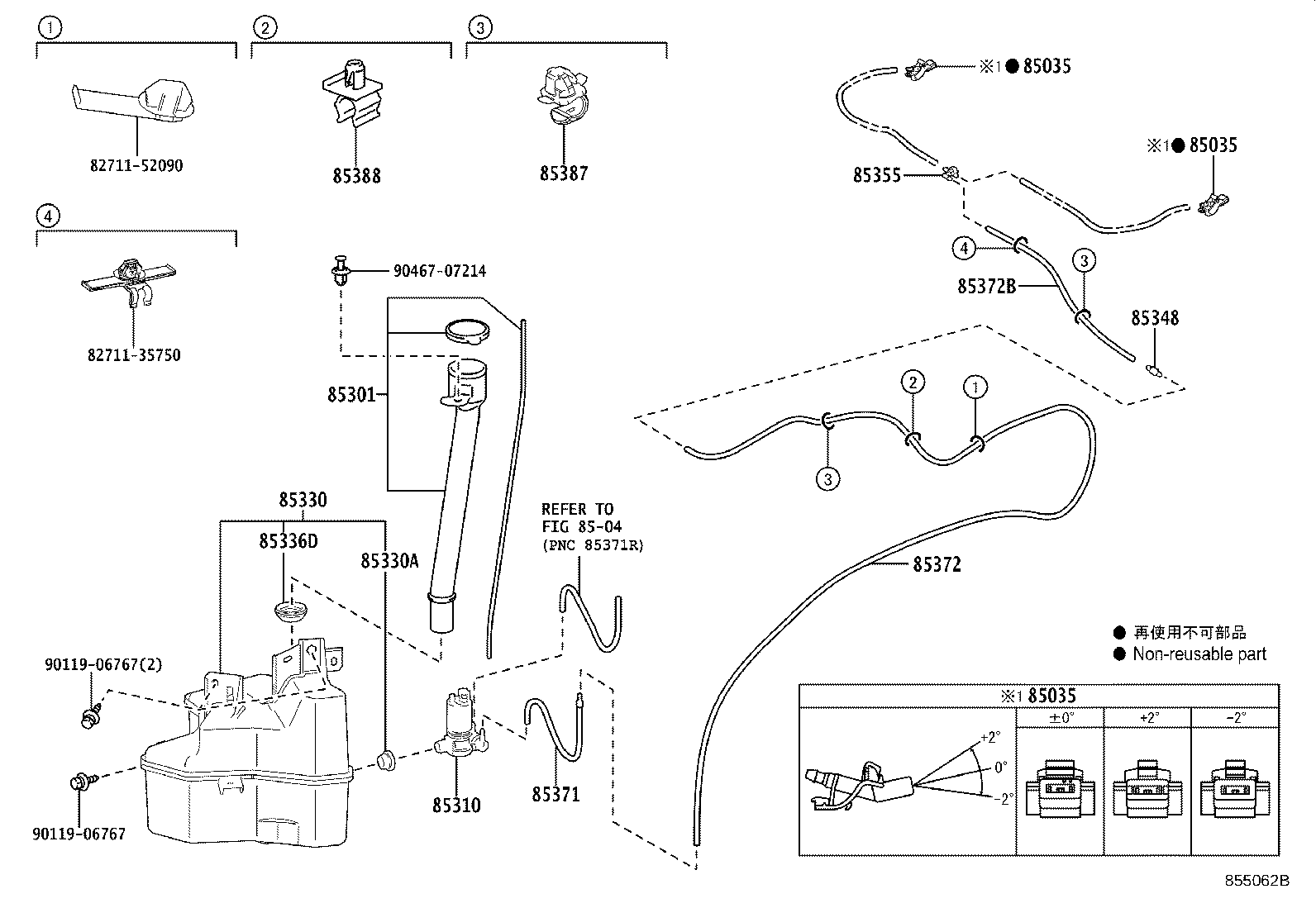

Figure 855061B 855061B 2022-12 → — Figure 855062B 855062B 2022-12 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85355 Valve, Windshield Washer Hose
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85387 Clamp NO.1 (FOR WINDSEIELD WASHER)
85388 Clamp NO.2 (FOR WINDSEIELD WASHER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
