Toyota Prius
2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe
Supported model
Data version 2023-03

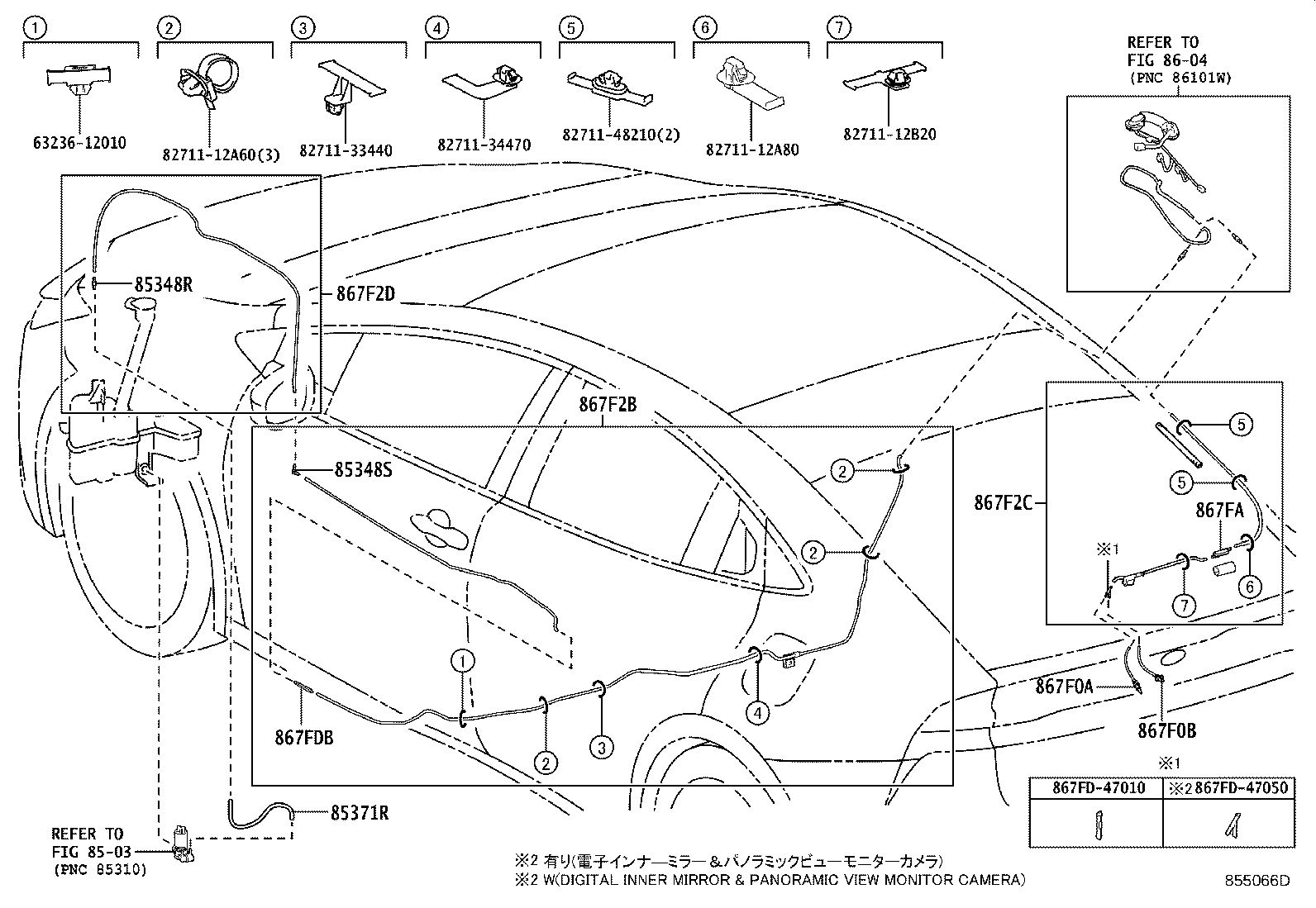

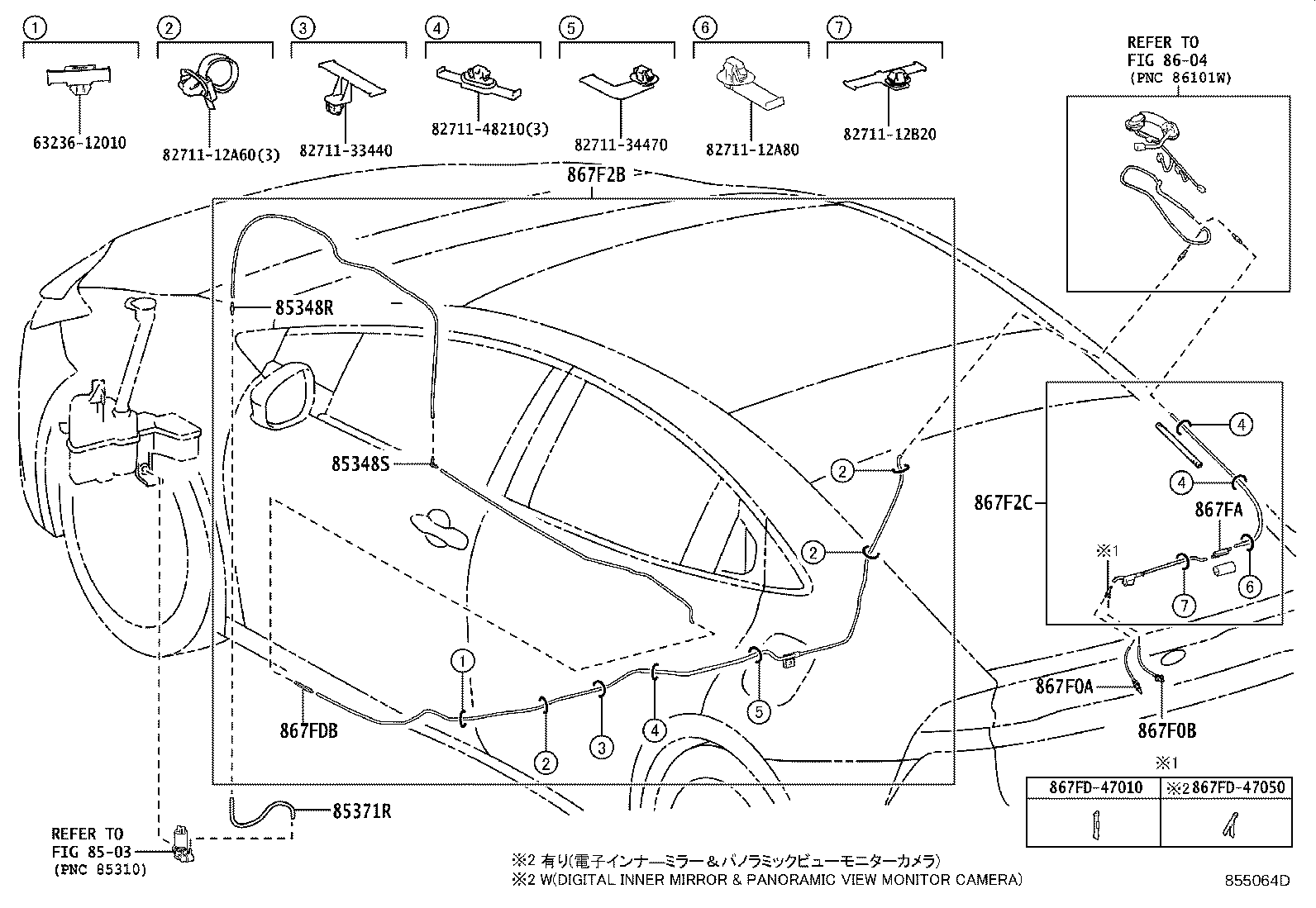

Rear Washer
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 867F0A | Nozzle Assy, Camera Cleaner, NO.1 |
| 867F0B | Nozzle Assy, Camera Cleaner, NO.2 |
| 867F2B | Hose, Camera Cleaner, NO.1 |
| 867F2C | Hose, Camera Cleaner, NO.2 |
| 867F2D | Hose, Camera Cleaner, NO.3 |
| 867FA | Filter, Cleaner Hose |
| 867FDB | Joint, Lidar Cleaner Hose, Rear NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
