Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11

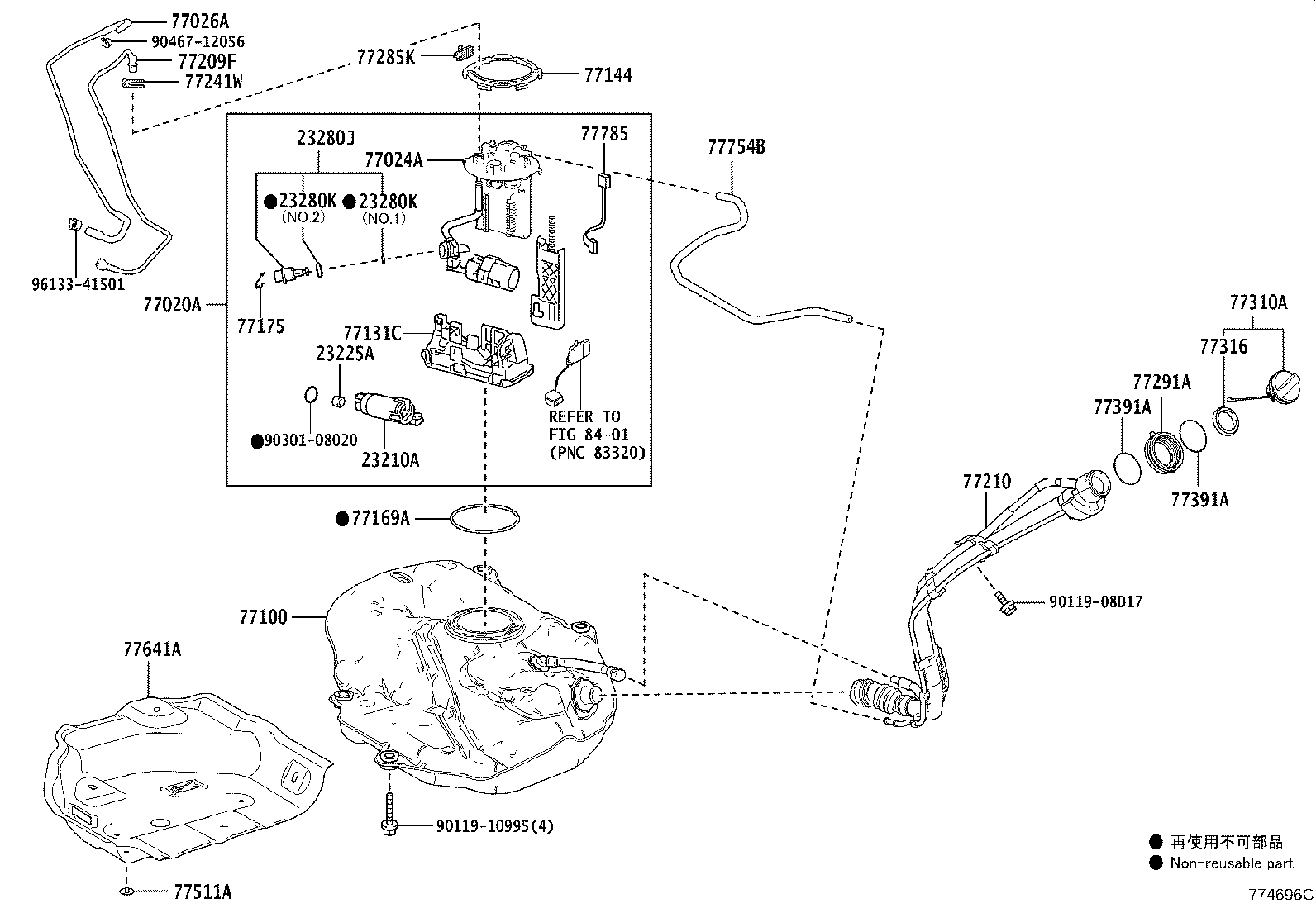

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23210A — Pump Assy, Fuel W/Motor & Bracket | ||||
| 23210-37020 |
Pump Assy, Fuel W/Motor & Bracket
2018-12 → —
|
2ZRFXE ZVW5# | — | |
| 23225A — Spacer, Fuel Pump | ||||
| 23225-21020 |
Spacer, Fuel Pump
2015-11 → 2018-12
ended
|
2ZRFXE ZVW50 | — | |
| 23225-21020 |
Spacer, Fuel Pump
2018-12 → —
|
2ZRFXE ZVW5# | — | |
| 23280J — Regulator Assy, Fuel Pressure | ||||
| 23280-21010 |
Regulator Assy, Fuel Pressure
2015-11 → 2018-12
ended
|
2ZRFXE ZVW50 | — | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2018-12 → —
|
2ZRFXE ZVW5# | — | |
| 23280K — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2015-11 → 2018-12
ended
|
2ZRFXE ZVW50 | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2015-11 → 2018-12
ended
|
2ZRFXE ZVW50 | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2018-12 → —
|
2ZRFXE ZVW5# | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2018-12 → —
|
2ZRFXE ZVW5# | — | |
| 77020A — Tube Assy, Fuel Suction W/Pump & Gage | ||||
| 77020-47140 |
Tube Assy, Fuel Suction W/Pump & Gage
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77020-12A60 |
Tube Assy, Fuel Suction W/Pump & Gage
2018-12 → —
|
ZVW5# | — | |
| 77024A — Plate Sub-assy, Fuel Suction | ||||
| 77024-10030 |
Plate Sub-assy, Fuel Suction
2017-09 → 2018-11
ended
|
ZVW50 | — | |
| 77024-47080 |
Plate Sub-assy, Fuel Suction
2018-11 → 2018-12
ended
|
ZVW50 | — | |
| 77024-47080 |
Plate Sub-assy, Fuel Suction
2015-11 → 2017-08
ended
|
ZVW50 | — | |
| 77024-10020 |
Plate Sub-assy, Fuel Suction
2018-12 → —
|
ZVW5# | — | |
| 77026A — Tube Sub-assy, Fuel Evaporation, NO.1 | ||||
| 77026-47040 |
Tube Sub-assy, Fuel Evaporation, NO.1
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77026-47040 |
Tube Sub-assy, Fuel Evaporation, NO.1
2018-12 → —
|
ZVW5# | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-47220 |
Tank Assy, Fuel
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77001-47130 |
Tank Assy, Fuel
2018-12 → —
|
ZVW5# | — | |
| 77131C — Sub-tank, Fuel, NO.1 | ||||
| 77103-12130 |
Sub-tank, Fuel, NO.1
2018-12 → —
|
ZVW5# | — | |
| 77144 — Retainer, Fuel Pump Gauge | ||||
| 77144-30030 |
Retainer, Fuel Pump Gauge
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77144-30030 |
Retainer, Fuel Pump Gauge
2018-12 → —
|
ZVW5# | — | |
| 77169A — Gasket, Fuel Suction Tube Set | ||||
| 77169-47030 |
Gasket, Fuel Suction Tube Set
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77169-47040 |
Gasket, Fuel Suction Tube Set
2018-12 → —
|
ZVW5# | — | |
| 77175 — Support, Fuel Suction, NO.2 | ||||
| 77175-78010 |
Support, Fuel Suction, NO.2
2018-12 → —
|
ZVW5# | — | |
| 77209F — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-47100 |
Tube Sub-assy, Fuel Tank Main
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77209-76050 |
Tube Sub-assy, Fuel Tank Main
2018-12 → —
|
ZVW5# | — | |
| 77210 — Pipe Assy, Fuel Tank Filler | ||||
| 77210-47370 |
Pipe Assy, Fuel Tank Filler
2018-12 → —
|
ZVW5# | — | |
| 77241W — Clip, Tube Joint | ||||
| 77241-33011 |
Clip, Tube Joint
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77241-33011 |
Clip, Tube Joint
2018-12 → 2021-08
ended
|
ZVW5# | — | |
| 77241-60550 |
Clip, Tube Joint
2021-09 → —
|
ZVW5# | — | |
| 77285K — Clamp, Fuel Tube, NO.1 | ||||
| 77285-30350 |
Clamp, Fuel Tube, NO.1
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77285-30350 |
Clamp, Fuel Tube, NO.1
2018-12 → —
|
ZVW5# | — | |
| 77291A — Shield, Fuel Tank Filler Pipe | ||||
| 77291-47040 |
Shield, Fuel Tank Filler Pipe
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77291-47040 |
Shield, Fuel Tank Filler Pipe
2018-12 → —
|
ZVW5# | — | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-12020 |
Cap Assy, Fuel Tank
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77300-48020 |
Cap Assy, Fuel Tank
2018-12 → —
|
ZVW5# | — | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-52040 |
Gasket, Fuel Tank Cap
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77316-75020 |
Gasket, Fuel Tank Cap
2018-12 → —
|
ZVW5# | — | |
| 77391A — Ring, Fuel Inlet Box | ||||
| 77391-12020 |
Ring, Fuel Inlet Box
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2018-12 → —
|
ZVW5# | — | |
| 77511A — Bracket, Fuel Tank | ||||
| 77512-35140 |
Bracket, Fuel Tank
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77512-35140 |
Bracket, Fuel Tank
2018-12 → —
|
ZVW5# | — | |
| 77641A — Protector, Fuel Tank, NO.1 | ||||
| 77641-47070 |
Protector, Fuel Tank, NO.1
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77641-47070 |
Protector, Fuel Tank, NO.1
2018-12 → —
|
ZVW5# | — | |
| 77754B — Hose, Charcoal Canister Outlet | ||||
| 77754-47090 |
Hose, Charcoal Canister Outlet
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77754-47090 |
Hose, Charcoal Canister Outlet
2018-12 → —
|
ZVW5# | — | |
| 77785 — Harness, Fuel Pump | ||||
| 77785-12010 |
Harness, Fuel Pump
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 77785-12010 |
Harness, Fuel Pump
2018-12 → —
|
ZVW5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
