Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

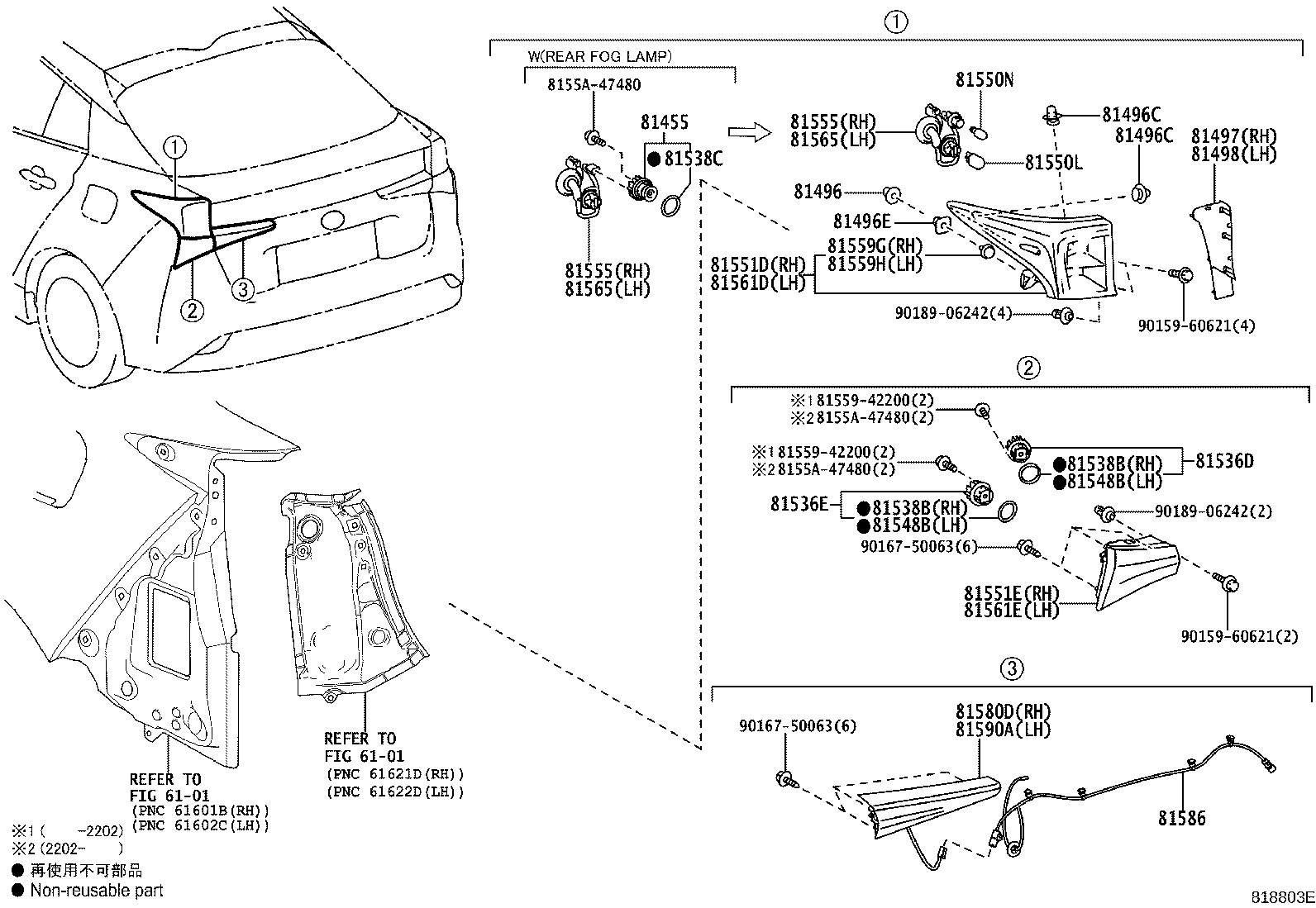

Exploded illustration 818803E 81586 — CORD, REAR LAMP (1 parts) 81580D — LAMP ASSY, REAR, RH (1 parts) 81590A — LAMP ASSY, REAR, LH (1 parts) 9015960621 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9018906242 — not listed in this catalogue 81536E — LED, STOP LAMP (2 parts) 81538B — GASKET, REAR COMBINATION LAMP, NO.3 RH (3 parts) 81548B — GASKET, REAR COMBINATION LAMP, NO.3 LH (3 parts) 81551E — LENS & BODY, REAR COMBINATION LAMP, NO.2 RH (1 parts) 81561E — LENS & BODY, REAR COMBINATION LAMP, NO.2 LH (1 parts) 81538B — GASKET, REAR COMBINATION LAMP, NO.3 RH (3 parts) 81548B — GASKET, REAR COMBINATION LAMP, NO.3 LH (3 parts) 81536D — LED, TAILLAMP (1 parts) 81496E — GUIDE, REAR COMBINATION LAMP, NO.3 (5 parts) 81551D — LENS & BODY, REAR COMBINATION LAMP, RH (16 parts) 81561D — LENS & BODY, REAR COMBINATION LAMP, LH (21 parts) 81555 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH (6 parts) 81565 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH (7 parts) 81496 — GUIDE, REAR COMBINATION LAMP (4 parts) 81496C — GUIDE, REAR COMBINATION LAMP, NO.2 (7 parts) 81550L — BULB, REAR TURN SIGNAL LAMP (6 parts) 81550N — BULB, BACK UP LAMP (9 parts) 81496C — GUIDE, REAR COMBINATION LAMP, NO.2 (7 parts) 81555 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH (6 parts) 81565 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH (7 parts) 81497 — COVER, REAR COMBINATION LAMP, RH (4 parts) 81498 — COVER, REAR COMBINATION LAMP, LH (4 parts) 9015960621 — not listed in this catalogue 81455 — LED, REAR FOG LAMP (4 parts) 81538C — GASKET, REAR FOG LAMP (3 parts) 8155A47480 — not listed in this catalogue 9018906242 — not listed in this catalogue 8155A47480 — not listed in this catalogue 8155942200 — not listed in this catalogue 8155A47480 — not listed in this catalogue 8155942200 — not listed in this catalogue 81559G — CLIP, RR COMBINATION LAMP, RH (5 parts) 81559H — CLIP, RR COMBINATION LAMP, LH (5 parts) 6101 — not listed in this catalogue 6101 — not listed in this catalogue
818803E · 29 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
120 parts on this figure
Part number Description Fitment Price
81455 — Led, Rear Fog Lamp
81455-42060 Led, Rear Fog Lamp
2015-11 → 2018-12 ended
ZVW50 —
81455-42060 note Led, Rear Fog Lamp
2018-12 → 2020-08 ended
ZVW50 RHD —
81455-42060 Led, Rear Fog Lamp
2018-12 → —
ZVW5# —
81455-42060 note Led, Rear Fog Lamp
2018-12 → 2020-11 ended
ZVW50 RHD —
81496 — Guide, Rear Combination Lamp
81496-52020 Guide, Rear Combination Lamp
2015-11 → 2018-12 ended
ZVW50 —
81496-52020 note Guide, Rear Combination Lamp
2018-12 → 2020-08 ended
ZVW50 RHD —
81496-52020 note Guide, Rear Combination Lamp
2018-12 → 2020-11 ended
ZVW50 RHD —
81496-52020 Guide, Rear Combination Lamp
2018-12 → —
ZVW5# —
81496C — Guide, Rear Combination Lamp, NO.2
81496-48010 note Guide, Rear Combination Lamp, NO.2
2017-08 → 2018-12 ended
ZVW50 —
81496-60010 Guide, Rear Combination Lamp, NO.2
2015-11 → 2017-08 ended
ZVW50 —
81496-60010 note Guide, Rear Combination Lamp, NO.2
2017-08 → 2018-12 ended
ZVW50 —
81496-48010 note Guide, Rear Combination Lamp, NO.2
2018-12 → 2020-08 ended
ZVW50 RHD —
81496-48010 note Guide, Rear Combination Lamp, NO.2
2018-12 → 2020-11 ended
ZVW50 RHD —
81496-48010 note Guide, Rear Combination Lamp, NO.2
2018-12 → —
ZVW5# —
81496-60010 note Guide, Rear Combination Lamp, NO.2
2018-12 → —
ZVW5# —
81496E — Guide, Rear Combination Lamp, NO.3
76817-26040 Guide, Rear Combination Lamp, NO.3
2016-08 → 2018-12 ended
ZVW50 —
81496-52020 Guide, Rear Combination Lamp, NO.3
2015-11 → 2016-08 ended
ZVW50 —
76817-26040 note Guide, Rear Combination Lamp, NO.3
2018-12 → 2020-08 ended
ZVW50 RHD —
76817-26040 Guide, Rear Combination Lamp, NO.3
2018-12 → —
ZVW5# —
76817-26040 note Guide, Rear Combination Lamp, NO.3
2018-12 → 2020-11 ended
ZVW50 RHD —
81497 — Cover, Rear Combination Lamp, RH
81497-47020 Cover, Rear Combination Lamp, RH
2015-11 → 2018-12 ended
ZVW50 —
81497-47040 note Cover, Rear Combination Lamp, RH
2018-12 → 2020-08 ended
ZVW50 RHD —
81497-47040 note Cover, Rear Combination Lamp, RH
2018-12 → 2020-11 ended
ZVW50 RHD —
81497-47040 Cover, Rear Combination Lamp, RH
2018-12 → —
ZVW5# —
81498 — Cover, Rear Combination Lamp, LH
81498-47020 Cover, Rear Combination Lamp, LH
2015-11 → 2018-12 ended
ZVW50 —
81498-47040 note Cover, Rear Combination Lamp, LH
2018-12 → 2020-08 ended
ZVW50 RHD —
81498-47040 note Cover, Rear Combination Lamp, LH
2018-12 → 2020-11 ended
ZVW50 RHD —
81498-47040 Cover, Rear Combination Lamp, LH
2018-12 → —
ZVW5# —
81536D — Led, Taillamp
81536-42230 Led, Taillamp
2018-12 → —
ZVW5# —
81536E — Led, Stop Lamp
81536-42200 Led, Stop Lamp
2015-11 → 2018-12 ended
ZVW50 —
81536-42200 Led, Stop Lamp
2018-12 → —
ZVW5# —
81538B — Gasket, Rear Combination Lamp, NO.3 RH
81538-42200 Gasket, Rear Combination Lamp, NO.3 RH
2015-11 → 2018-12 ended
ZVW50 —
81538-42200 note Gasket, Rear Combination Lamp, NO.3 RH
2015-11 → 2018-12 ended
ZVW50 LHD —
81538-42200 Gasket, Rear Combination Lamp, NO.3 RH
2018-12 → —
ZVW5# —
81538C — Gasket, Rear Fog Lamp
81538-42200 note Gasket, Rear Fog Lamp
2018-12 → 2020-08 ended
ZVW50 RHD —
81538-42200 note Gasket, Rear Fog Lamp
2018-12 → 2020-11 ended
ZVW50 RHD —
81538-42200 Gasket, Rear Fog Lamp
2018-12 → —
ZVW5# —
81548B — Gasket, Rear Combination Lamp, NO.3 LH
81538-42200 note Gasket, Rear Combination Lamp, NO.3 LH
2015-11 → 2018-12 ended
ZVW50 LHD —
81538-42200 Gasket, Rear Combination Lamp, NO.3 LH
2015-11 → 2018-12 ended
ZVW50 —
81538-42200 Gasket, Rear Combination Lamp, NO.3 LH
2018-12 → —
ZVW5# —
81550L — Bulb, Rear Turn Signal Lamp
90981-15011 note Bulb, Rear Turn Signal Lamp
2015-11 → 2015-12 ended
ZVW50 —
90981-15011 note Bulb, Rear Turn Signal Lamp
2015-12 → 2016-08 ended
ZVW50 —
90981-15011 note Bulb, Rear Turn Signal Lamp
2016-08 → 2018-12 ended
ZVW50 —
90981-15011 note Bulb, Rear Turn Signal Lamp
2018-12 → 2020-08 ended
ZVW50 RHD —
90981-15011 note Bulb, Rear Turn Signal Lamp
2018-12 → 2020-11 ended
ZVW50 RHD —
90981-15011 note Bulb, Rear Turn Signal Lamp
2018-12 → —
ZVW5# —
81550N — Bulb, Back UP Lamp
90981-11059 note Bulb, Back UP Lamp
2016-08 → 2018-12 ended
ZVW50 —
90981-11059 note Bulb, Back UP Lamp
2015-12 → 2016-08 ended
ZVW50 —
90981-11059 note Bulb, Back UP Lamp
2015-11 → 2015-12 ended
ZVW50 —
90981-11059 note Bulb, Back UP Lamp
2018-12 → 2020-08 ended
ZVW50 RHD —
90981-11059 note Bulb, Back UP Lamp
2018-12 → 2020-11 ended
ZVW50 RHD —
90981-11059 note Bulb, Back UP Lamp
2018-12 → —
ZVW5# —
90981-11059 note Bulb, Back UP Lamp
2018-12 → —
ZVW50 LHD —
90981-11059 note Bulb, Back UP Lamp
2018-12 → —
ZVW50 LHD —
90981-11059 note Bulb, Back UP Lamp
2021-06 → —
ZVW50 RHD —
81551D — Lens & Body, Rear Combination Lamp, RH
81551-47280 Lens & Body, Rear Combination Lamp, RH
2015-11 → 2016-08 ended
ZVW50 —
81551-47281 Lens & Body, Rear Combination Lamp, RH
2016-08 → 2017-08 ended
ZVW50 —
81551-47282 Lens & Body, Rear Combination Lamp, RH
2017-08 → 2018-05 ended
ZVW50 —
81551-47283 Lens & Body, Rear Combination Lamp, RH
2018-05 → 2018-12 ended
ZVW50 —
81551-47470 Lens & Body, Rear Combination Lamp, RH
2018-12 → 2019-08 ended
ZVW5# LHD —
81551-47471 Lens & Body, Rear Combination Lamp, RH
2019-08 → 2020-09 ended
ZVW5# LHD —
81551-47472 note Lens & Body, Rear Combination Lamp, RH
2021-06 → —
ZVW50 RHD —
81551-47472 Lens & Body, Rear Combination Lamp, RH
2020-09 → —
ZVW5# LHD —
81551-47480 Lens & Body, Rear Combination Lamp, RH
2018-12 → 2019-08 ended
ZVW5# RHD —
81551-47480 note Lens & Body, Rear Combination Lamp, RH
2018-12 → 2019-08 ended
ZVW50 RHD —
81551-47480 note Lens & Body, Rear Combination Lamp, RH
2018-12 → 2019-08 ended
ZVW50 RHD —
81551-47481 Lens & Body, Rear Combination Lamp, RH
2019-08 → 2020-09 ended
ZVW5# RHD —
81551-47481 note Lens & Body, Rear Combination Lamp, RH
2019-08 → 2020-09 ended
ZVW50 RHD —
81551-47481 note Lens & Body, Rear Combination Lamp, RH
2019-08 → 2020-08 ended
ZVW50 RHD —
81551-47482 note Lens & Body, Rear Combination Lamp, RH
2020-09 → 2020-11 ended
ZVW50 RHD —
81551-47482 Lens & Body, Rear Combination Lamp, RH
2020-09 → —
ZVW5# RHD —
81551E — Lens & Body, Rear Combination Lamp, NO.2 RH
81457-47020 Lens & Body, Rear Combination Lamp, NO.2 RH
2018-12 → —
ZVW5# —
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-47290 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2015-11 → 2018-12 ended
ZVW50 —
81555-47470 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-12 → —
ZVW5# LHD —
81555-47470 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2021-06 → —
ZVW50 RHD —
81555-47480 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-12 → 2020-08 ended
ZVW50 RHD —
81555-47480 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-12 → 2020-11 ended
ZVW50 RHD —
81555-47480 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-12 → —
ZVW5# RHD —
81559G — Clip, RR Combination Lamp, RH
81559-47290 Clip, RR Combination Lamp, RH
2015-11 → 2016-08 ended
ZVW50 —
81559-47291 Clip, RR Combination Lamp, RH
2016-08 → 2018-12 ended
ZVW50 —
81559-47291 note Clip, RR Combination Lamp, RH
2018-12 → 2020-08 ended
ZVW50 RHD —
81559-47291 note Clip, RR Combination Lamp, RH
2018-12 → 2020-11 ended
ZVW50 RHD —
81559-47291 Clip, RR Combination Lamp, RH
2018-12 → —
ZVW5# —
81559H — Clip, RR Combination Lamp, LH
81559-47290 Clip, RR Combination Lamp, LH
2015-11 → 2016-08 ended
ZVW50 —
81559-47291 Clip, RR Combination Lamp, LH
2016-08 → 2018-12 ended
ZVW50 —
81559-47291 note Clip, RR Combination Lamp, LH
2018-12 → 2020-08 ended
ZVW50 RHD —
81559-47291 note Clip, RR Combination Lamp, LH
2018-12 → 2020-11 ended
ZVW50 RHD —
81559-47291 Clip, RR Combination Lamp, LH
2018-12 → —
ZVW5# —
81561D — Lens & Body, Rear Combination Lamp, LH
81561-47150 Lens & Body, Rear Combination Lamp, LH
2015-11 → 2016-08 ended
ZVW50 —
81561-47151 Lens & Body, Rear Combination Lamp, LH
2016-08 → 2017-08 ended
ZVW50 —
81561-47152 Lens & Body, Rear Combination Lamp, LH
2017-08 → 2018-05 ended
ZVW50 —
81561-47153 Lens & Body, Rear Combination Lamp, LH
2018-05 → 2018-12 ended
ZVW50 —
81561-47470 Lens & Body, Rear Combination Lamp, LH
2018-12 → 2019-08 ended
ZVW5# RHD —
81561-47470 note Lens & Body, Rear Combination Lamp, LH
2018-12 → 2019-08 ended
ZVW50 RHD —
81561-47470 note Lens & Body, Rear Combination Lamp, LH
2018-12 → 2019-08 ended
ZVW50 RHD —
81561-47470 note Lens & Body, Rear Combination Lamp, LH
2018-12 → 2019-08 ended
ZVW50 LHD —
81561-47470 note Lens & Body, Rear Combination Lamp, LH
2018-12 → 2019-08 ended
ZVW50 LHD —
81561-47471 note Lens & Body, Rear Combination Lamp, LH
2019-08 → 2020-08 ended
ZVW50 RHD —
81561-47471 Lens & Body, Rear Combination Lamp, LH
2019-08 → 2020-09 ended
ZVW5# RHD —
81561-47471 note Lens & Body, Rear Combination Lamp, LH
2019-08 → 2020-09 ended
ZVW50 LHD —
81561-47471 note Lens & Body, Rear Combination Lamp, LH
2019-08 → 2020-09 ended
ZVW50 LHD —
81561-47471 note Lens & Body, Rear Combination Lamp, LH
2019-08 → 2020-09 ended
ZVW50 RHD —
81561-47472 note Lens & Body, Rear Combination Lamp, LH
2020-09 → —
ZVW50 LHD —
81561-47472 note Lens & Body, Rear Combination Lamp, LH
2020-09 → —
ZVW50 LHD —
81561-47472 Lens & Body, Rear Combination Lamp, LH
2020-09 → —
ZVW5# RHD —
81561-47472 note Lens & Body, Rear Combination Lamp, LH
2020-09 → 2020-11 ended
ZVW50 RHD —
81561-47480 Lens & Body, Rear Combination Lamp, LH
2018-12 → 2019-08 ended
ZVW5# LHD —
81561-47481 Lens & Body, Rear Combination Lamp, LH
2019-08 → 2020-09 ended
ZVW5# LHD —
81561-47482 Lens & Body, Rear Combination Lamp, LH
2020-09 → —
ZVW5# LHD —
81561E — Lens & Body, Rear Combination Lamp, NO.2 LH
81456-47020 Lens & Body, Rear Combination Lamp, NO.2 LH
2018-12 → —
ZVW5# —
81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81555-47290 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2015-11 → 2018-12 ended
ZVW50 —
81555-47470 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-12 → 2020-08 ended
ZVW50 RHD —
81555-47470 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-12 → 2020-11 ended
ZVW50 RHD —
81555-47470 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-12 → —
ZVW5# RHD —
81555-47470 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-12 → —
ZVW50 LHD —
81555-47470 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-12 → —
ZVW50 LHD —
81555-47480 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-12 → —
ZVW5# LHD —
81580D — Lamp Assy, Rear, RH
81580-47070 Lamp Assy, Rear, RH
2018-12 → —
ZVW5# —
81586 — Cord, Rear Lamp
81935-47050 Cord, Rear Lamp
2018-12 → —
ZVW5# —
81590A — Lamp Assy, Rear, LH
81590-47070 Lamp Assy, Rear, LH
2018-12 → —
ZVW5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
