Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11

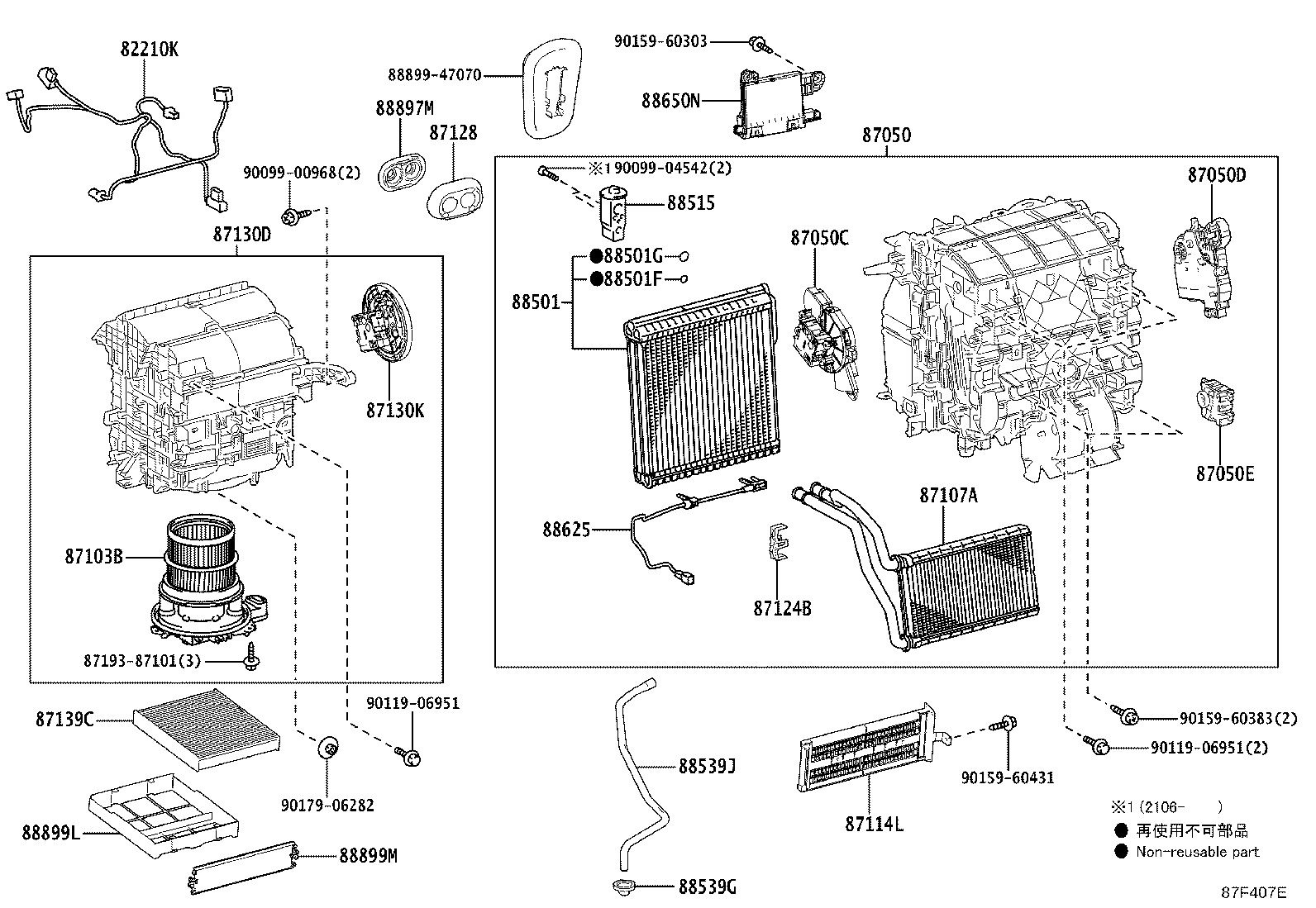

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210K — Harness Assy, Air Conditioner | ||||
| 82212-47020 |
Harness Assy, Air Conditioner
2015-11 → 2018-12
ended
|
ZVW50 RHD | — | |
| 82212-47030 |
Harness Assy, Air Conditioner
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 82212-12140 note |
Harness Assy, Air Conditioner
2021-06 → —
|
ZVW50 RHD | — | |
| 82212-47020 |
Harness Assy, Air Conditioner
2018-12 → —
|
ZVW5# RHD | — | |
| 82212-47030 |
Harness Assy, Air Conditioner
2018-12 → —
|
ZVW5# LHD | — | |
| 82212-47030 note |
Harness Assy, Air Conditioner
2020-07 → —
|
ZVW50 LHD | — | |
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-47310 note |
Radiator Assy, Air Conditioner
2015-11 → 2018-12
ended
|
ZVW50 RHD | — | |
| 87050-47320 |
Radiator Assy, Air Conditioner
2015-11 → 2017-06
ended
|
ZVW50 RHD | — | |
| 87050-47321 |
Radiator Assy, Air Conditioner
2017-07 → 2018-12
ended
|
ZVW50 RHD | — | |
| 87050-47330 note |
Radiator Assy, Air Conditioner
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87050-47330 note |
Radiator Assy, Air Conditioner
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87050-47340 note |
Radiator Assy, Air Conditioner
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87050-47350 note |
Radiator Assy, Air Conditioner
2015-11 → 2017-06
ended
|
ZVW50 LHD | — | |
| 87050-47350 |
Radiator Assy, Air Conditioner
2015-11 → 2017-06
ended
|
ZVW50 LHD | — | |
| 87050-47351 |
Radiator Assy, Air Conditioner
2017-07 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87050-47351 note |
Radiator Assy, Air Conditioner
2017-07 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87050-12C90 note |
Radiator Assy, Air Conditioner
2021-06 → —
|
ZVW50 RHD | — | |
| 87050-47300 note |
Radiator Assy, Air Conditioner
2021-06 → —
|
ZVW50 RHD | — | |
| 87050-47310 note |
Radiator Assy, Air Conditioner
2018-12 → —
|
ZVW50 RHD | — | |
| 87050-47321 |
Radiator Assy, Air Conditioner
2018-12 → —
|
ZVW5# RHD | — | |
| 87050-47330 note |
Radiator Assy, Air Conditioner
2018-12 → 2022-01
ended
|
ZVW50 LHD | — | |
| 87050-47330 note |
Radiator Assy, Air Conditioner
2018-12 → 2020-07
ended
|
ZVW50 LHD | — | |
| 87050-47330 note |
Radiator Assy, Air Conditioner
2018-12 → 2020-07
ended
|
ZVW50 LHD | — | |
| 87050-47340 note |
Radiator Assy, Air Conditioner
2018-12 → —
|
ZVW50 LHD | — | |
| 87050-47351 |
Radiator Assy, Air Conditioner
2018-12 → —
|
ZVW5# LHD | — | |
| 87050-47351 note |
Radiator Assy, Air Conditioner
2018-12 → —
|
ZVW50 LHD | — | |
| 87050C — Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 | ||||
| 87106-28230 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2015-11 → 2018-12
ended
|
ZVW50 RHD | — | |
| 87106-48240 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87106-48240 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87106-28230 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2018-12 → —
|
ZVW5# RHD | — | |
| 87106-48240 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2018-12 → —
|
ZVW5# LHD | — | |
| 87106-48240 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2020-07 → —
|
ZVW50 LHD | — | |
| 87050D — Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 | ||||
| 87106-47180 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87106-47180 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87106-48170 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 87106-48170 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87106-47180 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2021-06 → —
|
ZVW50 RHD | — | |
| 87106-47180 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2021-06 → —
|
ZVW50 RHD | — | |
| 87106-47180 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2018-12 → 2022-01
ended
|
ZVW50 LHD | — | |
| 87106-47180 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2018-12 → 2020-07
ended
|
ZVW50 LHD | — | |
| 87106-47180 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2018-12 → 2020-07
ended
|
ZVW50 LHD | — | |
| 87106-48170 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2018-12 → —
|
ZVW5# | — | |
| 87106-48170 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2018-12 → —
|
ZVW50 LHD | — | |
| 87050E — Damper Servo Sub-assy, Air Conditioner Radiator, NO.3 | ||||
| 87106-47190 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2015-11 → 2018-12
ended
|
ZVW50 RHD | — | |
| 87106-47200 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87106-47200 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87106-47190 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2018-12 → —
|
ZVW5# RHD | — | |
| 87106-47200 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2018-12 → —
|
ZVW5# LHD | — | |
| 87106-47200 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2020-07 → —
|
ZVW50 LHD | — | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-58070 |
Motor Sub-assy, Blower W/Fan
2015-11 → 2018-12
ended
|
ZVW50 RHD | — | |
| 87103-58080 note |
Motor Sub-assy, Blower W/Fan
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87103-58080 |
Motor Sub-assy, Blower W/Fan
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87103-42120 |
Motor Sub-assy, Blower W/Fan
2020-07 → —
|
ZVW5# LHD | — | |
| 87103-42120 note |
Motor Sub-assy, Blower W/Fan
2020-07 → —
|
ZVW50 LHD | — | |
| 87103-42130 |
Motor Sub-assy, Blower W/Fan
2020-07 → —
|
ZVW5# RHD | — | |
| 87103-58070 |
Motor Sub-assy, Blower W/Fan
2018-12 → 2020-07
ended
|
ZVW5# RHD | — | |
| 87103-58080 |
Motor Sub-assy, Blower W/Fan
2018-12 → 2020-07
ended
|
ZVW5# LHD | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-47070 |
Unit Sub-assy, Heater Radiator
2015-11 → 2018-12
ended
|
ZVW50 RHD | — | |
| 87107-47080 |
Unit Sub-assy, Heater Radiator
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87107-47080 note |
Unit Sub-assy, Heater Radiator
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87107-47070 |
Unit Sub-assy, Heater Radiator
2018-12 → —
|
ZVW5# RHD | — | |
| 87107-47080 note |
Unit Sub-assy, Heater Radiator
2020-07 → —
|
ZVW50 LHD | — | |
| 87107-47080 |
Unit Sub-assy, Heater Radiator
2018-12 → —
|
ZVW5# LHD | — | |
| 87114L — Cover, Heater, NO.2 | ||||
| 87114-47020 |
Cover, Heater, NO.2
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 87114-48140 note |
Cover, Heater, NO.2
2015-11 → 2017-11
ended
|
ZVW50 LHD | — | |
| 87114-48140 note |
Cover, Heater, NO.2
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87114-47020 |
Cover, Heater, NO.2
2018-12 → —
|
ZVW5# | — | |
| 87114-48140 note |
Cover, Heater, NO.2
2018-12 → —
|
ZVW50 LHD | — | |
| 87124B — Clamp, Heater | ||||
| 87124-33070 |
Clamp, Heater
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 87124-33070 note |
Clamp, Heater
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87124-33070 note |
Clamp, Heater
2020-07 → —
|
ZVW50 LHD | — | |
| 87124-33070 |
Clamp, Heater
2018-12 → —
|
ZVW5# | — | |
| 87128 — Grommet, Heater | ||||
| 87128-28020 |
Grommet, Heater
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 87128-28020 |
Grommet, Heater
2018-12 → —
|
ZVW5# | — | |
| 87128-28020 note |
Grommet, Heater
2020-07 → —
|
ZVW50 LHD | — | |
| 87130D — Blower Assy | ||||
| 87130-47290 |
Blower Assy
2017-06 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87130-47300 |
Blower Assy
2017-06 → 2018-12
ended
|
ZVW50 RHD | — | |
| 87130-58091 |
Blower Assy
2015-11 → 2017-05
ended
|
ZVW50 RHD | — | |
| 87130-58101 |
Blower Assy
2015-11 → 2017-05
ended
|
ZVW50 LHD | — | |
| 87130-58101 note |
Blower Assy
2015-11 → 2017-05
ended
|
ZVW50 LHD | — | |
| 87130-42470 note |
Blower Assy
2020-07 → —
|
ZVW50 LHD | — | |
| 87130-42470 |
Blower Assy
2020-07 → —
|
ZVW5# LHD | — | |
| 87130-42480 |
Blower Assy
2020-07 → —
|
ZVW5# RHD | — | |
| 87130-47290 |
Blower Assy
2018-12 → 2020-07
ended
|
ZVW5# LHD | — | |
| 87130-47300 |
Blower Assy
2018-12 → 2020-07
ended
|
ZVW5# RHD | — | |
| 87130K — Damper Servo Sub-assy, Blower, NO.1 | ||||
| 87106-28250 |
Damper Servo Sub-assy, Blower, NO.1
2015-11 → 2018-12
ended
|
ZVW50 RHD | — | |
| 87106-58050 |
Damper Servo Sub-assy, Blower, NO.1
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87106-58050 note |
Damper Servo Sub-assy, Blower, NO.1
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 87106-28250 |
Damper Servo Sub-assy, Blower, NO.1
2018-12 → —
|
ZVW5# RHD | — | |
| 87106-58050 |
Damper Servo Sub-assy, Blower, NO.1
2018-12 → —
|
ZVW5# LHD | — | |
| 87106-58050 note |
Damper Servo Sub-assy, Blower, NO.1
2020-07 → —
|
ZVW50 LHD | — | |
| 87139C — Filter, Clean Air | ||||
| 87139-28020 note |
Filter, Clean Air
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 87139-58010 note |
Filter, Clean Air
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 87139-28020 note |
Filter, Clean Air
2018-12 → —
|
ZVW5# | — | |
| 87139-58010 note |
Filter, Clean Air
2018-12 → —
|
ZVW5# | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-47090 note |
Evaporator Sub-assy, Cooler, NO.1
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 88501-47090 note |
Evaporator Sub-assy, Cooler, NO.1
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88501-47090 note |
Evaporator Sub-assy, Cooler, NO.1
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88501-47100 |
Evaporator Sub-assy, Cooler, NO.1
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 88501-47100 note |
Evaporator Sub-assy, Cooler, NO.1
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88501-47090 note |
Evaporator Sub-assy, Cooler, NO.1
2018-12 → —
|
ZVW50 | — | |
| 88501-47090 note |
Evaporator Sub-assy, Cooler, NO.1
2021-06 → —
|
ZVW50 RHD | — | |
| 88501-47090 note |
Evaporator Sub-assy, Cooler, NO.1
2018-12 → 2022-01
ended
|
ZVW50 LHD | — | |
| 88501-47090 note |
Evaporator Sub-assy, Cooler, NO.1
2018-12 → 2020-07
ended
|
ZVW50 LHD | — | |
| 88501-47090 note |
Evaporator Sub-assy, Cooler, NO.1
2018-12 → 2020-07
ended
|
ZVW50 LHD | — | |
| 88501-47100 |
Evaporator Sub-assy, Cooler, NO.1
2018-12 → —
|
ZVW5# | — | |
| 88501-47100 note |
Evaporator Sub-assy, Cooler, NO.1
2018-12 → —
|
ZVW50 LHD | — | |
| 88501F — O-ring, Cooler Evaporator NO.1(DISCHARGE) | ||||
| 90099-14120 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 90099-14120 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 90099-14120 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2018-12 → —
|
ZVW5# | — | |
| 90099-14120 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2020-07 → —
|
ZVW50 LHD | — | |
| 88501G — O-ring, Cooler Evaporator NO.1(SUCTION) | ||||
| 90099-14121 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2020-07 → —
|
ZVW50 LHD | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2018-12 → —
|
ZVW5# | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-30800 note |
Valve, Cooler Expansion
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 88515-30800 note |
Valve, Cooler Expansion
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88515-30800 note |
Valve, Cooler Expansion
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88515-47070 |
Valve, Cooler Expansion
2015-11 → 2017-06
ended
|
ZVW50 | — | |
| 88515-47070 note |
Valve, Cooler Expansion
2015-11 → 2017-06
ended
|
ZVW50 LHD | — | |
| 88515-50320 |
Valve, Cooler Expansion
2017-07 → 2018-12
ended
|
ZVW50 | — | |
| 88515-50320 note |
Valve, Cooler Expansion
2017-07 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88515-30800 note |
Valve, Cooler Expansion
2018-12 → —
|
ZVW50 | — | |
| 88515-30800 note |
Valve, Cooler Expansion
2021-06 → —
|
ZVW50 RHD | — | |
| 88515-30800 note |
Valve, Cooler Expansion
2018-12 → 2020-07
ended
|
ZVW50 LHD | — | |
| 88515-30800 note |
Valve, Cooler Expansion
2018-12 → 2020-07
ended
|
ZVW50 LHD | — | |
| 88515-30800 note |
Valve, Cooler Expansion
2018-12 → 2022-01
ended
|
ZVW50 LHD | — | |
| 88515-50320 |
Valve, Cooler Expansion
2018-12 → —
|
ZVW5# | — | |
| 88515-50320 note |
Valve, Cooler Expansion
2018-12 → —
|
ZVW50 LHD | — | |
| 88539G — Grommet (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
Grommet (FOR COOLER UNIT DRAIN HOSE)
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 88888-47010 |
Grommet (FOR COOLER UNIT DRAIN HOSE)
2018-12 → —
|
ZVW5# | — | |
| 88539J — Hose, Drain Cooler | ||||
| 88539-47050 |
Hose, Drain Cooler
2015-11 → 2018-12
ended
|
ZVW50 RHD | — | |
| 88539-47060 |
Hose, Drain Cooler
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88539-47050 |
Hose, Drain Cooler
2018-12 → —
|
ZVW5# RHD | — | |
| 88539-47060 |
Hose, Drain Cooler
2018-12 → —
|
ZVW5# LHD | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88620-28060 |
Thermistor, Cooler, NO.1
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 88620-28060 note |
Thermistor, Cooler, NO.1
2015-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88620-28060 |
Thermistor, Cooler, NO.1
2018-12 → —
|
ZVW5# | — | |
| 88620-28060 note |
Thermistor, Cooler, NO.1
2020-07 → —
|
ZVW50 LHD | — | |
| 88650N — Amplifier Assy, Air Conditioner | ||||
| 88650-47350 |
Amplifier Assy, Air Conditioner
2016-08 → 2017-01
ended
|
ZVW50 | — | |
| 88650-47351 |
Amplifier Assy, Air Conditioner
2017-02 → 2017-10
ended
|
ZVW50 | — | |
| 88650-47360 note |
Amplifier Assy, Air Conditioner
2016-08 → 2017-01
ended
|
ZVW50 | — | |
| 88650-47360 note |
Amplifier Assy, Air Conditioner
2016-08 → 2017-01
ended
|
ZVW50 LHD | — | |
| 88650-47360 note |
Amplifier Assy, Air Conditioner
2016-08 → 2017-01
ended
|
ZVW50 LHD | — | |
| 88650-47361 note |
Amplifier Assy, Air Conditioner
2017-02 → 2017-10
ended
|
ZVW50 LHD | — | |
| 88650-47361 note |
Amplifier Assy, Air Conditioner
2017-02 → 2017-10
ended
|
ZVW50 LHD | — | |
| 88650-47361 note |
Amplifier Assy, Air Conditioner
2017-02 → 2017-10
ended
|
ZVW50 | — | |
| 88650-47490 |
Amplifier Assy, Air Conditioner
2015-11 → 2016-07
ended
|
ZVW50 | — | |
| 88650-47510 note |
Amplifier Assy, Air Conditioner
2015-11 → 2016-07
ended
|
ZVW50 LHD | — | |
| 88650-47510 note |
Amplifier Assy, Air Conditioner
2015-11 → 2016-07
ended
|
ZVW50 LHD | — | |
| 88650-47510 note |
Amplifier Assy, Air Conditioner
2015-11 → 2016-07
ended
|
ZVW50 | — | |
| 88650-47520 |
Amplifier Assy, Air Conditioner
2017-11 → 2018-12
ended
|
ZVW50 | — | |
| 88650-47530 note |
Amplifier Assy, Air Conditioner
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88650-47530 note |
Amplifier Assy, Air Conditioner
2017-11 → 2018-12
ended
|
ZVW50 | — | |
| 88650-47530 note |
Amplifier Assy, Air Conditioner
2017-11 → 2018-12
ended
|
ZVW50 LHD | — | |
| 88650-47580 |
Amplifier Assy, Air Conditioner
2018-12 → 2020-07
ended
|
ZVW5# | — | |
| 88650-47670 |
Amplifier Assy, Air Conditioner
2020-07 → 2021-06
ended
|
ZVW5# | — | |
| 88650-47770 |
Amplifier Assy, Air Conditioner
2021-06 → —
|
ZVW5# | — | |
| 88897M — Grommet (FOR HEATER PIPE) | ||||
| 87128-28010 |
Grommet (FOR HEATER PIPE)
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 87128-28010 |
Grommet (FOR HEATER PIPE)
2018-12 → —
|
ZVW5# | — | |
| 88899L — Parts, Cooling Unit | ||||
| 88899-47090 |
Parts, Cooling Unit
2015-11 → 2018-12
ended
|
ZVW50 | — | |
| 88899-47090 |
Parts, Cooling Unit
2018-12 → —
|
ZVW5# | — | |
| 88899M — Plate, Cover(FOR AIR FILTER) | ||||
| 88899-28620 |
Plate, Cover(FOR AIR FILTER)
2015-11 → 2017-06
ended
|
ZVW50 | — | |
| 88899-47120 |
Plate, Cover(FOR AIR FILTER)
2017-07 → 2018-12
ended
|
ZVW50 | — | |
| 88899-47120 |
Plate, Cover(FOR AIR FILTER)
2018-12 → —
|
ZVW5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
