Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11

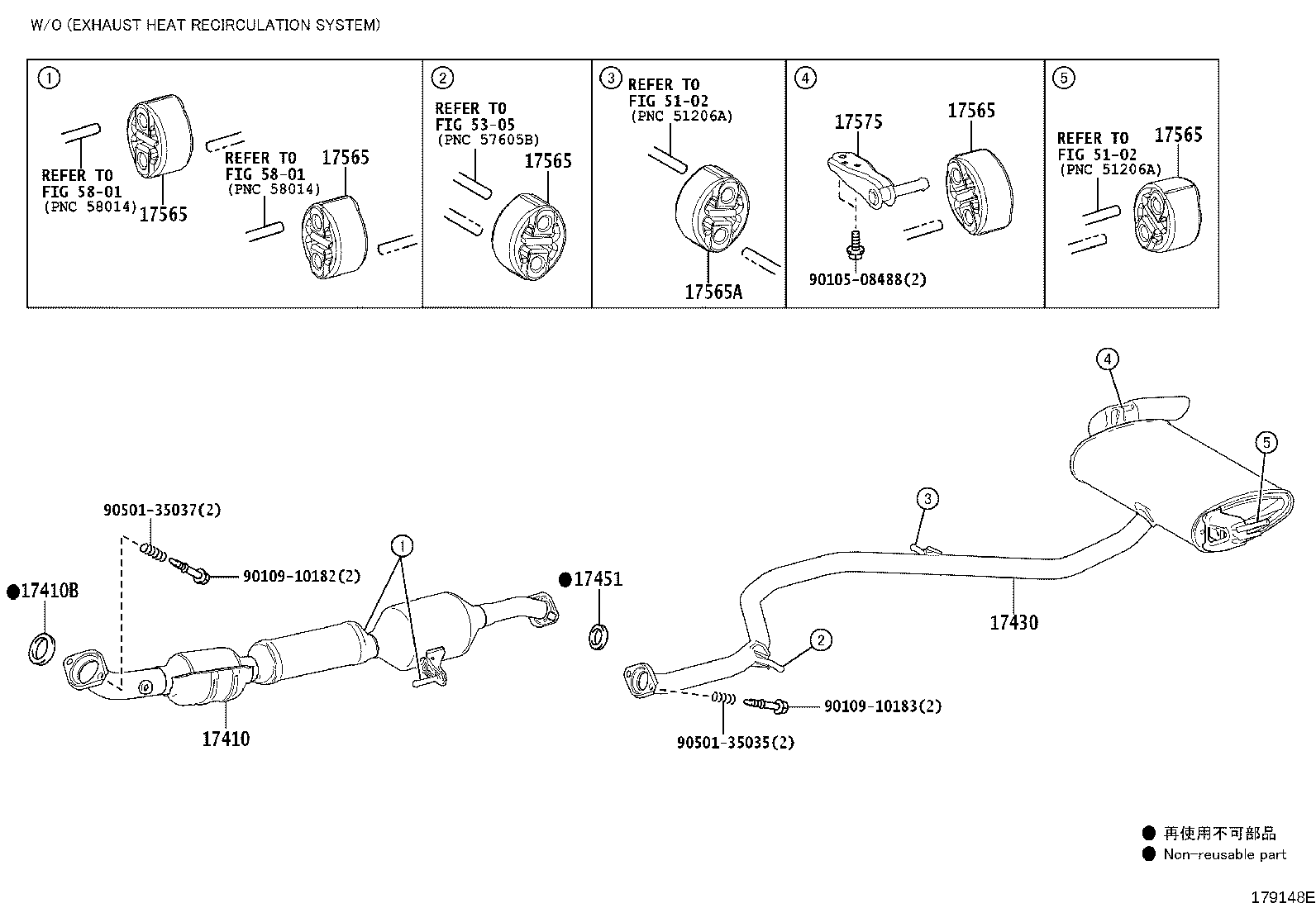

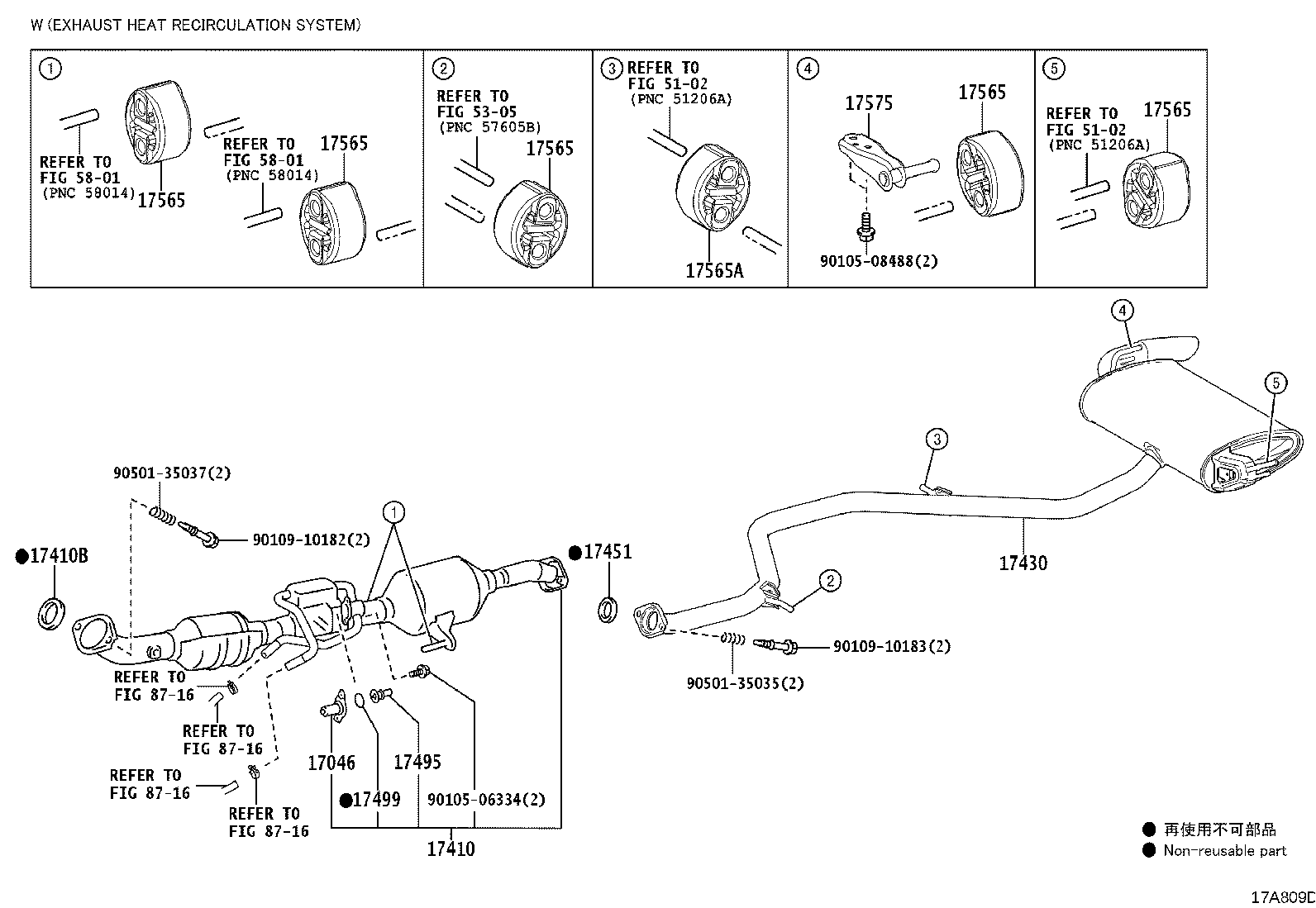

Exhaust Pipe
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17046 | Actuator Sub-assy, Exhaust Pipe Gas Control |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17495 | Actuator, Exhaust Pipe Gas Control |
| 17499 | Gasket, Exhaust Pipe Gas Control Actuator |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
