Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

8 part groups · 2 illustrations

Illustrations

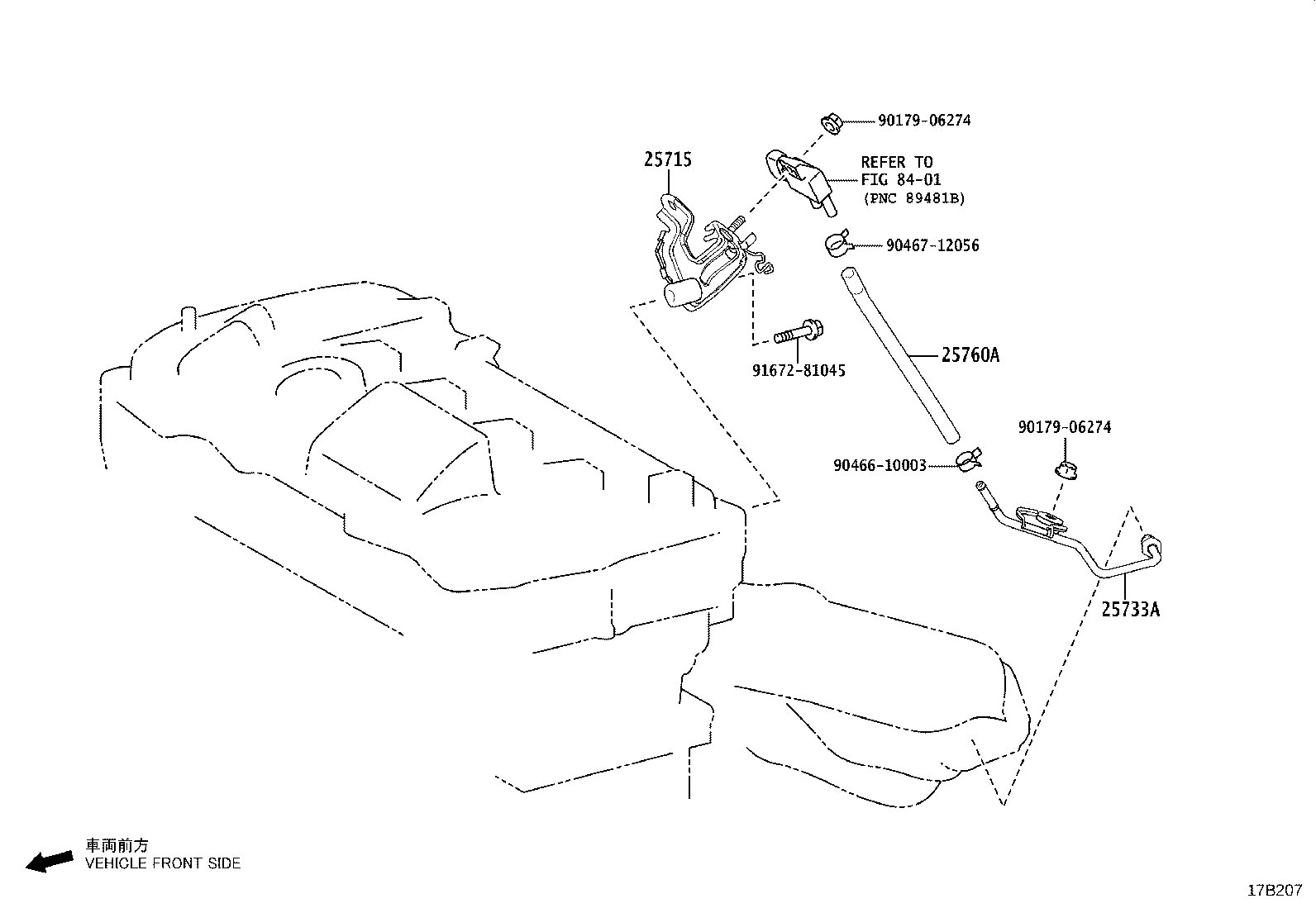

Figure 179149A 179149A 2015-11 → — Figure 17B207 17B207 2020-03 → —

Part groups

PNCDescription
17650G Valve, Duty Vacuum Switching
23818 Pipe, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
25715 Bracket, Emission Control Valve
25733A Pipe, Vacuum, NO.1
25760A Hose Assy, Vacuum Transmitting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
