Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11
Parking Brake & Cable

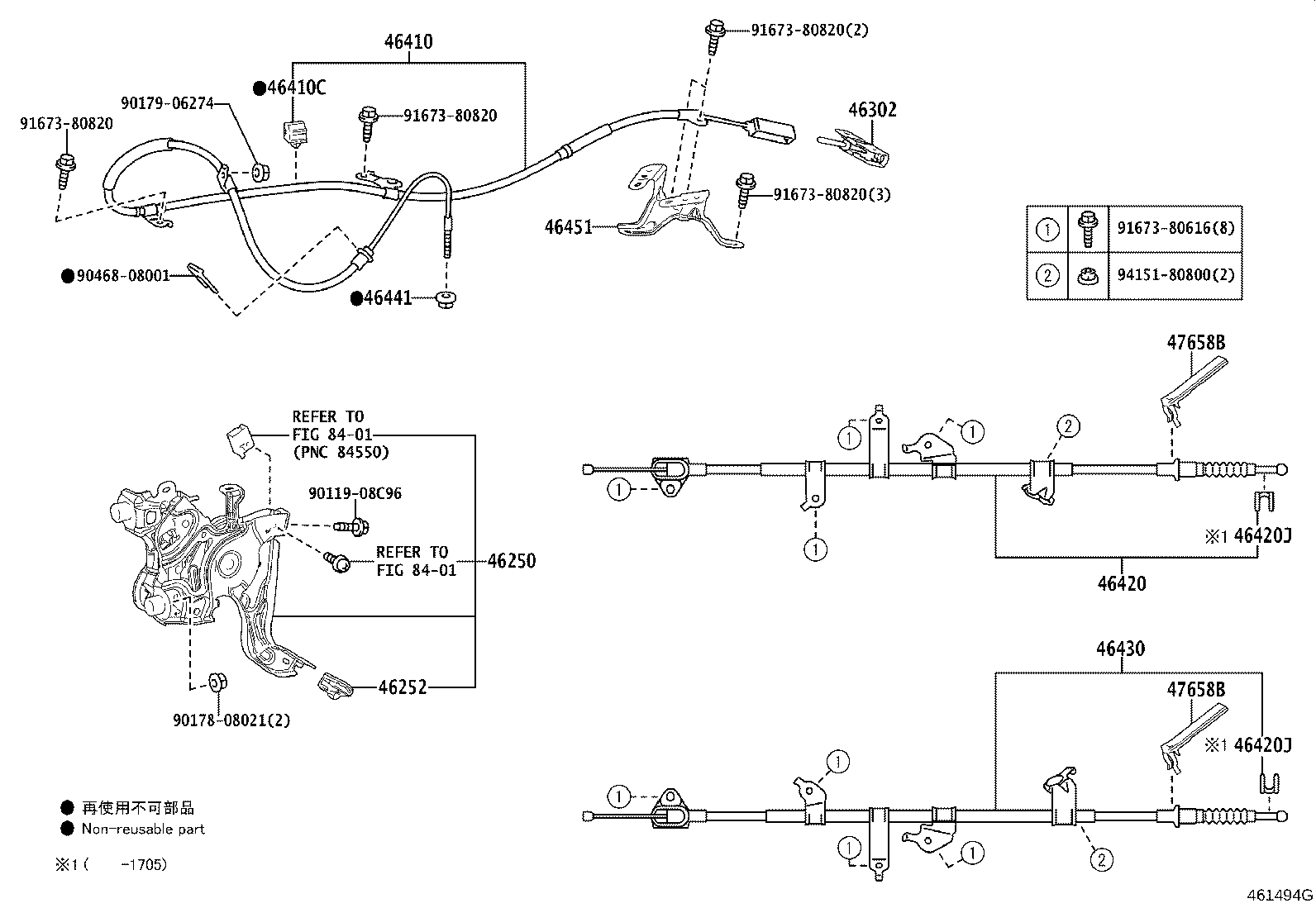

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46250 | Pedal Assy, Parking Brake W/O Cable |
| 46252 | Pad, Parking Pedal |
| 46302 | Rod Sub-assy, Parking Brake Pull, NO.1 |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46410C | Clamp(FOR PARKING BRAKE FRONT CABLE) |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420J | Clamp, NO.3(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46451 | Bracket, Cable Support |
| 47658B | Protector, Parking Brake Lever |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
