Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

15 part groups · 2 illustrations

Illustrations

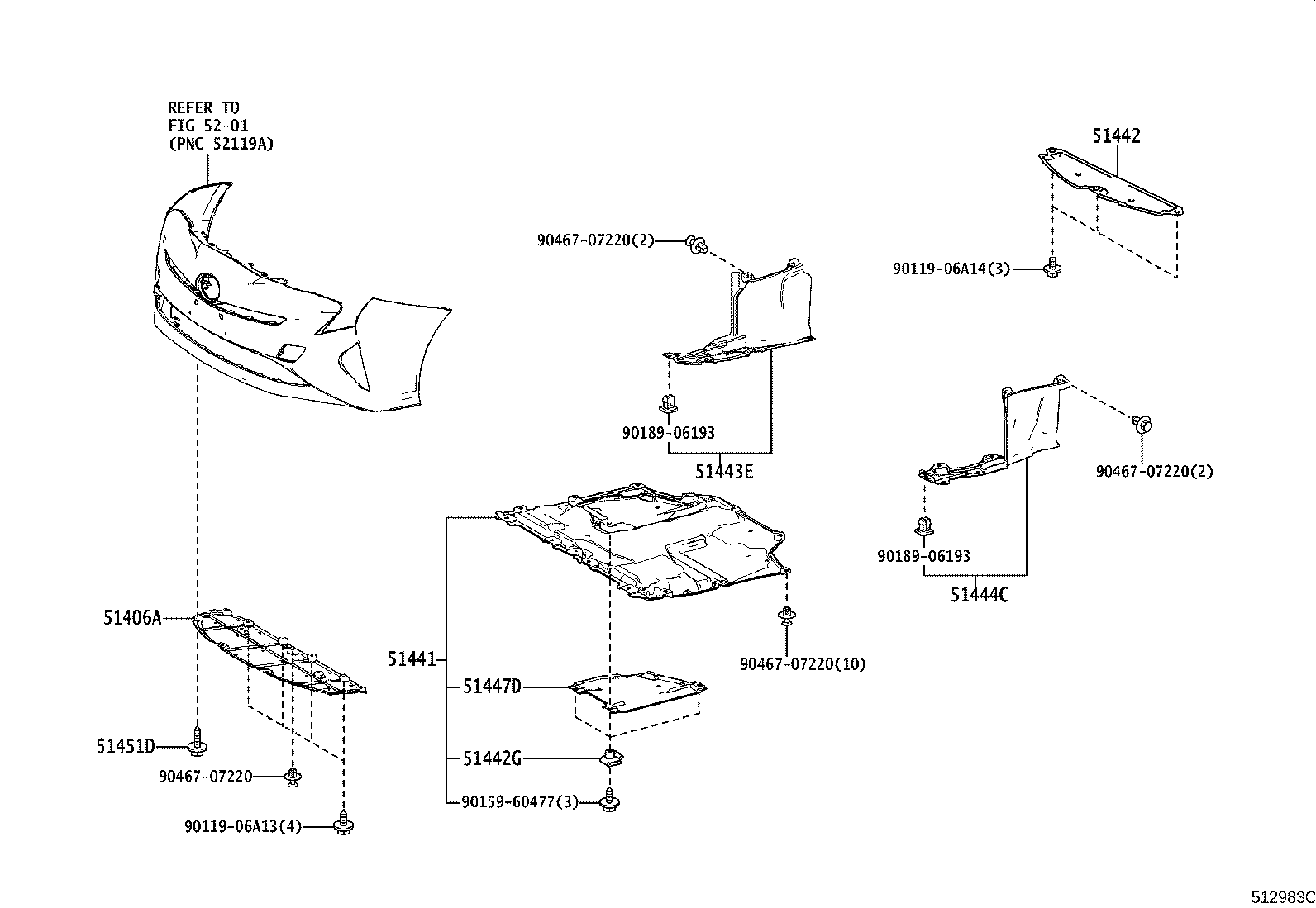

Figure 512982 512982 2015-11 → — Figure 512983C 512983C 2015-11 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51228 Plate, Suspension Member Set
51284 Cover, Rear Suspension Member Hole
51406A Cover Sub-assy, Engine Under, NO.2
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51442G Clip, Engine Under Cover, NO.1
51443E Cover, Motor Under, Rear RH
51444C Cover, Motor Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
51451D Screw, NO.1
51618 Guard, Front Differential Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
