Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11

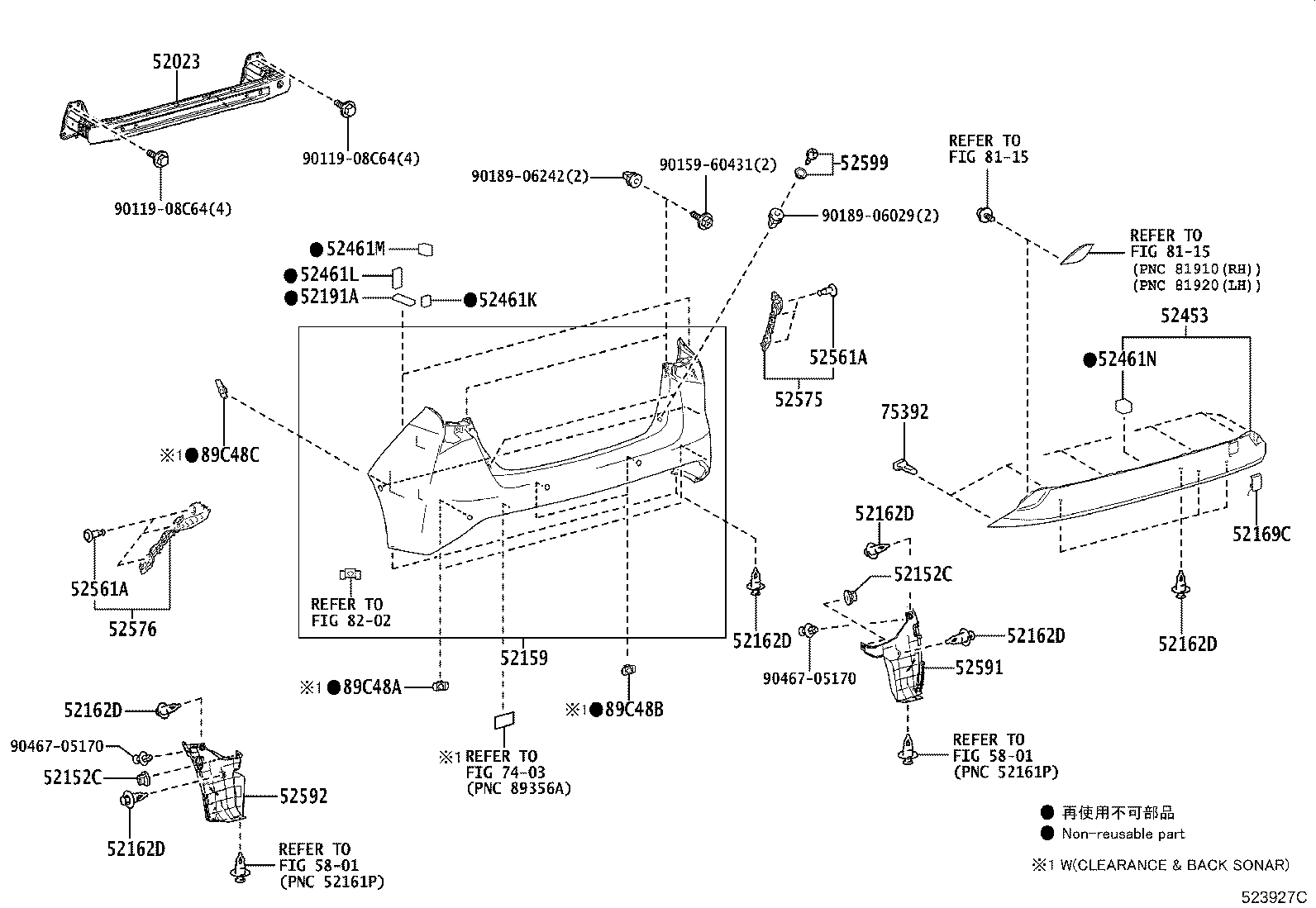

Rear Bumper & Bumper Stay
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52152C | Clip, Rear Bumper Side |
| 52159 | Cover, Rear Bumper |
| 52162D | Piece, Rear Bumper |
| 52169C | Cover, Rear Bumper, Lower |
| 52191A | Seal, Rear Bumper Arm |
| 52453 | Guard, Rear Bumper, Center |
| 52461 | Pad, Rear Bumper, Center |
| 52461K | Pad, Rear Bumper, NO.1 |
| 52461L | Pad, Rear Bumper, NO.2 |
| 52461M | Pad, Rear Bumper, NO.3 |
| 52461N | Pad, Rear Bumper, NO.4 |
| 52561A | Clip(FOR REAR BUMPER RETAINER) |
| 52565 | Filler, Rear Bumper Extension, RH |
| 52566 | Filler, Rear Bumper Extension, LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52599 | Stopper, Rear Bumper, Upper |
| 75392 | Retainer, Outside Moulding |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
| 89C48C | Retainer, Ultrasonic Sensor, Rear Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
