Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

28 part groups · 3 illustrations

Illustrations

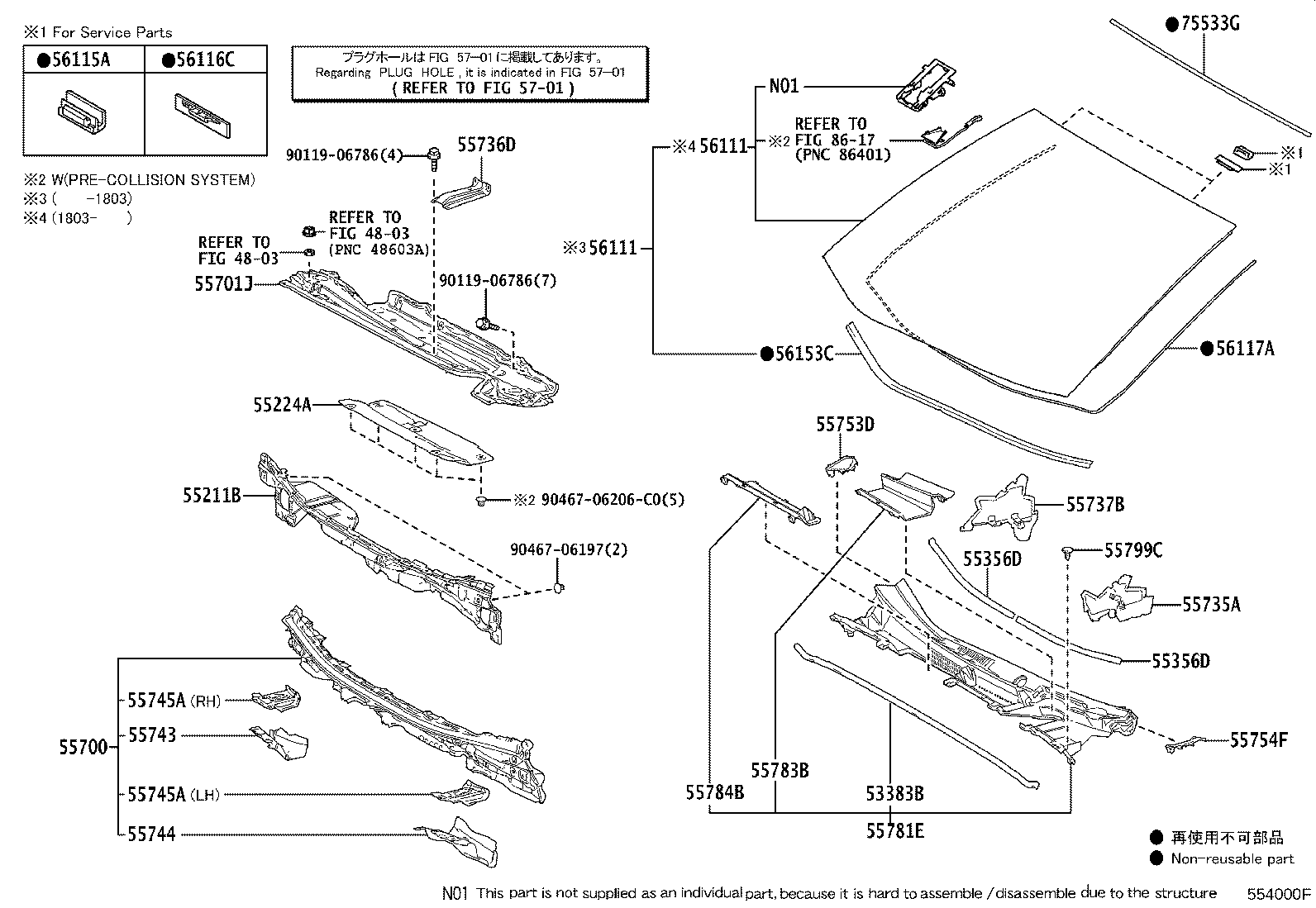

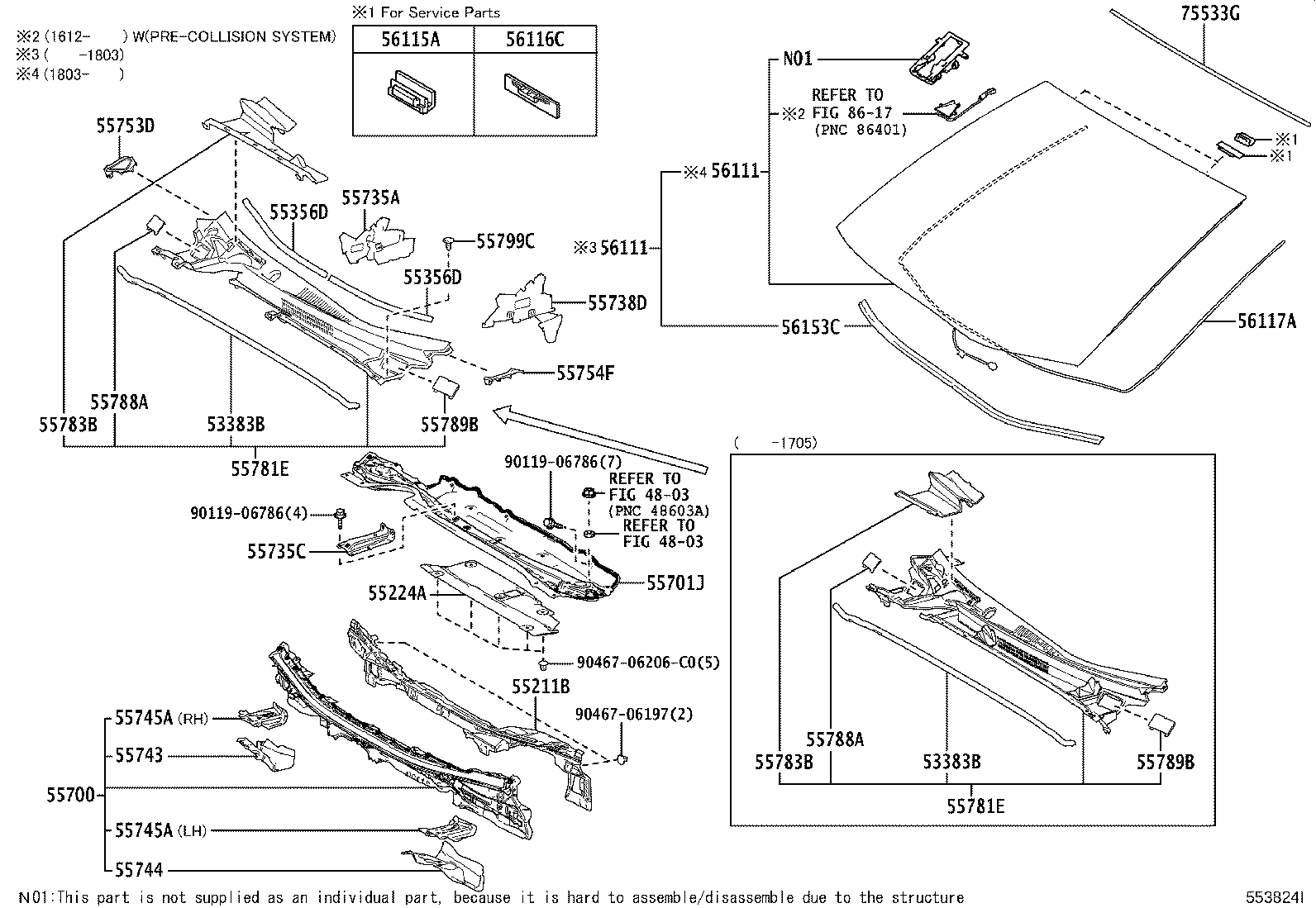

Figure 553915E 553915E 2015-11 → 2018-01 Figure 554000F 554000F 2018-01 → — Figure 553824I 553824I 2015-11 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55211B Silencer, Front Panel
55224A Insulator, Dash Panel, Outer NO.2
55356D Cushion, Instrument Panel, NO.2
55700 Panel Assy, Front
55701J Panel Sub-assy, Cowl Top, Outer
55735A Plate, Water Guard, LH
55735C Reinforcement, Cowl Body Mounting, RH
55736D Reinforcement, Cowl Body Mounting, LH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55738D Seal, Heater Air Duct Splash Shield, NO.2
55743 Panel, Cowl Top Outside Corner, RH
55744 Panel, Cowl Top Outside Corner, LH
55745A Reinforcement, Cowl Top, Inner
55753D Shield, Cowl Water Extract, RH
55754F Shield, Cowl Water Extract, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55783B Louver, Cowl Top Ventilator, Center NO.1
55784B Louver, Cowl Top Ventilator, Center NO.2
55788A Protector, Cowl Top Ventilator Louver
55789B Protector, Cowl Top Venttinator Louver, NO.2
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56153C Moulding, Front Window, Inner Center
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
