Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11

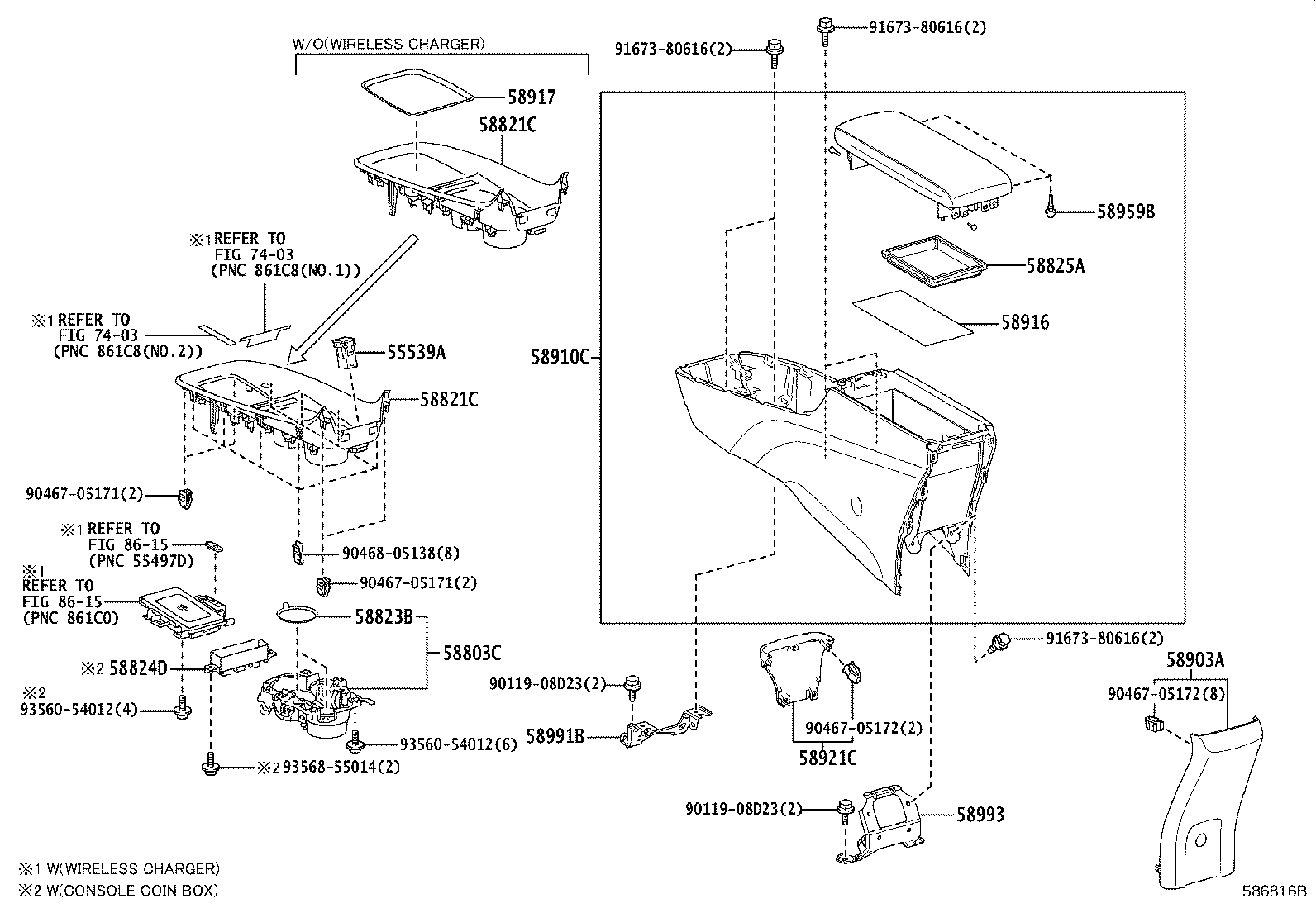

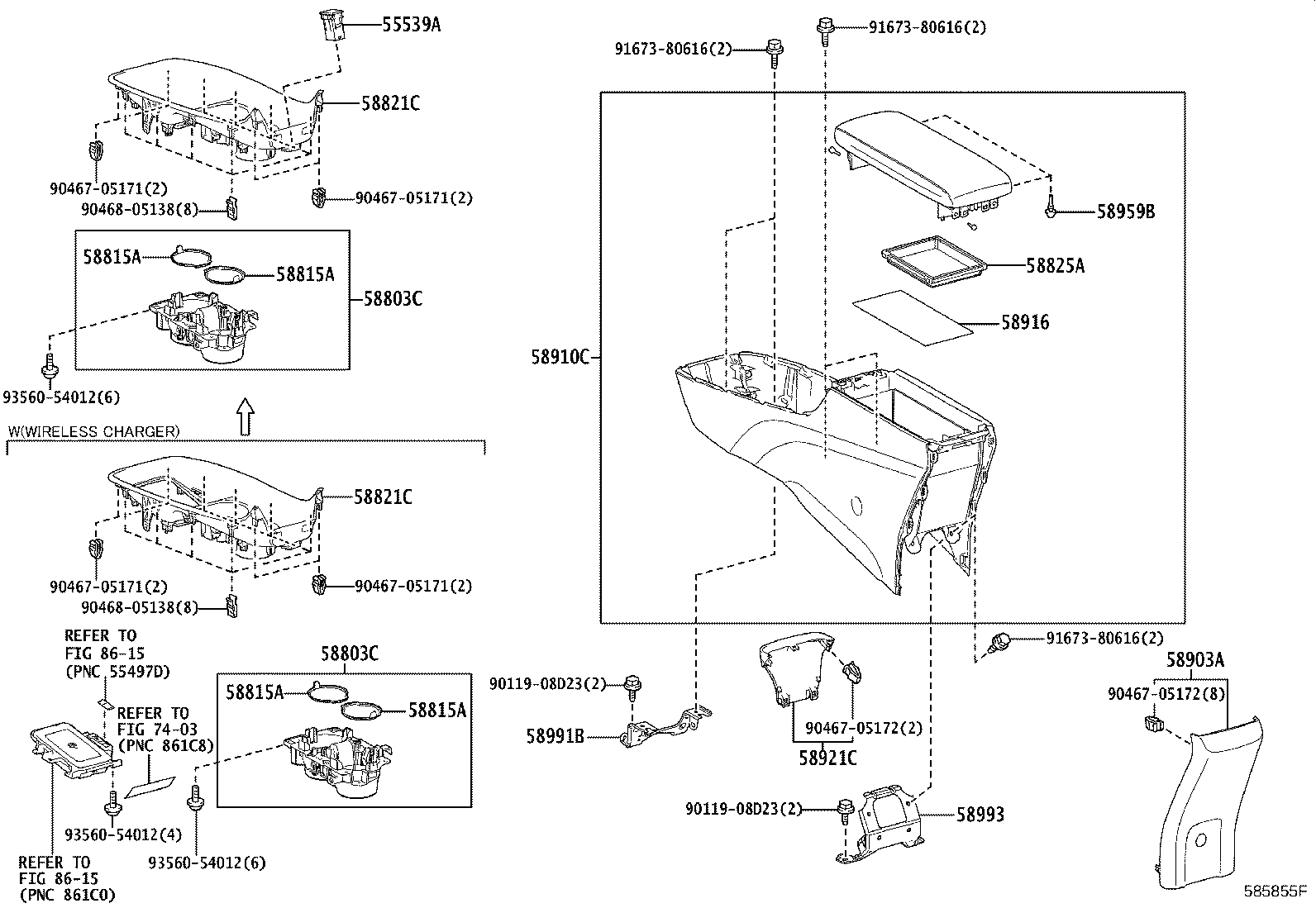

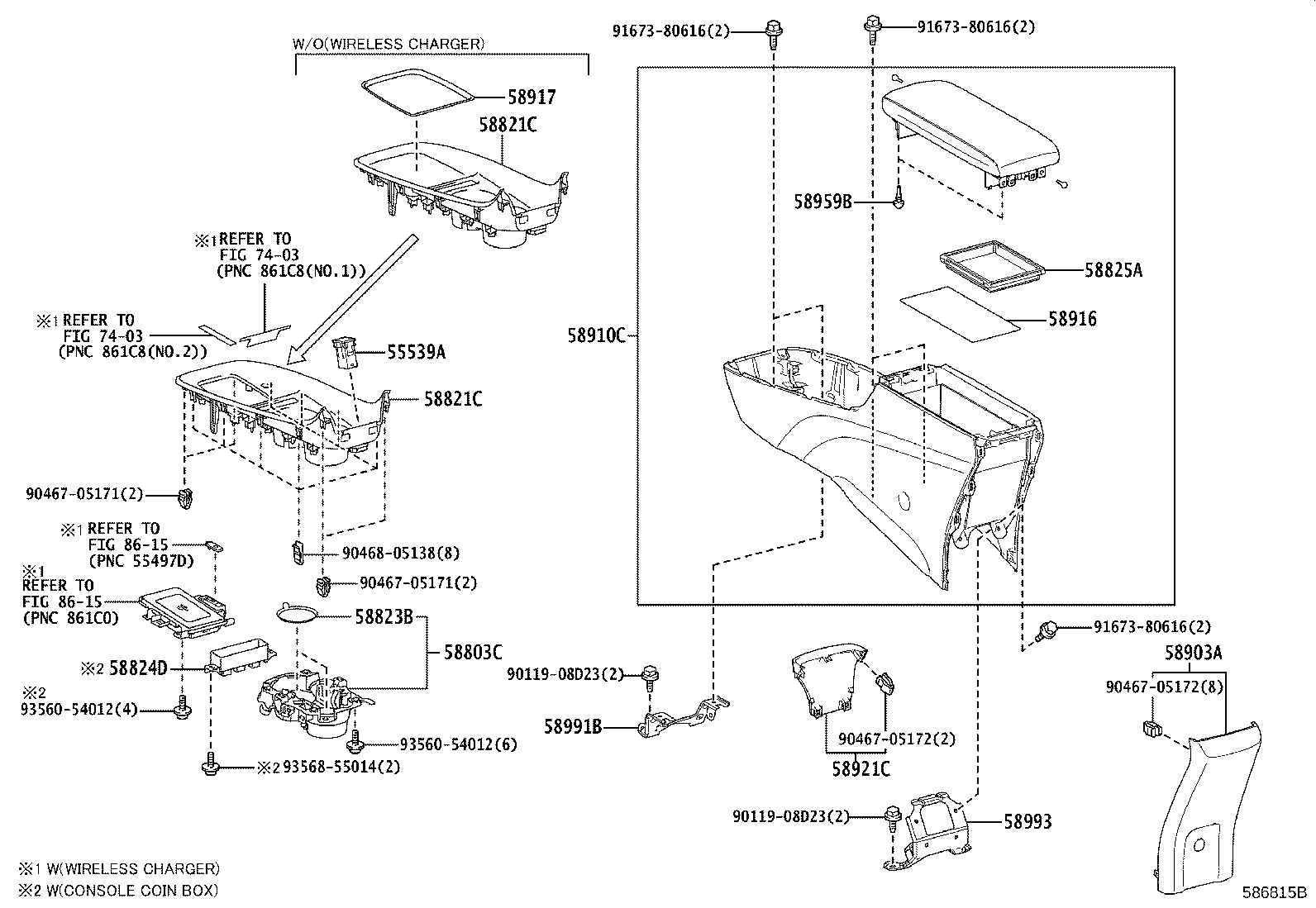

Console Box & Bracket
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 58803C | Box Sub-assy, Console Cup Holder |
| 58815A | Carpet, Console Box |
| 58821C | Panel, Console, Upper |
| 58823B | Box, Console Compartment |
| 58824D | Box, Console Coin |
| 58825A | Pocket, Console Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58910C | Box Assy, Console, Rear |
| 58916 | Mat, Box Bottom |
| 58917 | Mat, Box Bottom, NO.2 |
| 58921C | Plate, Box, Upper NO.1 |
| 58959B | Cushion, Console Compartment Door |
| 58991B | Bracket, Console Box Mounting, Front |
| 58993 | Bracket, Console Box Mounting, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
