Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

78 part groups · 3 illustrations

Illustrations

615441A 2015-11 → —

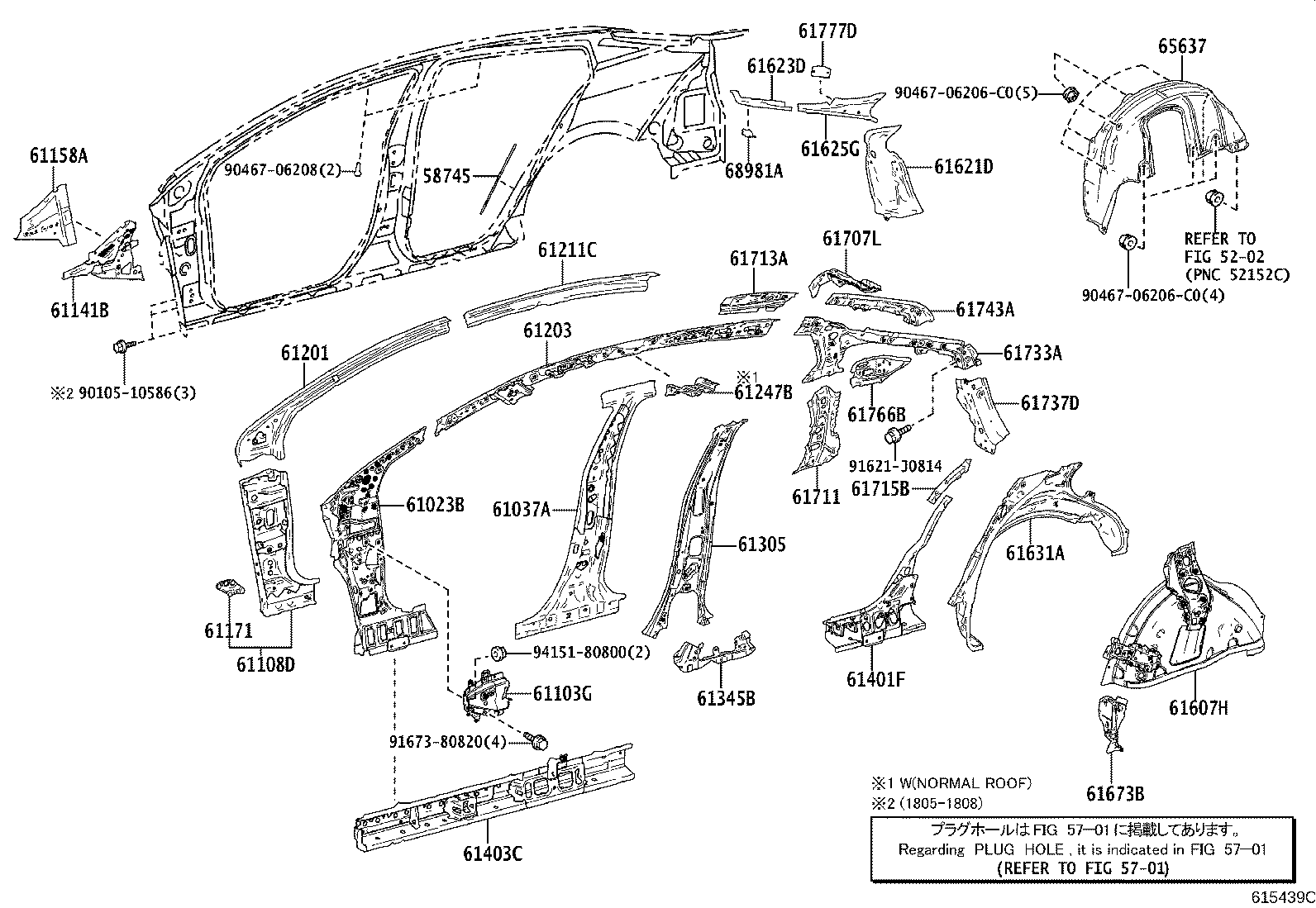

615439C 2015-11 → —

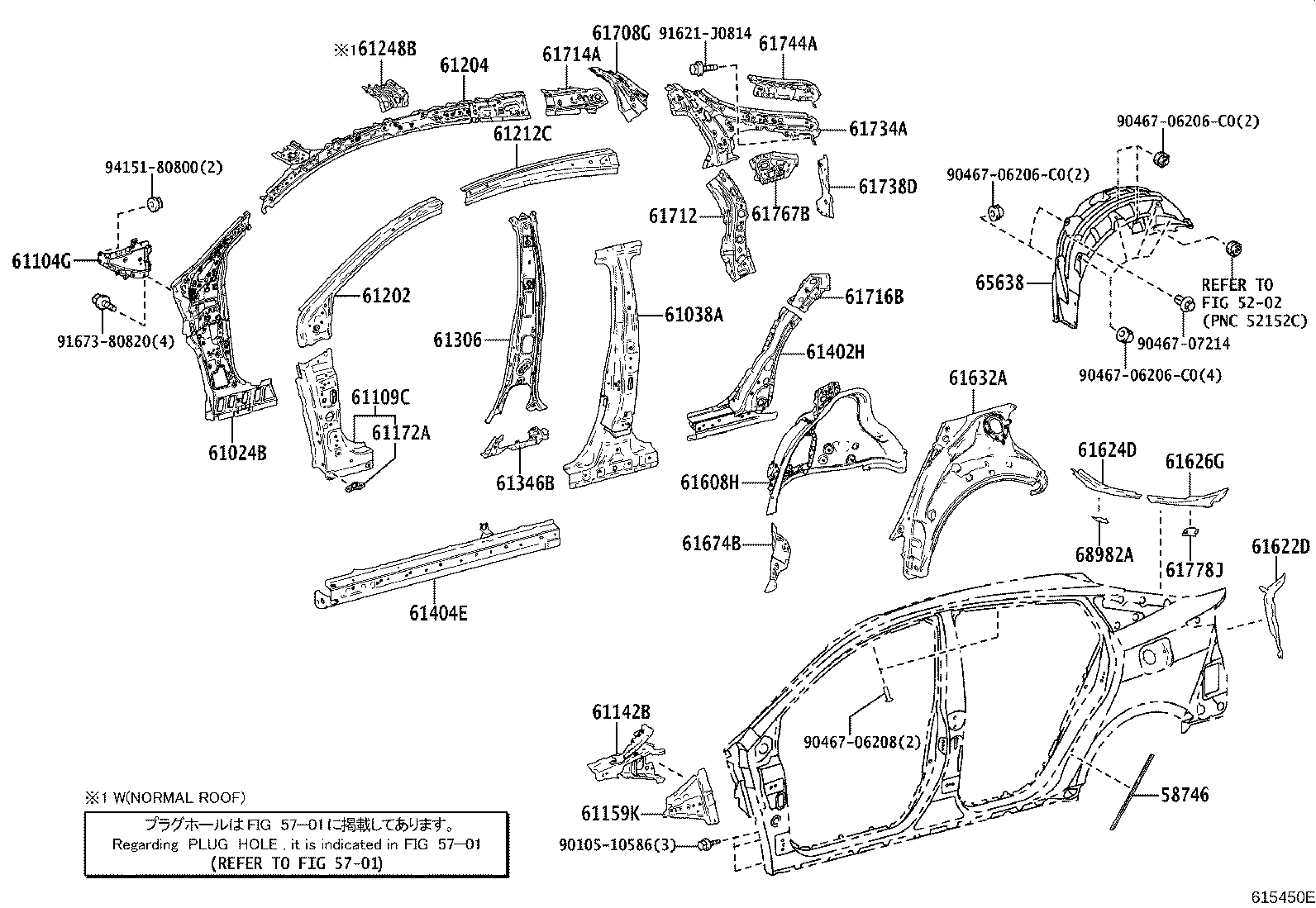

615450E 2015-11 → —

Part groups

PNC	Description
55168	Bracket, Front Fender Mounting, RH
55169A	Bracket, Front Fender Mounting, LH
58745	Protector, Quarter Panel, Front RH
58746	Protector, Quarter Panel, Front LH
61017A	Member Sub-assy, Side, Rear RH
61018A	Member Sub-assy, Side, Rear LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61103G	Gusset Sub-assy, Front Body Pillar, Lower RH
61104G	Gusset Sub-assy, Front Body Pillar, Lower LH
61108D	Reinforcement Sub-assy, Front Pillar, Lower RH
61109C	Reinforcement Sub-assy, Front Pillar, Lower LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61141B	Gusset, Front Body Pillar, Upper RH
61142B	Gusset, Front Body Pillar, Upper LH
61158A	Extension, Front Piller, Lower RH
61159K	Extension, Front Piller, Lower LH
61171	Retainer, Front Pillar, Lower Inner RH
61172A	Retainer, Front Pillar, Lower Inner LH
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61211C	Rail, Roof Side, RH
61212C	Rail, Roof Side, LH
61247B	Reinforcement, Roof Side Rail, Inner RH
61248B	Reinforcement, Roof Side Rail, Inner LH
61305	Reinforce Sub-assy, Center Body Pillar, Lower RH
61306	Reinforce Sub-assy, Center Body Pillar, Lower LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61345B	Pillar, Center Body, Inner Lower RH
61346B	Pillar, Center Body, Inner Lower LH
61401F	Reinforcement Sub-assy, Rocker Panel, RH
61402H	Reinforcement Sub-assy, Rocker Panel, LH
61403C	Reinforce Sub-assy, Rocker, Outer RH
61404E	Reinforce Sub-assy, Rocker, Outer LH
61601B	Panel Sub-assy, Quarter, RH
61602C	Panel Sub-assy, Quarter, LH
61607H	Panel Sub-assy, Quarter Wheel House, Inner RH
61608H	Panel Sub-assy, Quarter Wheel House, Inner LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61623D	Extension, Quarter Panel, Front RH
61624D	Extension, Quarter Panel, Front LH
61625G	Extension, Quarter Panel, Rear RH
61626G	Extension, Quarter Panel, Rear LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61673B	Reinforcement, Quarter Wheel House, Inner RH
61674B	Reinforcement, Quarter Wheel House, Inner LH
61707L	Panel Sub-assy, Roof Side, Inner Front RH
61708G	Panel Sub-assy, Roof Side, Inner Front LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61713A	Extension, Roof Side, Outer RH
61714A	Extension, Roof Side, Outer LH
61715B	Extension, Roof Side, Inner Front RH
61716B	Extension, Roof Side, Inner Front LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61743A	Reinforcement, Back Door Opening Side, RH
61744A	Reinforcement, Back Door Opening Side, LH
61766B	Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B	Reinforcement, Belt Anchor TO Roof Side, Inner LH
61777D	Retainer, Back Door Side Stopper, RH
61778J	Retainer, Back Door Side Stopper, LH
65565	Patch, Side Panel Rear End, RH
65566	Patch, Side Panel Rear End, LH
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH
68981A	Retainer, Back Door Stay, RH
68982A	Retainer, Back Door Stay, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
