Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11

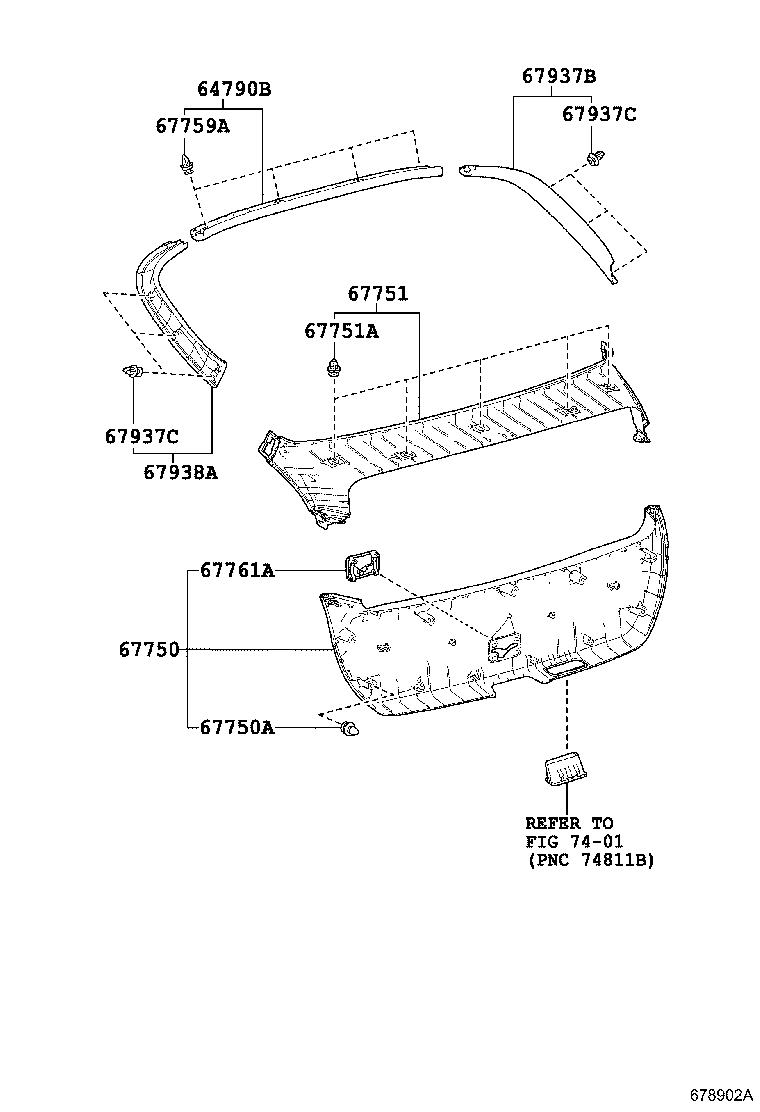

Back Door Panel & Glass
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64790B | Panel Assy, Back Door Trim, Upper |
| 64813B | Dam, Back Window Glass Adhesive |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64818D | Spacer, Back Window Glass, NO.3 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 64819D | Spacer, Back Window Glass, NO.4 |
| 64821 | Glass, Back Window Fix |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67281B | Stopper, Back Door, Lower |
| 67282F | Stopper, Back Door, Lwr LH |
| 67293 | Cushion, Back Door Lower Stopper |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67759A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67761A | Cover, Back Door Trim |
| 67837N | Seal, Back Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 68131 | Glass, Back Door |
| 68294A | Dam, Back Door Glass Adhesive |
| 68294D | Dam, Back Door Glass Adhesive, NO.2 |
| 75129C | Cushion, Rear Licence Plate |
| 75571F | Mouldimg, Back Door Window |
| 75573J | Moulding, Back Window, Outside RH NO.2 |
| 75574D | Moulding, Back Window, Outside LH NO.2 |
| 75575H | Moulding, Back Window, Lower NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
