Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

35 part groups · 3 illustrations

Illustrations

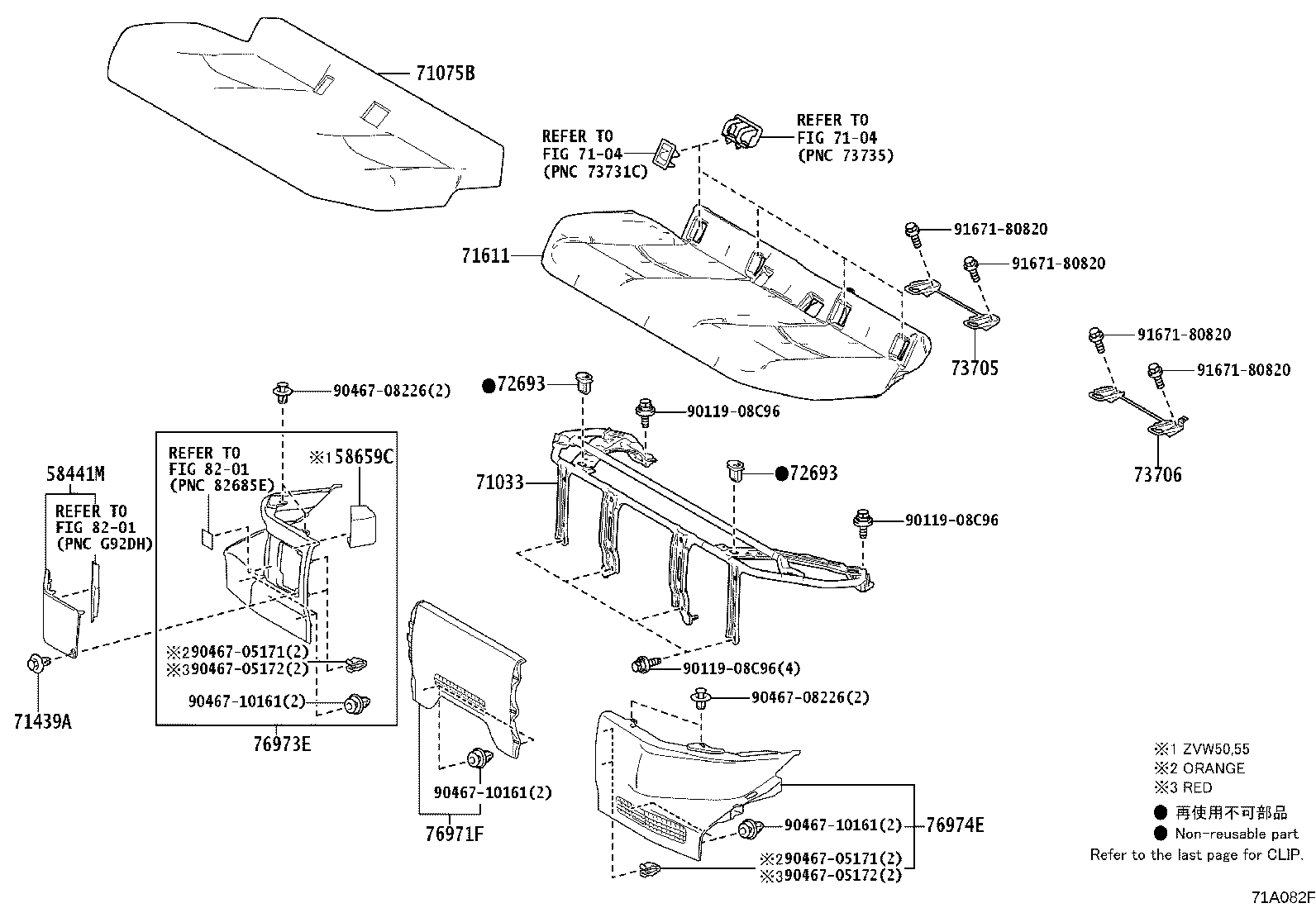

Figure 71A111D 71A111D 2015-11 → — Figure 71A082F 71A082F 2015-11 → — Figure 718166A 718166A 2015-11 → —

Part groups

PNCDescription
58441M Cover, Battery Service Hole
58659C Sheet, Step Silencer
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71439A Clip
71611 Pad, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72061A Base Sub-assy, Rear Seatback Lock, RH
72062 Base Sub-assy, Rear Seatback Lock, LH
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72679 Bezel, Rear Seatback Lock Control
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72839 Shim, Rear Seat Armrest Hinge
72868B Cover, Center Armrest Hinge
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
76971F Cover, Rear Under
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
