Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11
Armrest & Visor
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

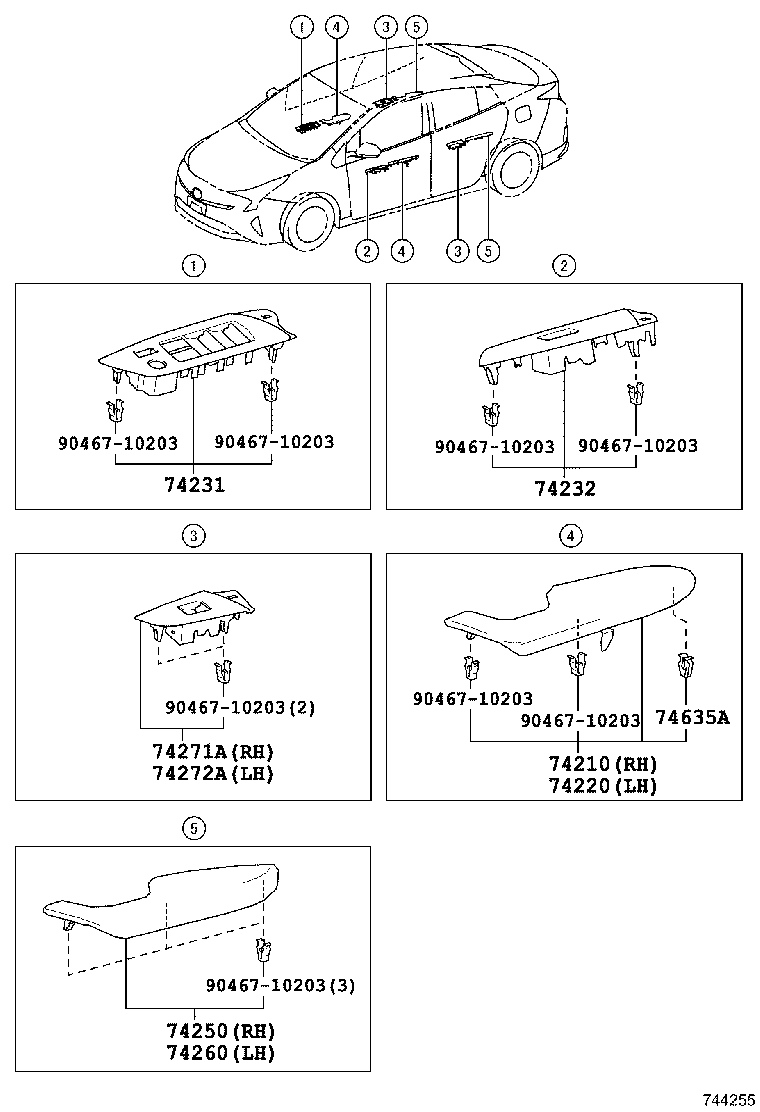

| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74250 | Armrest Assy, Rear RH |
| 74260 | Armrest Assy, Rear LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |

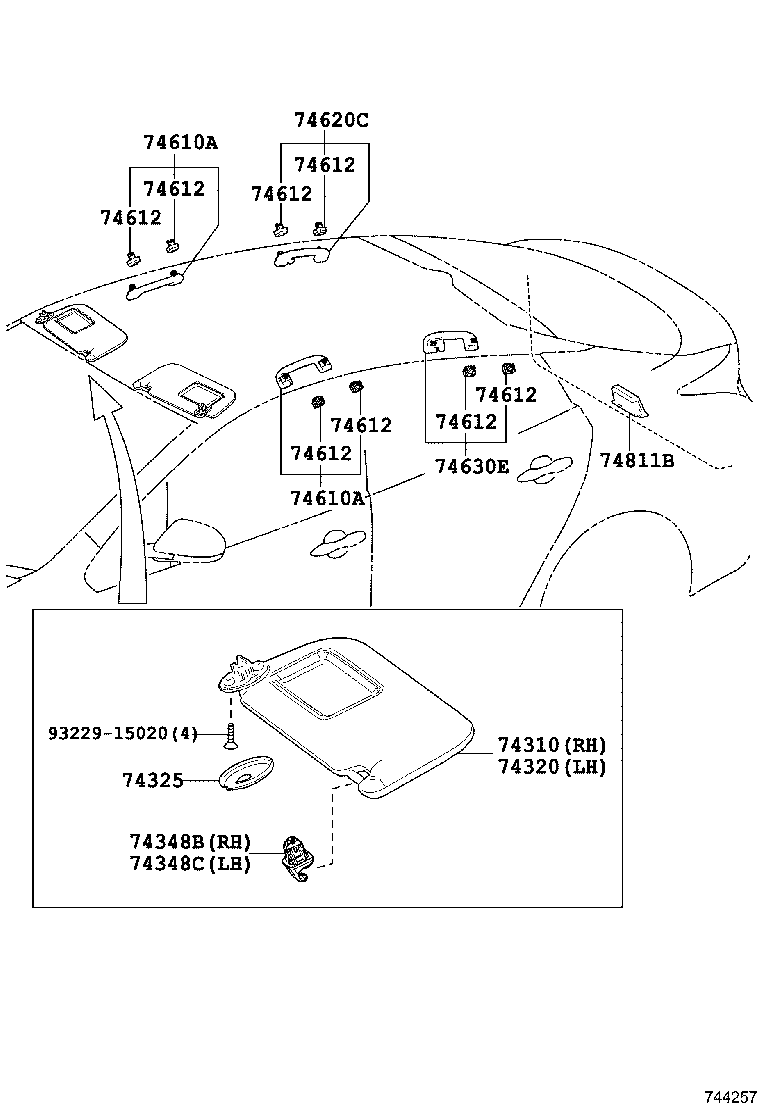

| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74325 | Cover, Visor Bracket |
| 74348B | Holder, Visor, RH |
| 74348C | Holder, Visor, LH |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
| 74635A | Clip |
| 74811B | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
