Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

7 part groups · 2 illustrations

Illustrations

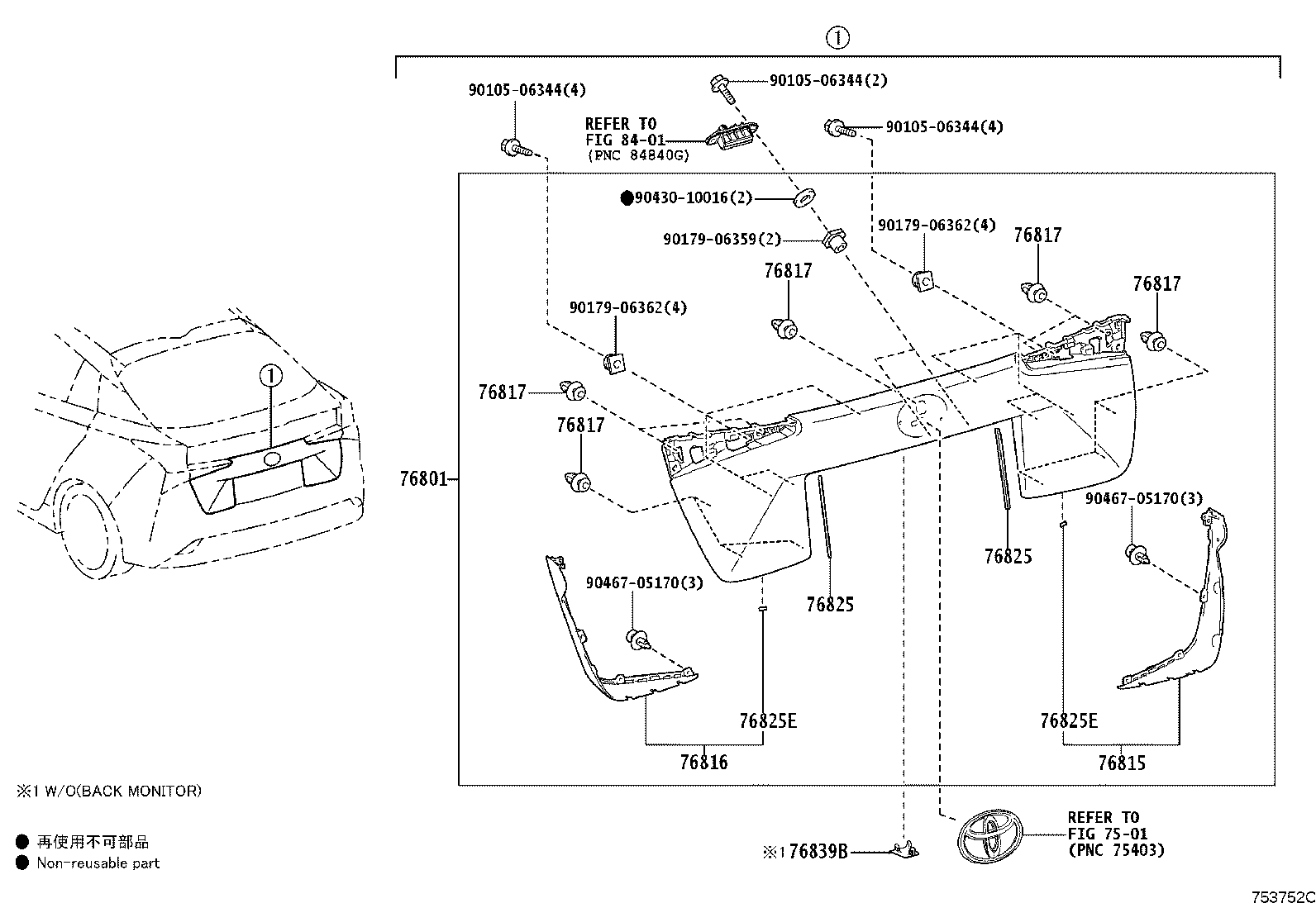

Figure 753283G 753283G 2015-11 → 2018-12 Figure 753752C 753752C 2018-12 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76815 Moulding, Back Door Outside Garnish, Lower RH
76816 Moulding, Back Door Outside Garnish, Lower LH
76817 Clip, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
76825E Protector, Back Door Outside Garnish, NO.2
76839B Cover, Back Door Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
