Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11

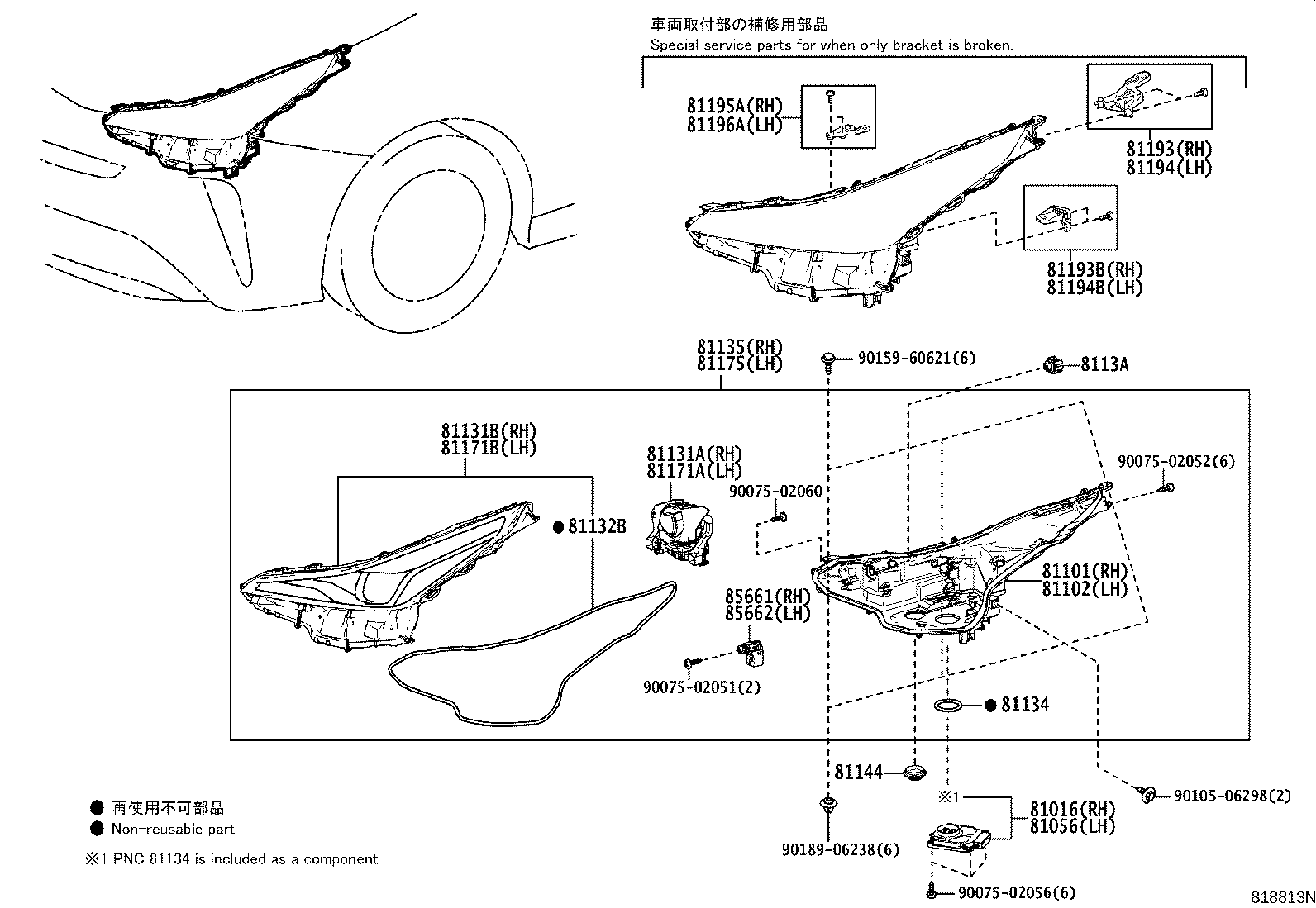

Headlamp
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81016 | Computer Sub-assy, Headlamp, RH NO.1 |
| 81056 | Computer Sub-assy, Headlamp, LH NO.1 |
| 81101 | Housing Sub-assy, Headlamp, RH |
| 81102 | Housing Sub-assy, Headlamp, LH |
| 81131A | Unit, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 8113A | Led, Headlamp Front Turn Signal |
| 81144 | Cover, Headlamp, NO.1 |
| 81171A | Unit, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
