Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe
Supported model
Data version 2023-11
Meter
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

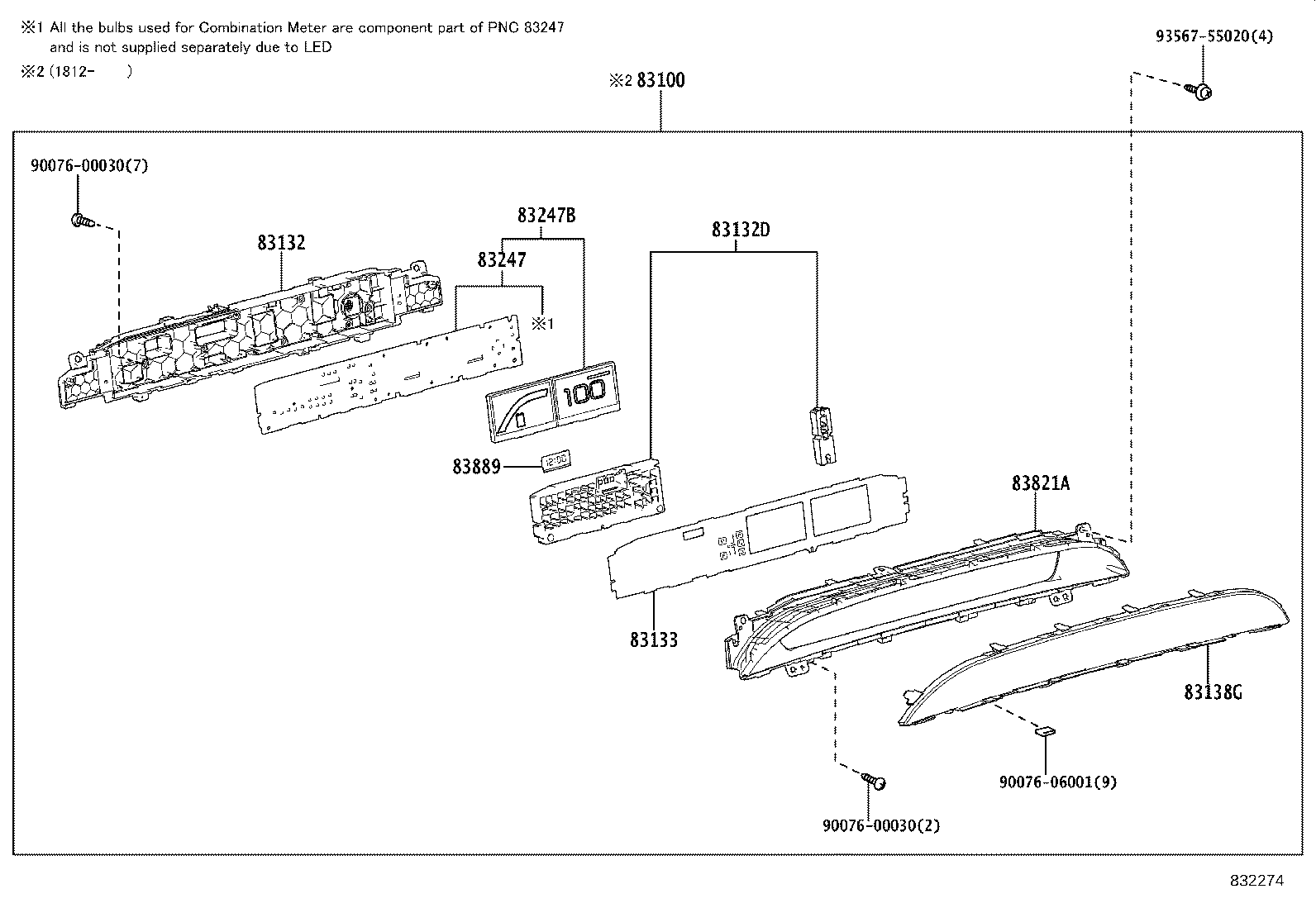

| 83100 | Meter Assy, Combination |
| 83132 | Case, Combination Meter |
| 83132D | Case, Combination Meter, NO.2 |
| 83133 | Plate, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |

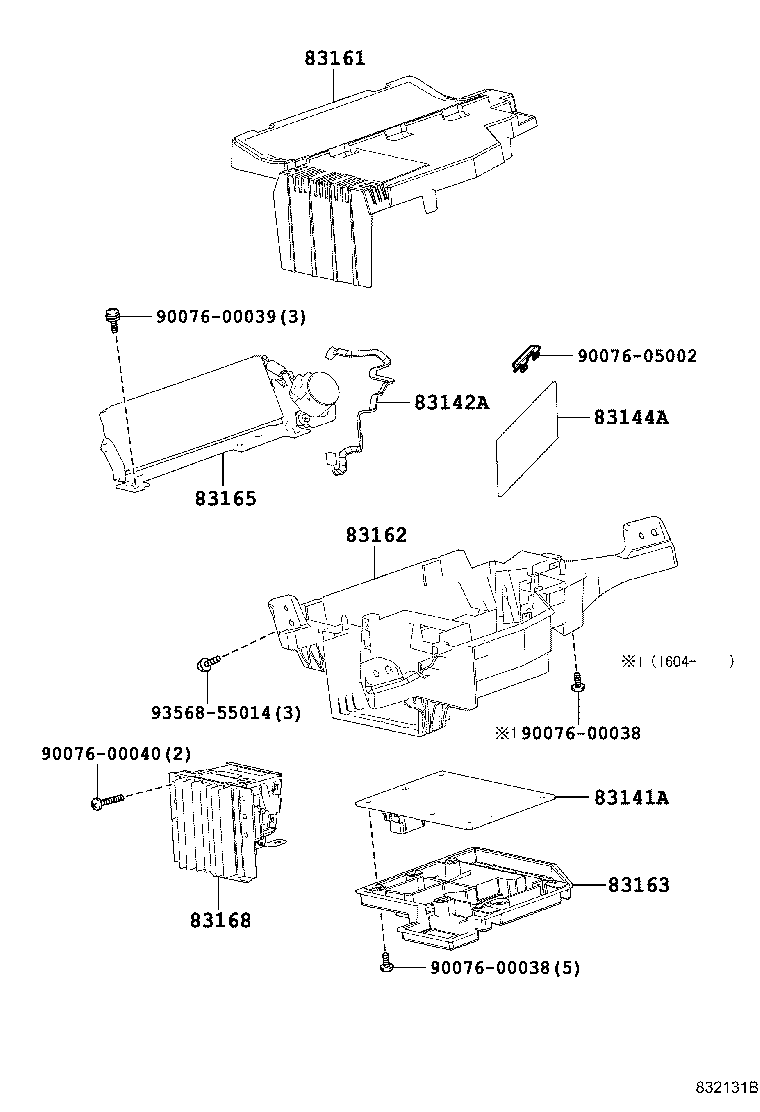

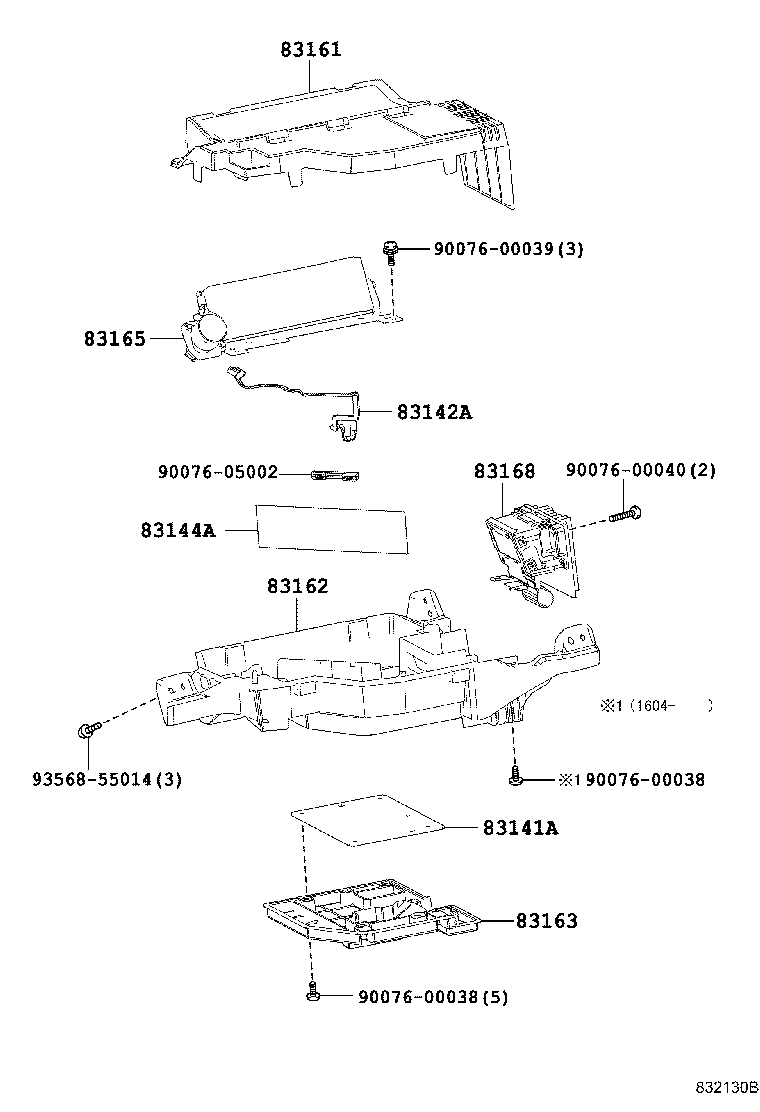

| 83141A | Computer, Combination Meter Mirror |
| 83142A | Wire, Combination Meter |
| 83144A | Mirror, Combination Meter |
| 83161 | Case, Combination Meter Mirror, NO.1 |
| 83162 | Case, Combination Meter Mirror, NO.2 |
| 83163 | Plate, Combination Meter Mirror, NO.1 |
| 83165 | Mirror, Combination Meter, NO.2 |
| 83168 | Display, Combination |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83821A | Cover, Combination Meter, NO.1 |
| 83889 | Multi-display, Combination Meter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
