Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

97 part groups · 13 illustrations

Illustrations

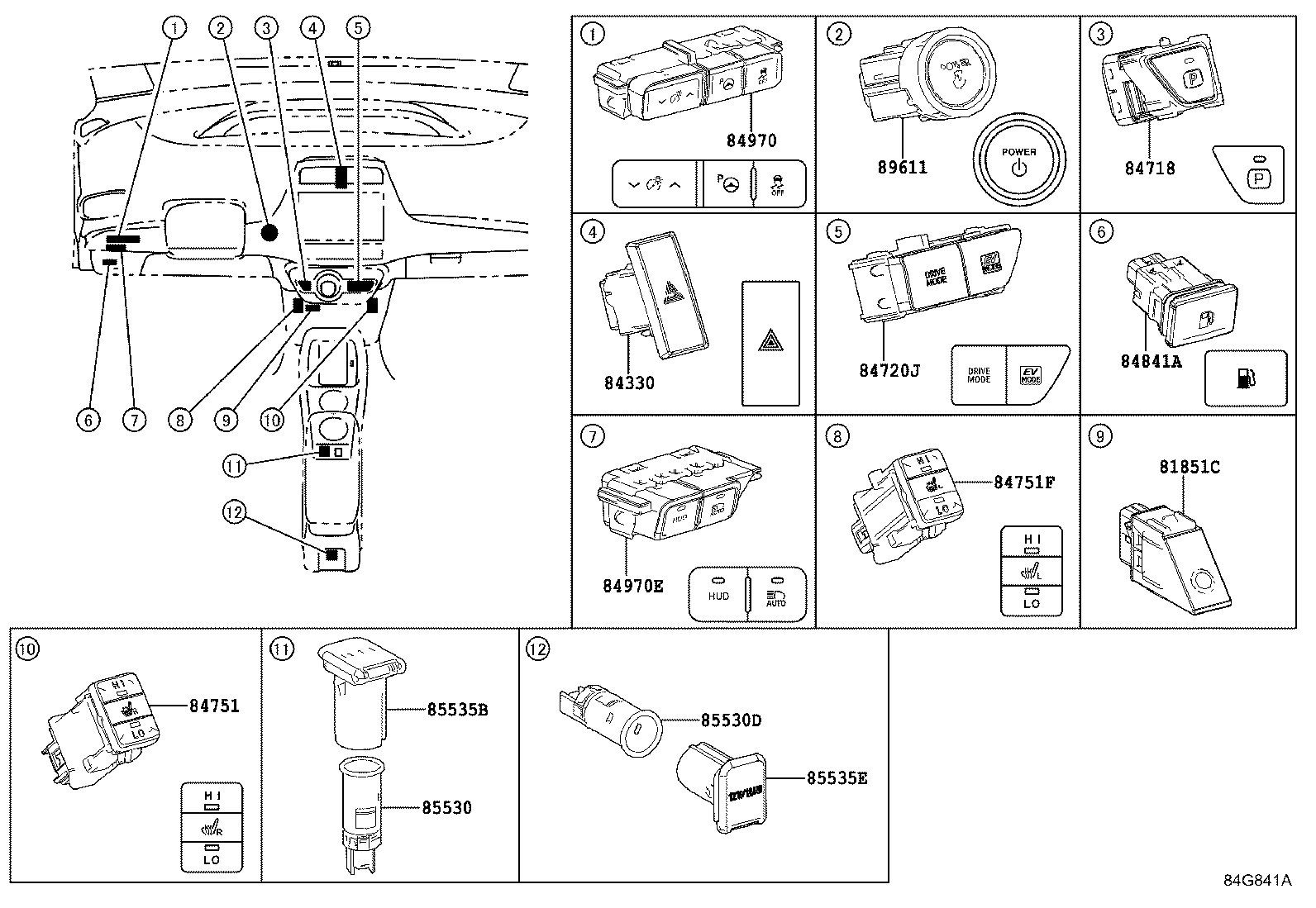

84G841A 2015-11 → 2018-12

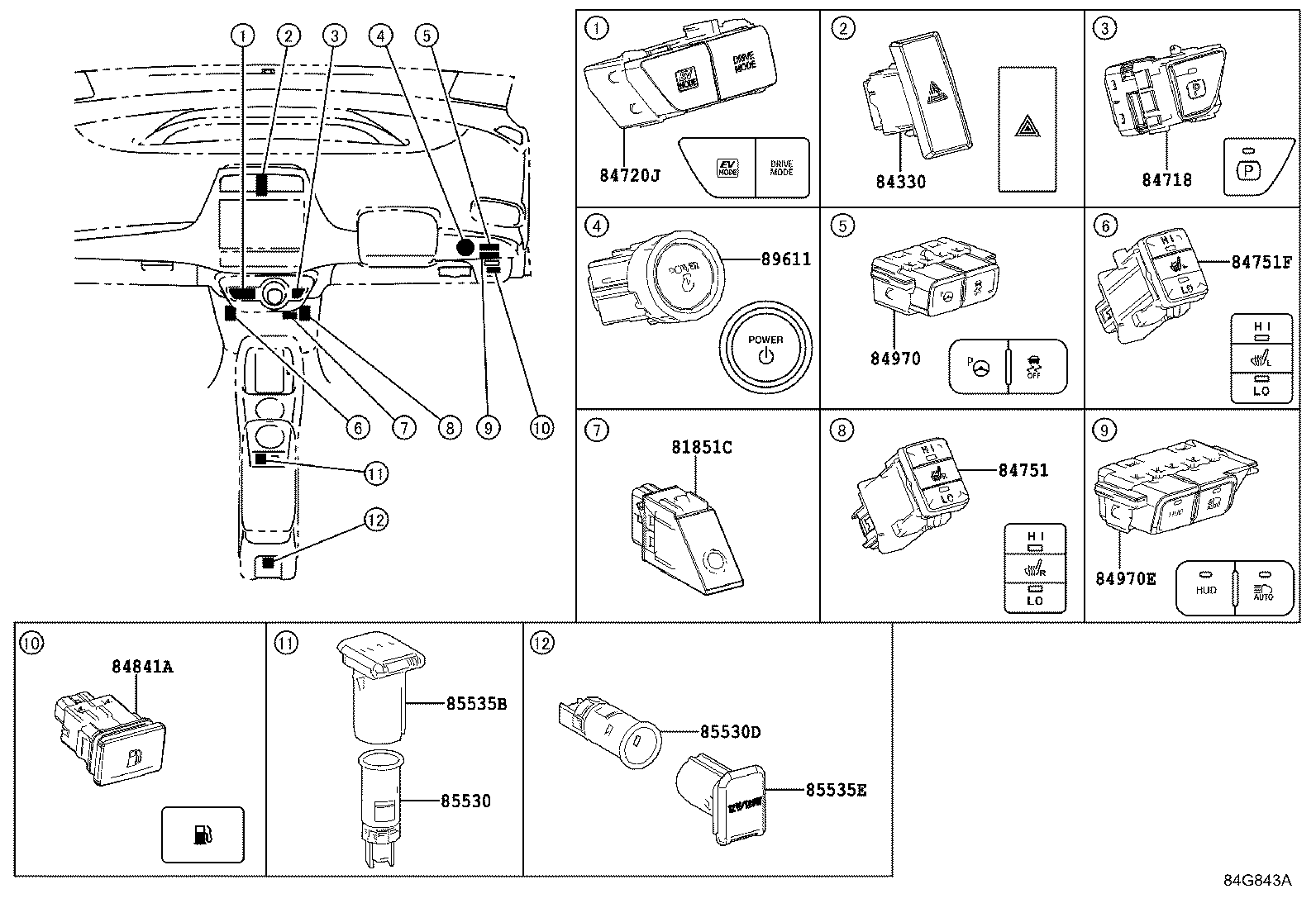

84G843A 2015-11 → 2018-12

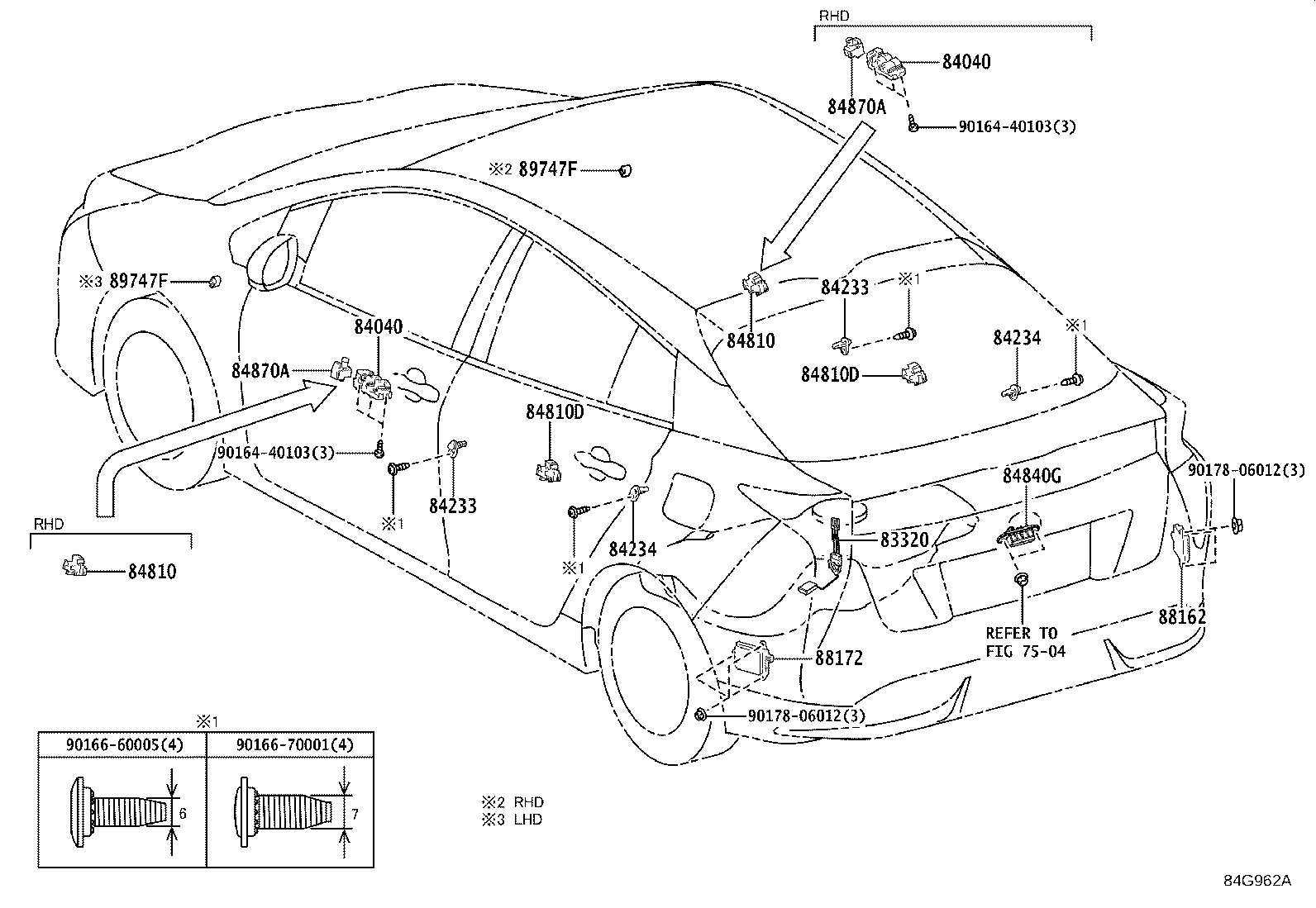

84G962A 2015-11 → 2018-12

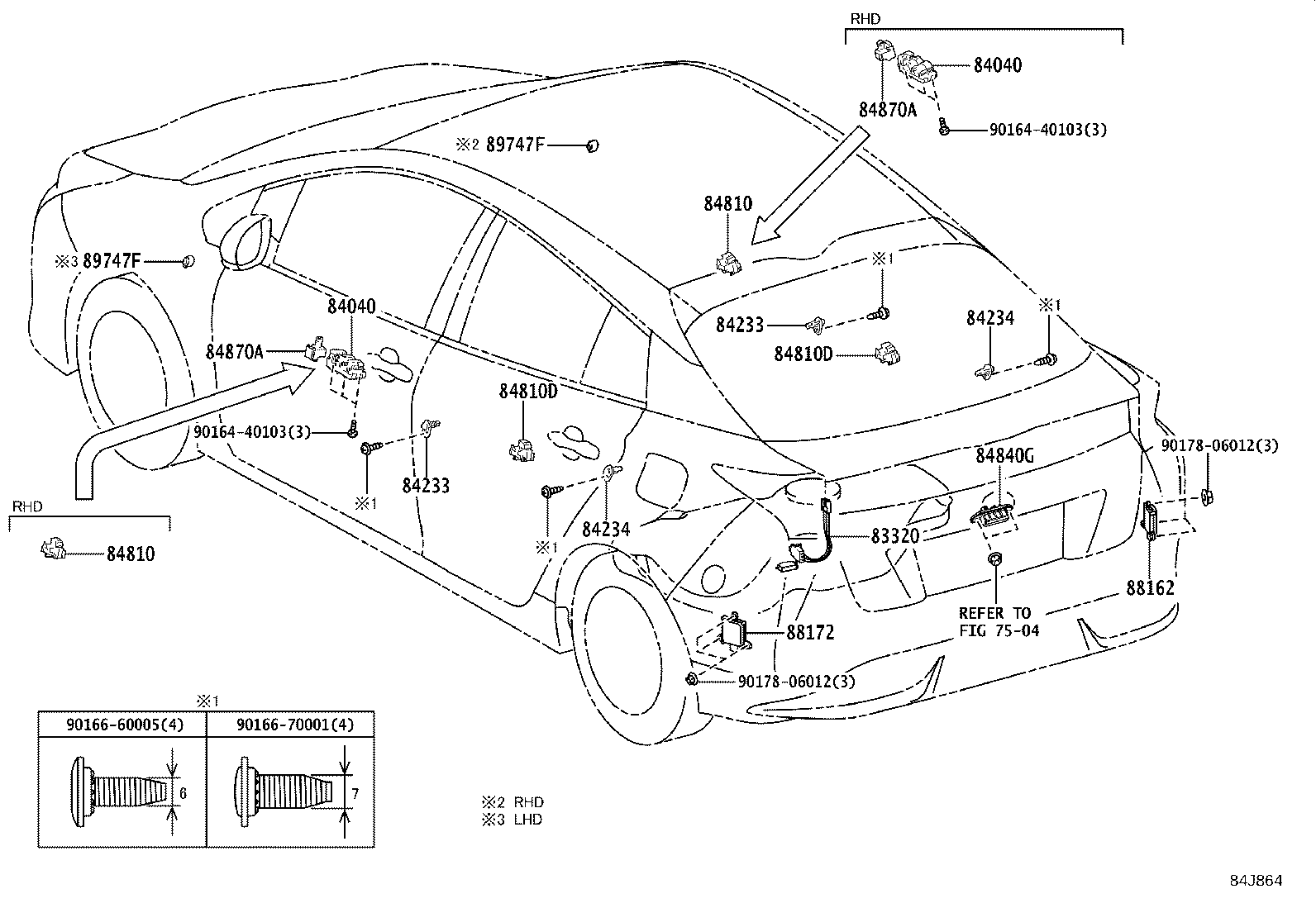

84J864 2018-12 → —

Part groups

PNC	Description
16100P	Relay, Water Pump
28371	Relay, Ignition, NO.1
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
69065A	Cylinder Sub-assy, Airbag Cut Off Switch
81851C	Lamp Assy, Indicator
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82641	Relay, Integration NO.1
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82660F	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82661A	Cover, Relay Block, NO.2
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82666	Holder, Connector
82666H	Holder, Connector, NO.2
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82715	Bracket,Wiring Harness Clamp
82730	Block Assy, Instrument Panel Junction
82877	Box, Computer Integration, RH
82878	Box, Computer Integration, LH
83320	Gage Assy, Fuel Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
84040	Master Switch Assy,Multiplex Network
84140	Switch Assy, Headlamp Dimmer
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84307	Cable Sub-assy, Spiral W/Sensor
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84550	Switch Assy, Parking Brake
84650	Switch Assy, Windshield Wiper
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84662	Panel, Cooler Control Switch
84718	Switch, Transmission Shift Main
84720J	Switch Assy, Pattern Select
84751	Switch, Seat Heater
84751F	Switch, Seat Heater
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener
84841A	Switch, Fuel Lid Opener
84870A	Switch Assy, Outer Mirror
84921D	Knob, Power Seat Switch, LH
84921K	Knob, Power Seat Switch, LH
84922A	Switch, Front Power Seat(FOR LUMBAR)
84922C	Switch, Front Power Seat, LH
84970	Switch Assy, Combination
84970E	Switch Assy, Combination NO.2
85530	Socket Assy, Power Outlet, NO.1
85530D	Socket Assy, Power Outlet, NO.2
85535B	Cover, Power Outlet Socket, NO.1
85535E	Cover, Power Outlet Socket, NO.2
85912	Relay, Defogger
85916D	Relay, Fog Lamp
85924C	Relay, Igct
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85927B	Relay, Cooling Fan, NO.3
85930G	Relay, Acc
85940	Relay Assy, Windshield Wiper
85970A	Relay Assy, Double Lock Door Control
86530	Relay Assy, Horn
86530A	Relay, Horn
87346K	Relay, Ptc Heater
87346L	Relay, Ptc Heater
87989	Relay, Mirror Control
88150A	Computer Assy, Driving Support
88162	Sensor, Blind Spot Monitor, RH
88172	Sensor, Blind Spot Monitor, LH
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89245B	Sensor, Steering
89465	Sensor, Oxygen
89467B	Sensor, Air Fuel Ratio
89481B	Sensor, Differential Pressure
89491	Sensor, Engine Oil Level
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89747F	Buzzer, Blind Spot Monitor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
