Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

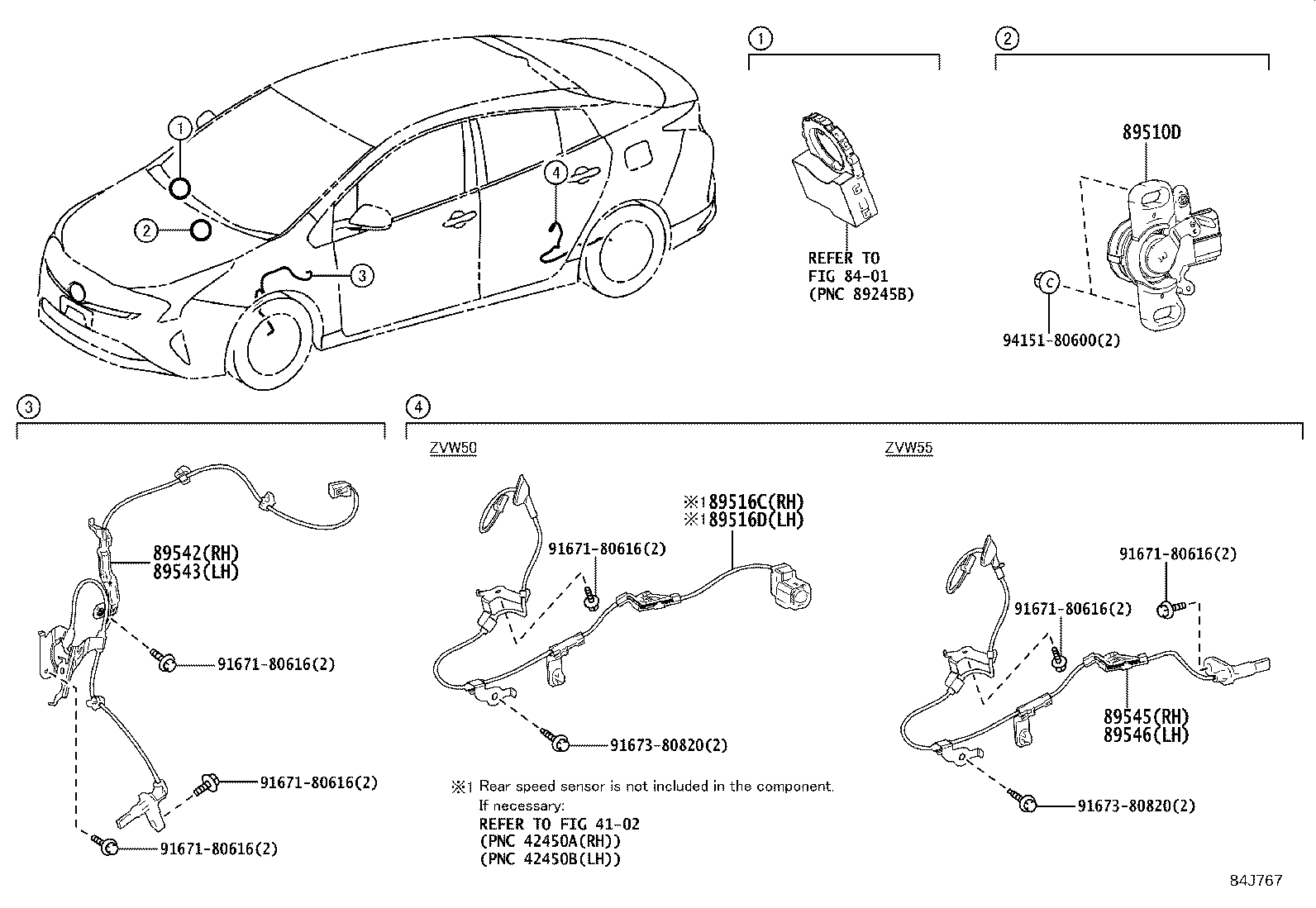

Figure 84J766 84J766 2015-11 → — Figure 84J767 84J767 2015-11 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
