Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

12 part groups · 2 illustrations

Illustrations

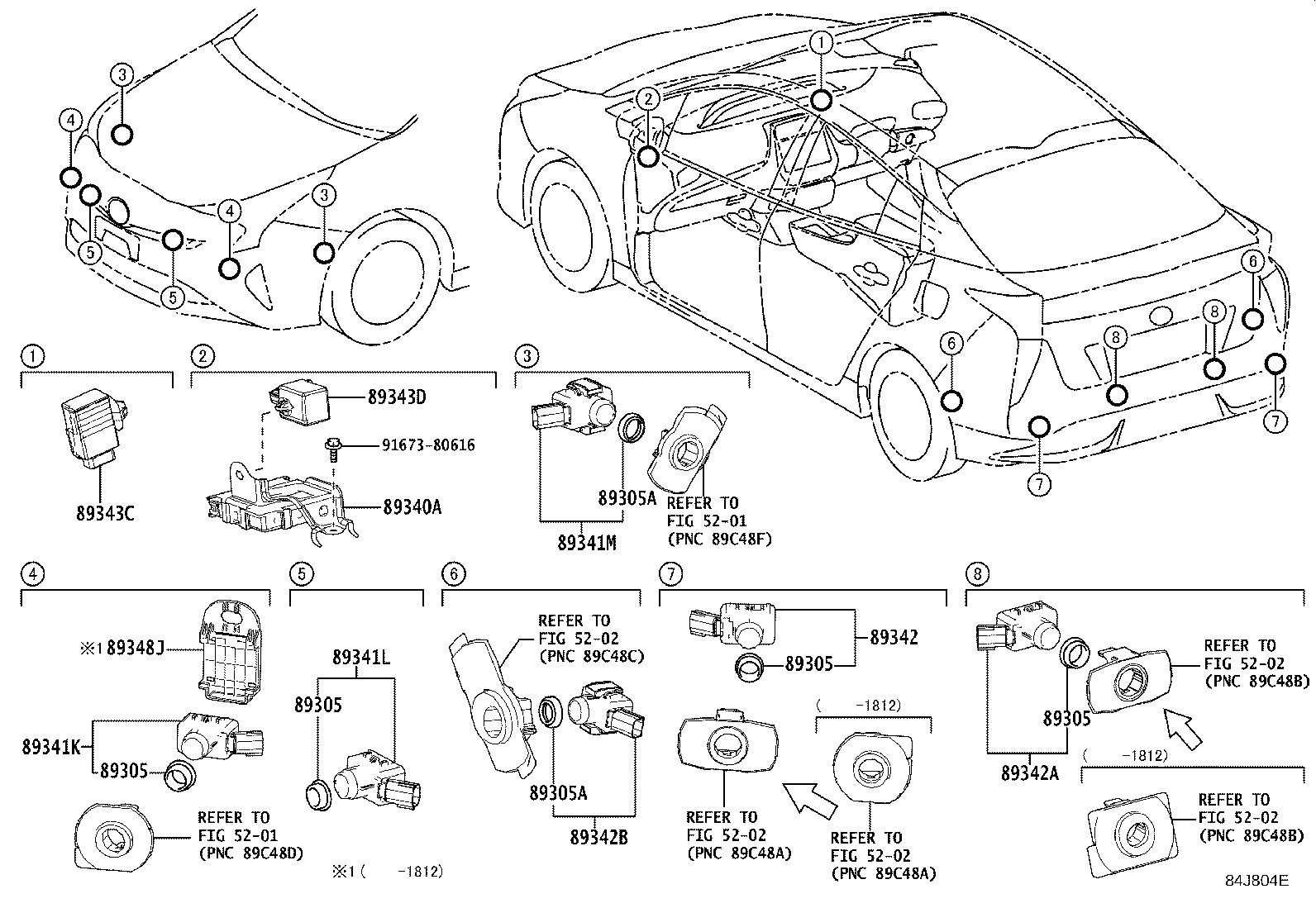

Figure 84G968J 84G968J 2015-11 → — Figure 84J804E 84J804E 2015-11 → —

Part groups

PNCDescription
89305 Cushion Set, Ultrasonic Sensor
89305A Cushion Set, Ultrasonic Sensor, NO.2
89340A Computer Assy, Clearance Warning
89341K Sensor, Ultrasonic, Front Corner
89341L Sensor, Ultrasonic, Front Center
89341M Sensor, Ultrasonic, Front Side
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89342B Sensor, Ultrasonic, Rear Side
89343C Buzzer, Clearance Warning, NO.1
89343D Buzzer, Clearance Warning, NO.2
89348J Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
