Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

14 part groups · 3 illustrations

Illustrations

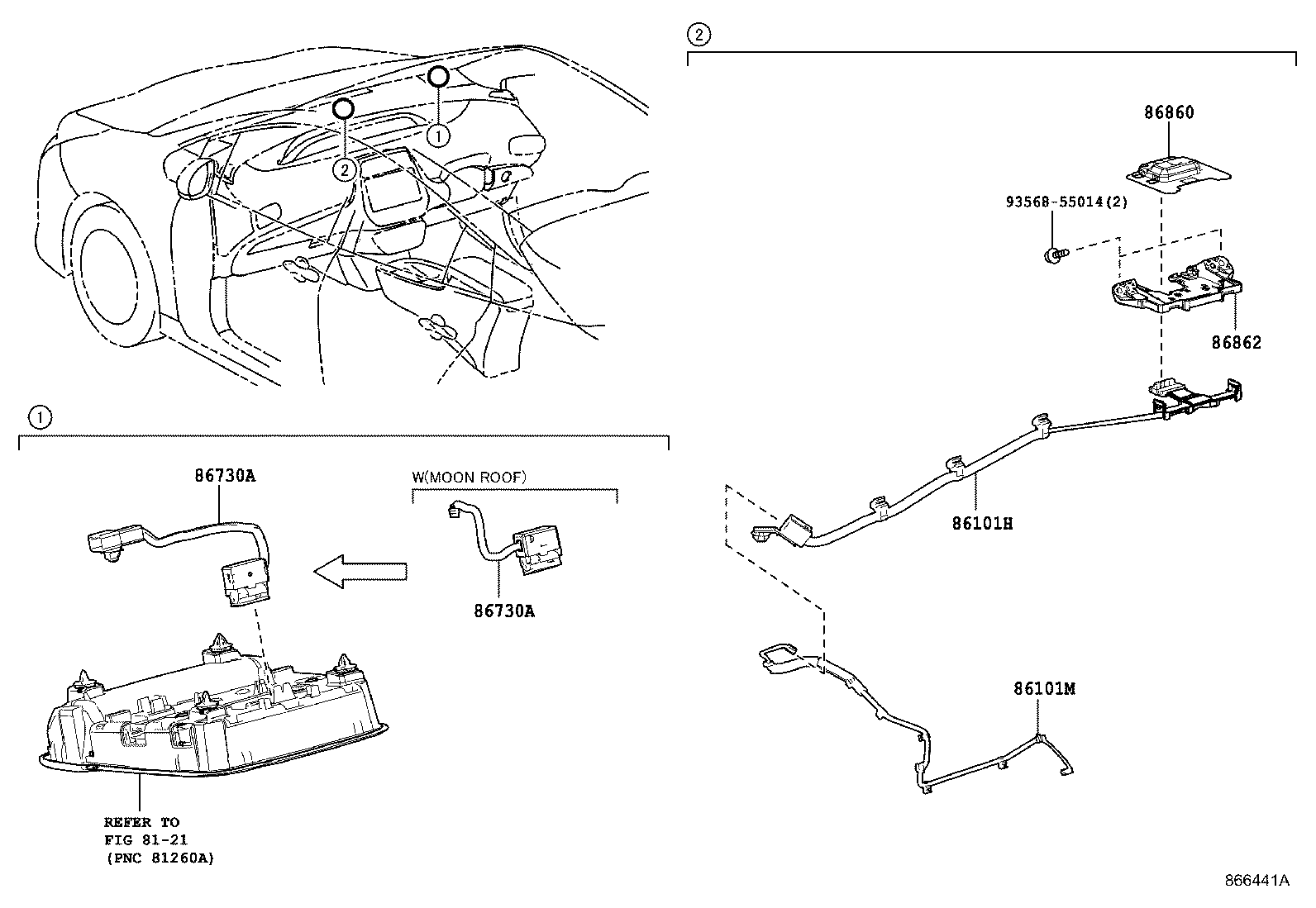

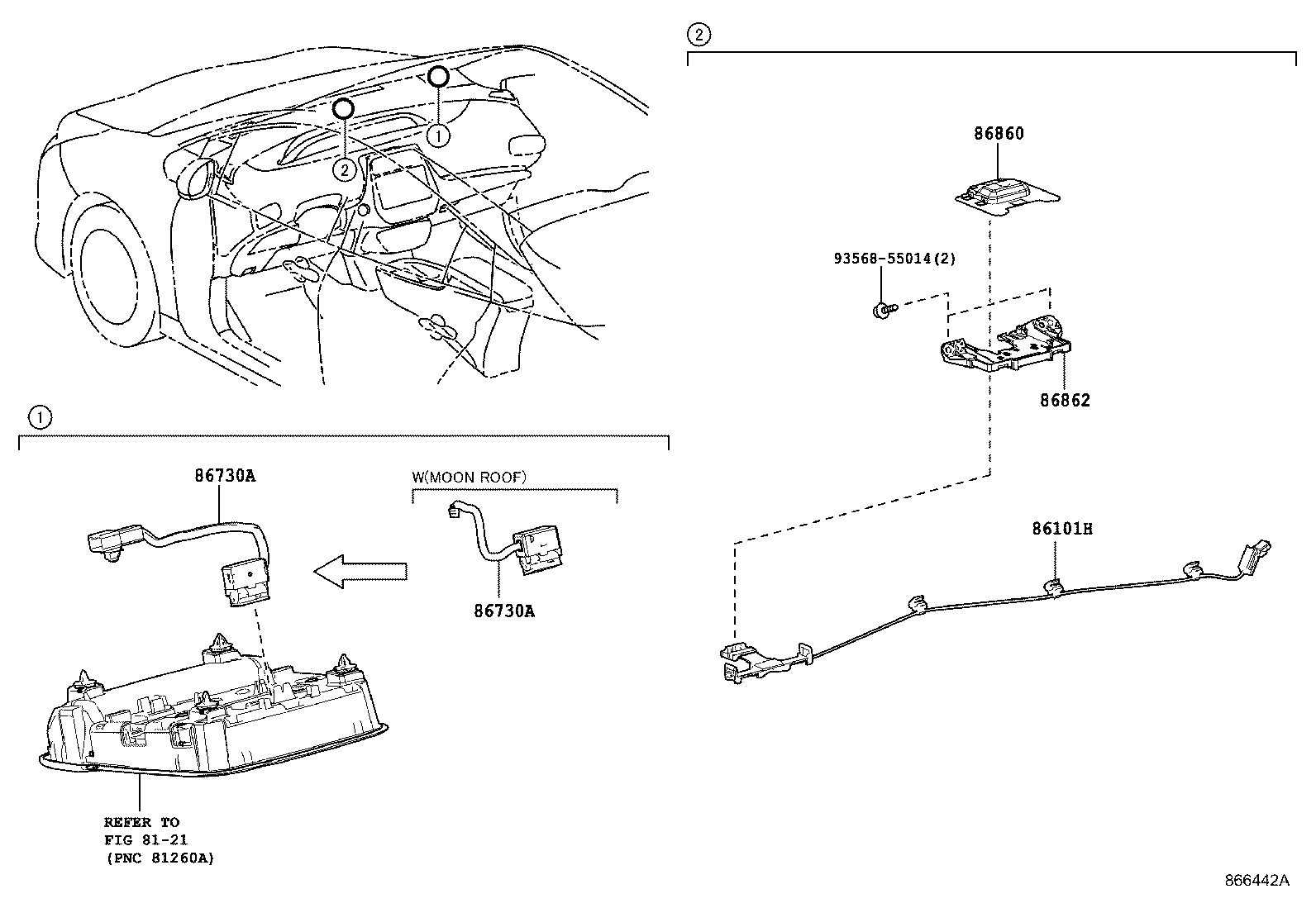

Figure 866464F 866464F 2015-11 → — Figure 866442A 866442A 2015-11 → — Figure 866441A 866441A 2015-11 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86101M Cord Sub-assy, Antenna
86120L Receiver Assy, Navigation
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86170A Switch & Volume Assy
86271 Disc, Disc Player
86705B Cord Sub-assy, Telephone Antenna
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
