Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222540 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

20 part groups · 2 illustrations

Illustrations

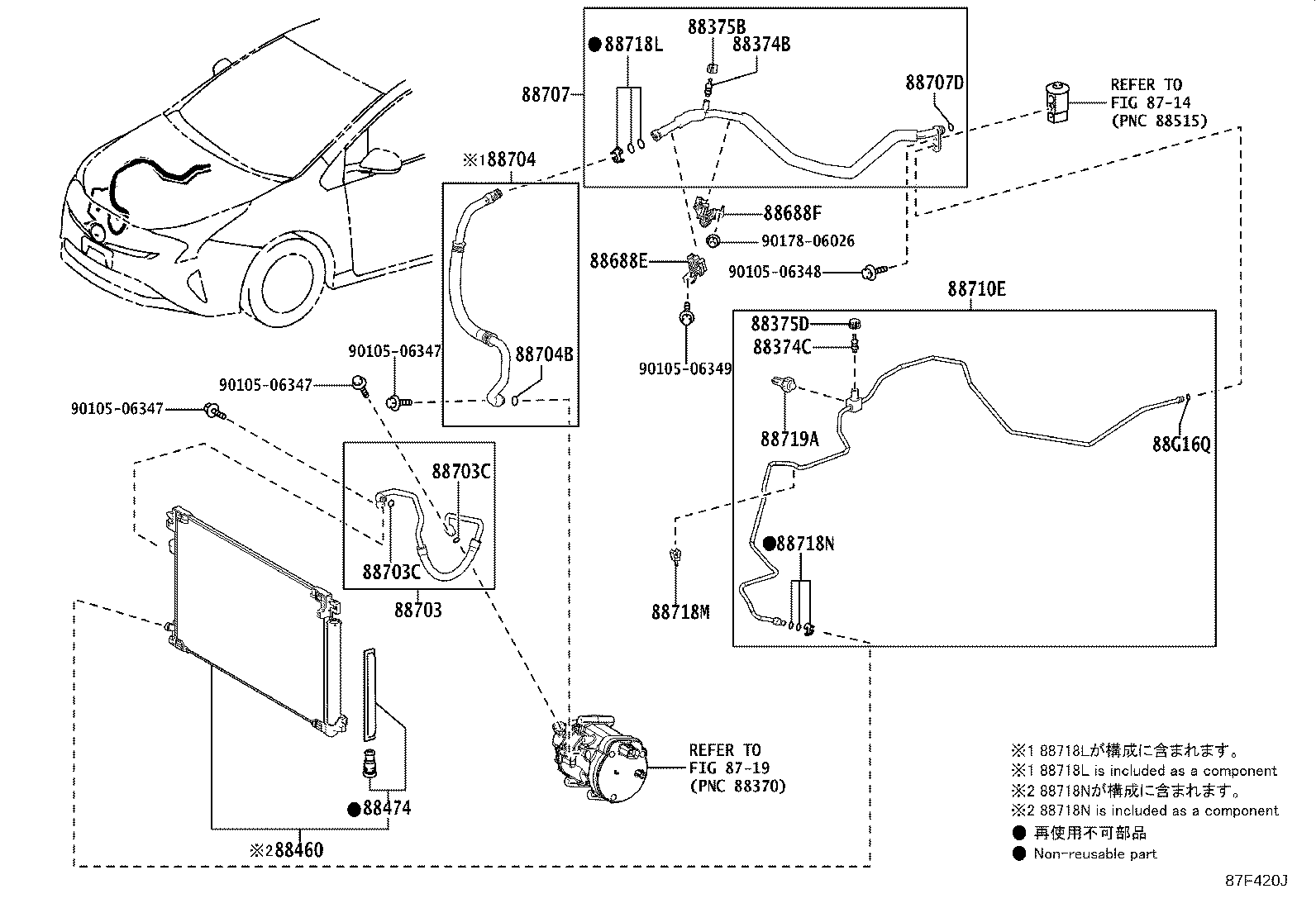

Figure 87F421I 87F421I 2015-11 → — Figure 87F420J 87F420J 2015-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88G16Q Ring, O, NO.1(FOR LIQUID TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
