Toyota Prius(PLUG-IN HBD)
2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe
Supported model
Data version 2011-05

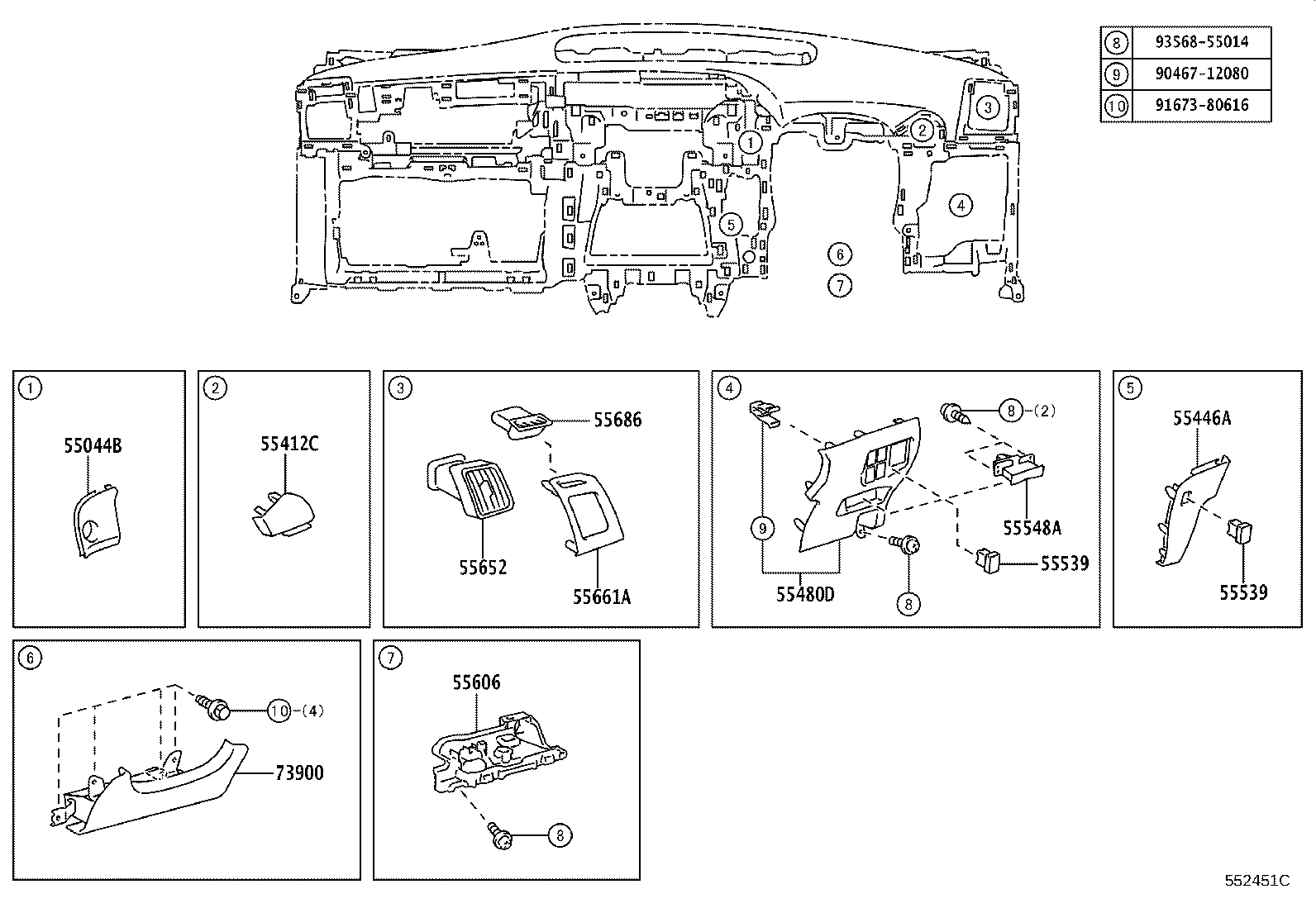

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55044B — Panel Sub-assy, Instrument Panel Finish, Upper | ||||
| 55044-47050 |
Panel Sub-assy, Instrument Panel Finish, Upper
2009-12 → —
|
ZVW35 RHD | — | |
| 55044-47060 |
Panel Sub-assy, Instrument Panel Finish, Upper
2009-12 → —
|
ZVW35 LHD | — | |
| 55412C — Panel, Instrument Cluster Finish, Center NO.1 | ||||
| 55412-47020-B0 note |
Panel, Instrument Cluster Finish, Center NO.1
2009-12 → —
|
ZVW35 RHD | — | |
| 55412-47030-B0 note |
Panel, Instrument Cluster Finish, Center NO.1
2009-12 → —
|
ZVW35 LHD | — | |
| 55446A — Base, Switch Hole, NO.1 | ||||
| 55446-47020-G0 note |
Base, Switch Hole, NO.1
2009-12 → —
|
ZVW35 RHD | — | |
| 55446-47030-G0 note |
Base, Switch Hole, NO.1
2009-12 → —
|
ZVW35 LHD | — | |
| 55480D — Panel Assy, Instrument Panel Finish, Lwr | ||||
| 55480-47010-G0 note |
Panel Assy, Instrument Panel Finish, Lwr
2009-12 → —
|
ZVW35 RHD | — | |
| 55480-47020-G0 note |
Panel Assy, Instrument Panel Finish, Lwr
2009-12 → —
|
ZVW35 LHD | — | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-28160-C0 note |
Cover, Spare Switch Hole
2009-12 → —
|
ZVW35 | — | |
| 55548A — Cover, Instrument Panel Hole | ||||
| 55548-47020-G0 note |
Cover, Instrument Panel Hole
2009-12 → —
|
ZVW35 RHD | — | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55606-47010 |
Cover Sub-assy, Instrument Panel Under, NO.1
2009-12 → —
|
ZVW35 RHD | — | |
| 55606-47020 |
Cover Sub-assy, Instrument Panel Under, NO.1
2009-12 → —
|
ZVW35 LHD | — | |
| 55652 — Register, Instrument Panel, NO.2 | ||||
| 55652-47010-B1 note |
Register, Instrument Panel, NO.2
2009-12 → —
|
ZVW35 RHD | — | |
| 55652-47010-G0 note |
Register, Instrument Panel, NO.2
2009-12 → —
|
ZVW35 LHD | — | |
| 55661A — Bezel, Instrument Panel Register | ||||
| 55661-47070-B0 note |
Bezel, Instrument Panel Register
2009-12 → —
|
ZVW35 LHD | — | |
| 55661-47080-B0 note |
Bezel, Instrument Panel Register
2009-12 → —
|
ZVW35 RHD | — | |
| 55686 — Retainer, Register Blade | ||||
| 55687-47010 |
Retainer, Register Blade
2009-12 → —
|
ZVW35 LHD | — | |
| 55687-47020 |
Retainer, Register Blade
2009-12 → —
|
ZVW35 RHD | — | |
| 73900 — Airbag Assy, Instrument Panel, Lower NO.1 | ||||
| 73900-47010-G0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2009-12 → —
|
ZVW35 RHD | — | |
| 73900-47020-G0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2009-12 → —
|
ZVW35 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
