Toyota Prius(PLUG-IN HBD)
2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe
Supported model
Data version 2011-05

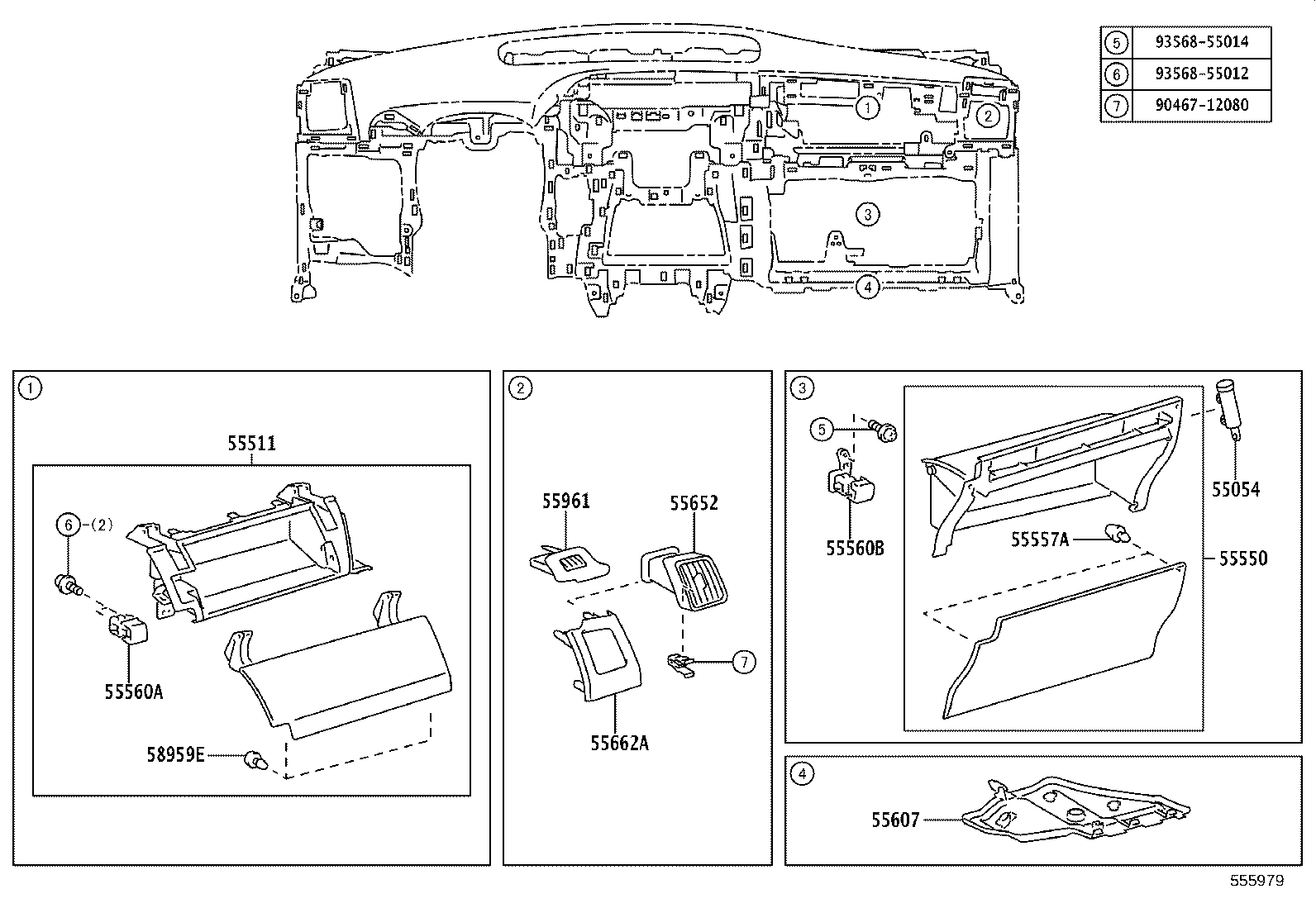

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55054 — Stopper Sub-assy, Glove Compartment Door | ||||
| 55054-12030 |
Stopper Sub-assy, Glove Compartment Door
2009-12 → —
|
ZVW35 | — | |
| 55511 — Door, Glove Compartment | ||||
| 55511-47030-G0 note |
Door, Glove Compartment
2009-12 → —
|
ZVW35 RHD | — | |
| 55511-47040-G0 note |
Door, Glove Compartment
2009-12 → —
|
ZVW35 LHD | — | |
| 55550 — Door Assy, Glove Compartment | ||||
| 55550-47080-G0 note |
Door Assy, Glove Compartment
2009-12 → 2011-02
ended
|
ZVW35 LHD | — | |
| 55550-47090-G0 note |
Door Assy, Glove Compartment
2009-12 → 2011-02
ended
|
ZVW35 RHD | — | |
| 55557A — Cushion, Glove Compartment Door Check | ||||
| 55557-53030 |
Cushion, Glove Compartment Door Check
2009-12 → —
|
ZVW35 | — | |
| 55560A — Lock Assy, Glove Compartment Door | ||||
| 55560-47070-G0 note |
Lock Assy, Glove Compartment Door
2009-12 → —
|
ZVW35 RHD | — | |
| 55560-47080-G0 note |
Lock Assy, Glove Compartment Door
2009-12 → —
|
ZVW35 LHD | — | |
| 55560B — Lock Assy, Glove Compartment Door | ||||
| 55560-47050-G0 note |
Lock Assy, Glove Compartment Door
2009-12 → —
|
ZVW35 RHD | — | |
| 55560-47060-G0 note |
Lock Assy, Glove Compartment Door
2009-12 → —
|
ZVW35 LHD | — | |
| 55607 — Cover Sub-assy, Instrument Panel Under, NO.2 | ||||
| 55607-47030 |
Cover Sub-assy, Instrument Panel Under, NO.2
2009-12 → —
|
ZVW35 RHD | — | |
| 55607-47040 |
Cover Sub-assy, Instrument Panel Under, NO.2
2009-12 → —
|
ZVW35 LHD | — | |
| 55652 — Register, Instrument Panel, NO.2 | ||||
| 55652-47010-B1 note |
Register, Instrument Panel, NO.2
2009-12 → —
|
ZVW35 RHD | — | |
| 55652-47010-G0 note |
Register, Instrument Panel, NO.2
2009-12 → —
|
ZVW35 LHD | — | |
| 55662A — Bezel, Instrument Panel Resister, NO.2 | ||||
| 55662-47030-G0 note |
Bezel, Instrument Panel Resister, NO.2
2009-12 → —
|
ZVW35 LHD | — | |
| 55662-47040-G0 note |
Bezel, Instrument Panel Resister, NO.2
2009-12 → —
|
ZVW35 RHD | — | |
| 55961 — Nozzle, Side Defroster, NO.1 | ||||
| 55961-47020-B0 note |
Nozzle, Side Defroster, NO.1
2009-12 → —
|
ZVW35 RHD | — | |
| 55961-47030-B0 note |
Nozzle, Side Defroster, NO.1
2009-12 → —
|
ZVW35 LHD | — | |
| 58959E — Cushion, Console Compartment Door | ||||
| 58959-60060 |
Cushion, Console Compartment Door
2009-12 → —
|
ZVW35 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
