Toyota Prius(PLUG-IN HBD)
2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe
Supported model
Data version 2011-05

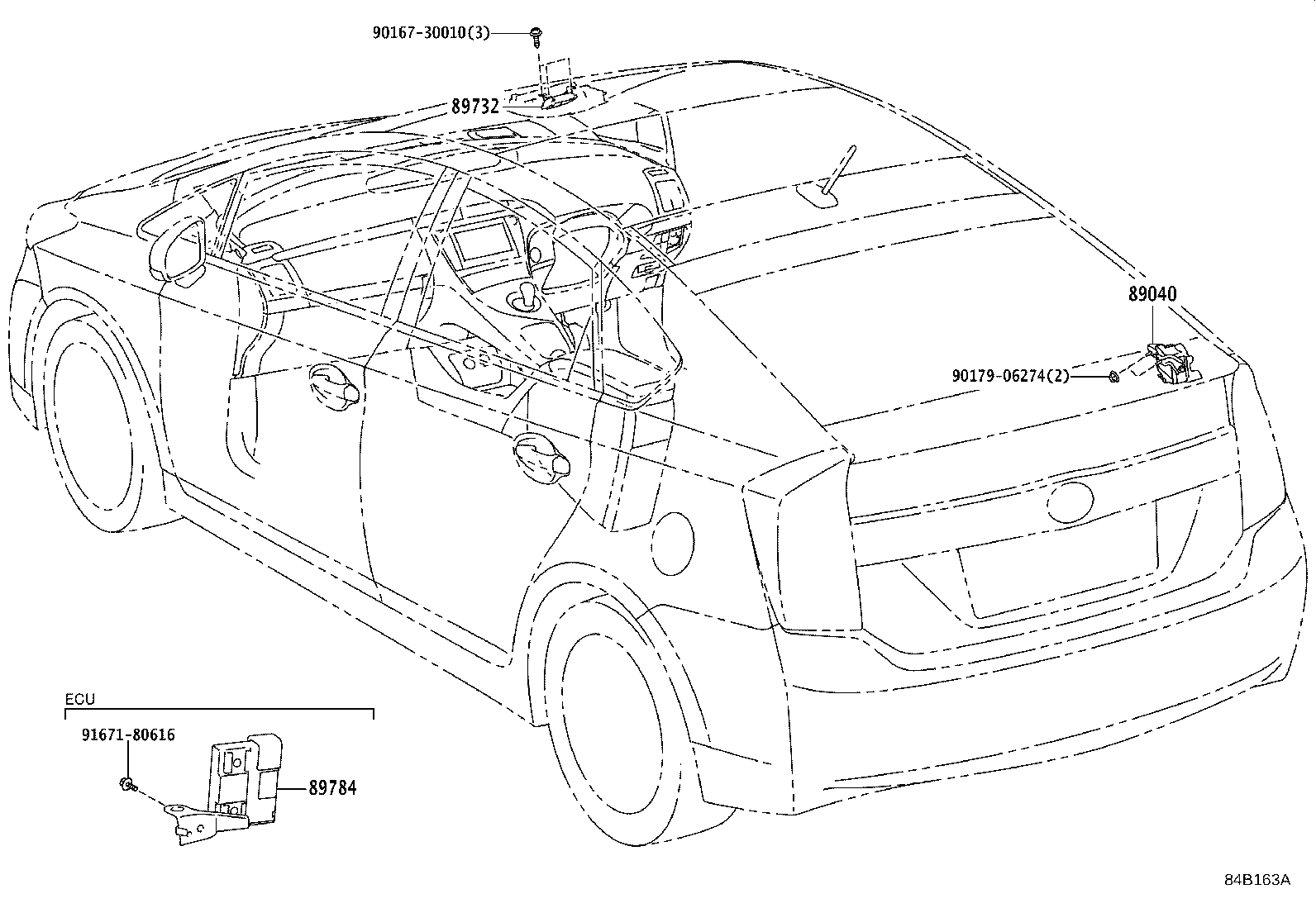

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89040 — Siren Assy, Theft Warning | ||||
| 89040-47020 note |
Siren Assy, Theft Warning
2009-12 → —
|
ZVW35 RHD | — | |
| 89732 — Sensor, Theft Warning Radar | ||||
| 89732-47030 note |
Sensor, Theft Warning Radar
2009-12 → 2010-10
ended
|
ZVW35 RHD | — | |
| 89784 — Computer, Immobilizer Code | ||||
| 89784-47010 |
Computer, Immobilizer Code
2009-12 → —
|
ZVW35 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
