Toyota Prius(PLUG-IN HBD)

2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe

Supported model Data version 2011-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

8 part groups · 2 illustrations

Illustrations

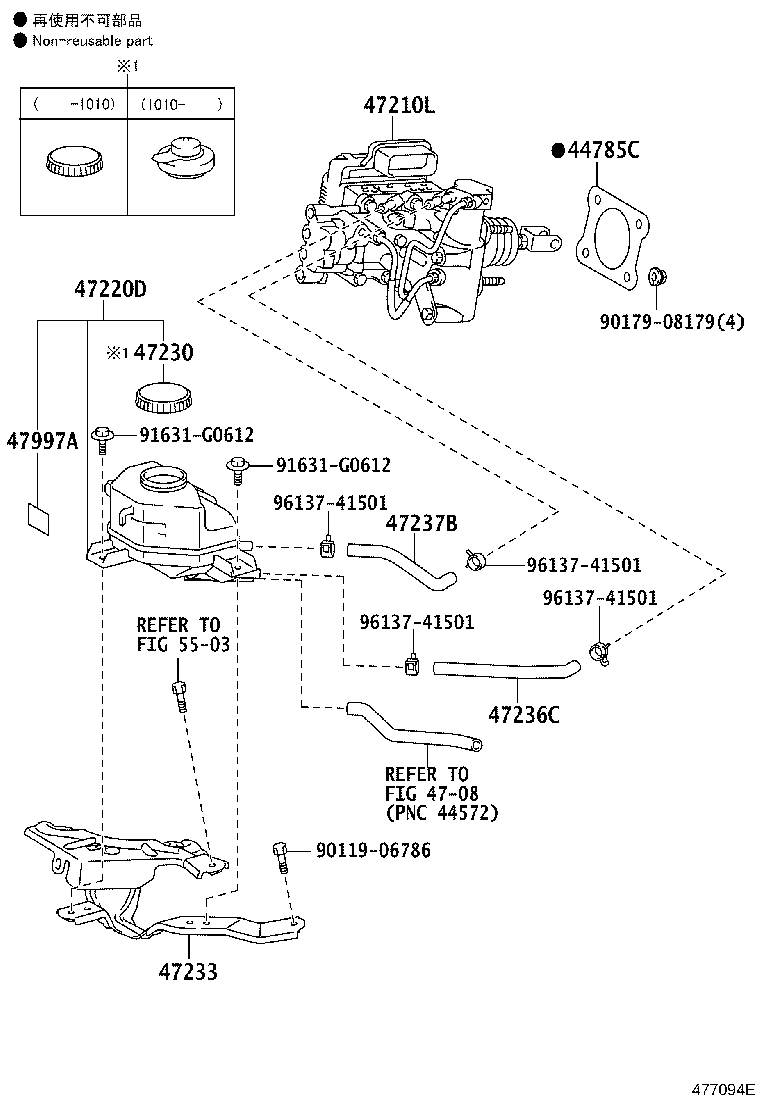

Figure 477095E 477095E 2009-12 → — Figure 477094E 477094E 2009-12 → —

Part groups

PNCDescription
44785C Gasket, Brake Booster
47210L Brake Booster Assy, W/Master Cylinder
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47236C Hose, Reservoir Tube
47237B Hose, Reservior Tube
47997A Label, Accumulator Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
