Toyota Prius(PLUG-IN HBD)
2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe
Supported model
Data version 2011-05

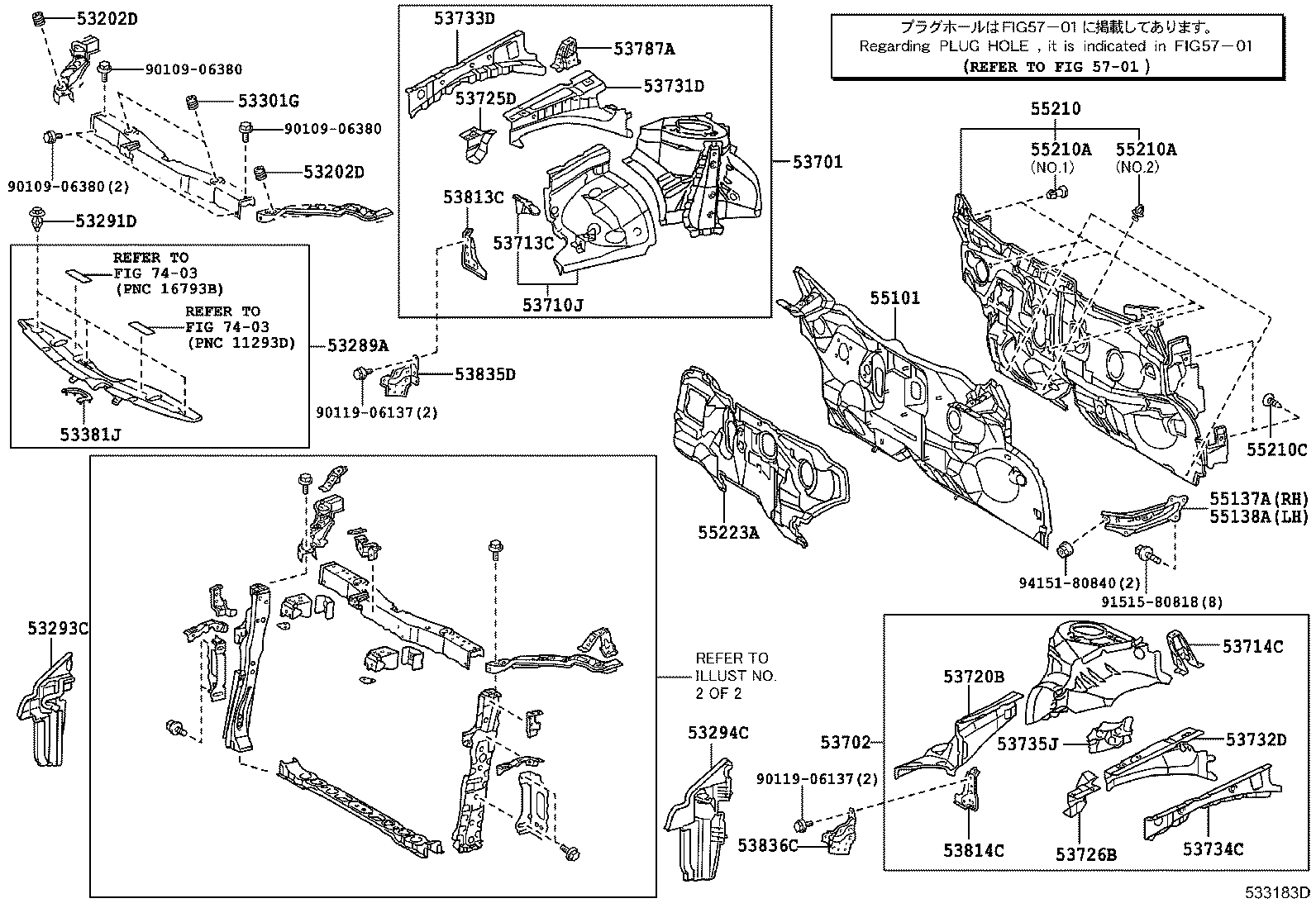

Front Fender Apron & Dash Panel
53 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52081A | Stay Sub-assy, Front Bumper, RH |
| 52082A | Stay Sub-assy, Front Bumper, LH |
| 52143F | Bracket, Front Bumper Side, RH |
| 52144G | Bracket, Front Bumper Side, LH |
| 52147H | Bracket, Front Bumper Mounting |
| 52148G | Bracket, Front Bumper Mounting, NO.2 |
| 53187A | Stay, Radiator Support, RH |
| 53188B | Stay, Radiator Support, LH |
| 53201 | Support Sub-assy, Radiator |
| 53202 | Support Sub-assy, Radiator, RH |
| 53202D | Cushion, Radiator Support |
| 53203 | Support Sub-assy, Radiator, LH |
| 53204E | Brace Sub-assy, Radiator Support TO Crossmember, LH |
| 53208A | Support Sub-assy, Hood Lock |
| 53209F | Brace Sub-assy, Radiator Support TO Crossmember, RH |
| 53218A | Support, Radiator, Lower |
| 53238C | Bracket, Hood Bumper Mounting, RH |
| 53239B | Bracket, Hood Bumper Mounting, LH |
| 53271E | Bracket, Headlamp Mounting, RH |
| 53272C | Bracket, Headlamp Mounting, LH |
| 53289A | Cover, Radiator Support Opening |
| 53291D | Clip, Radiator Support TO Frame |
| 53293C | Deflector, Radiator Side, RH |
| 53294C | Deflector, Radiator Side, LH |
| 53301G | Cushion, Hood Bumper |
| 53381J | Seal, Hood TO Radiator Support |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53710J | Apron Assy, Front Fender, RH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53714C | Extension, Front Fender Apron, Front LH |
| 53720B | Apron Assy, Front Fender, LH |
| 53725D | Reinforcement, Front Spring Support, NO.2 RH |
| 53726B | Reinforcement, Front Spring Support, NO.2 LH |
| 53731D | Member, Front Apron TO Cowl Side, Upper RH |
| 53732D | Member, Front Apron TO Cowl Side, Upper LH |
| 53733D | Member, Front Apron TO Cowl Side, Lower Front RH |
| 53734C | Member, Front Apron TO Cowl Side, Lower Front LH |
| 53735J | Patch, Front Fender Apron, NO.5 |
| 53747A | Extension, Apron Fender Side, RH |
| 53748A | Extension, Apron Fender Side, LH |
| 53787A | Gusset, Front Fender Apron, Lower RH |
| 53813C | Extension, Front Fender, RH |
| 53814C | Extension, Front Fender, LH |
| 53835D | Bracket, Front Side Panel, RH |
| 53836C | Bracket, Front Side Panel, LH |
| 55101 | Panel Sub-assy, Dash |
| 55137A | Brace, Dash TO Frame, RH |
| 55138A | Brace, Dash TO Frame, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55223A | Insulator, Dash Panel, Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
