Toyota Prius(PLUG-IN HBD)

2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe

Supported model Data version 2011-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 2 illustrations

Illustrations

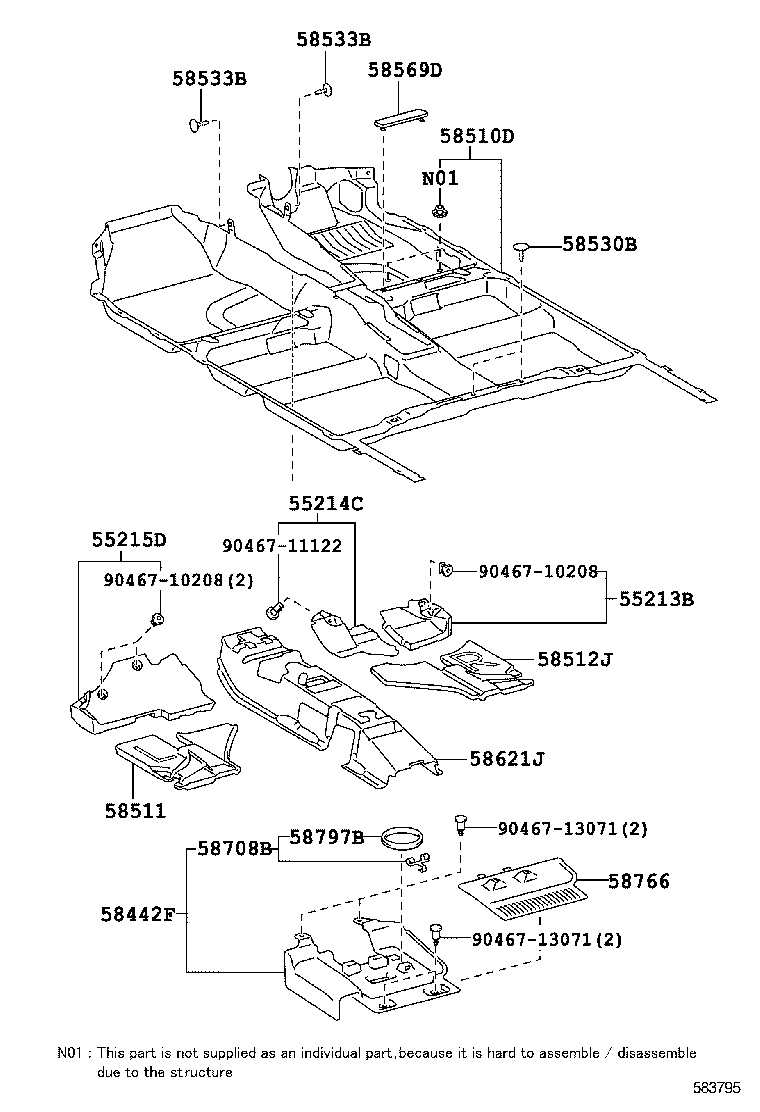

Figure 583798 583798 2009-12 → — Figure 583795 583795 2009-12 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58442F Cover, Jack
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58512J Mat, Floor, NO.2
58530B Clip(FOR FRONT FLOOR CARPET)
58533B Clip(FOR FLOOR CARPET COVER)
58569D Cover, Front Floor Caution Plate
58621J Silencer, Center Console, NO.1
58708B Carrier, Sub-assy, Jack(FOR REAR FLOOR)
58766 Cover, Jack Box Hole
58797B Band, Jack Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
