Toyota Prius(PLUG-IN HBD)
2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe
Supported model
Data version 2011-05

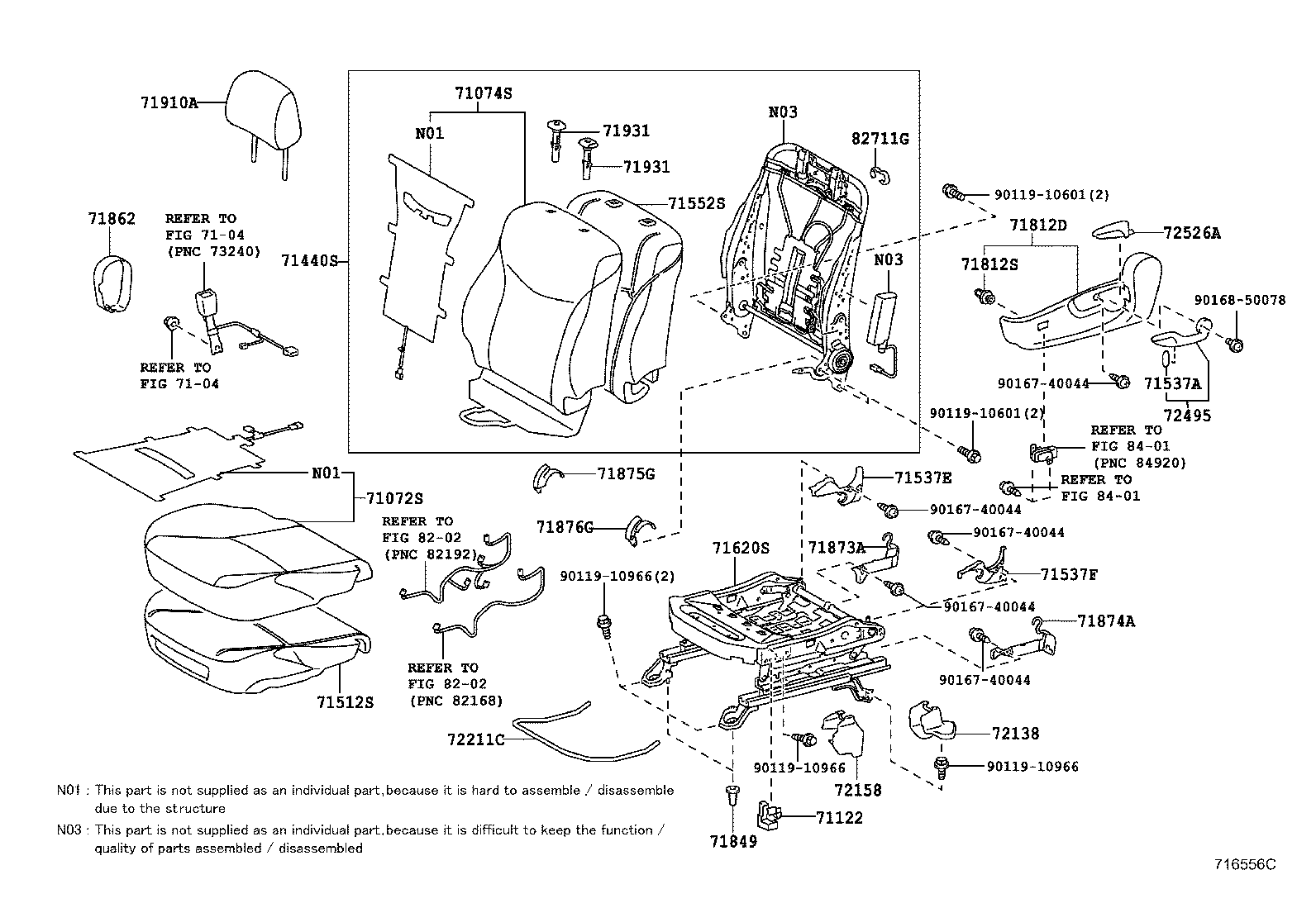

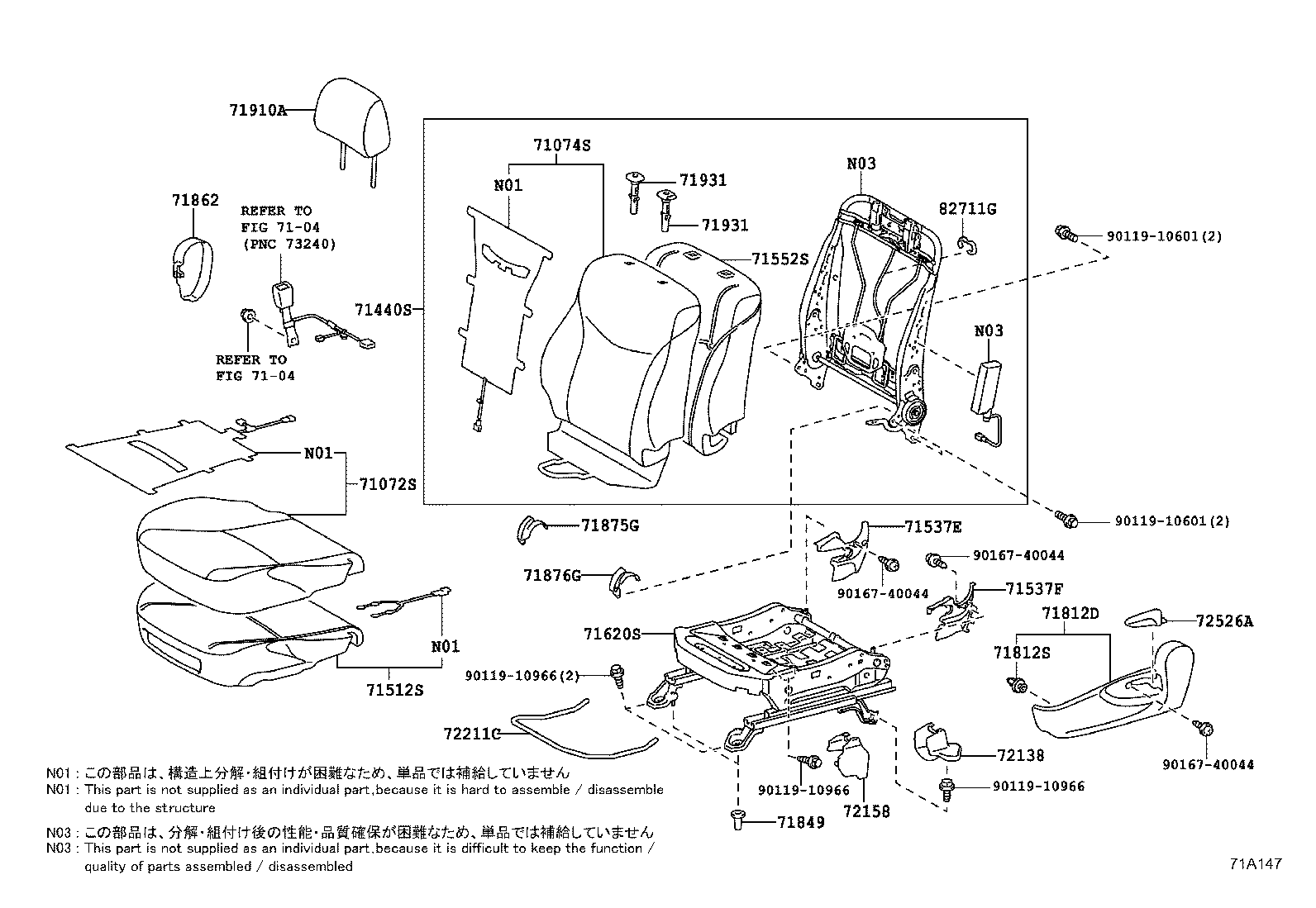

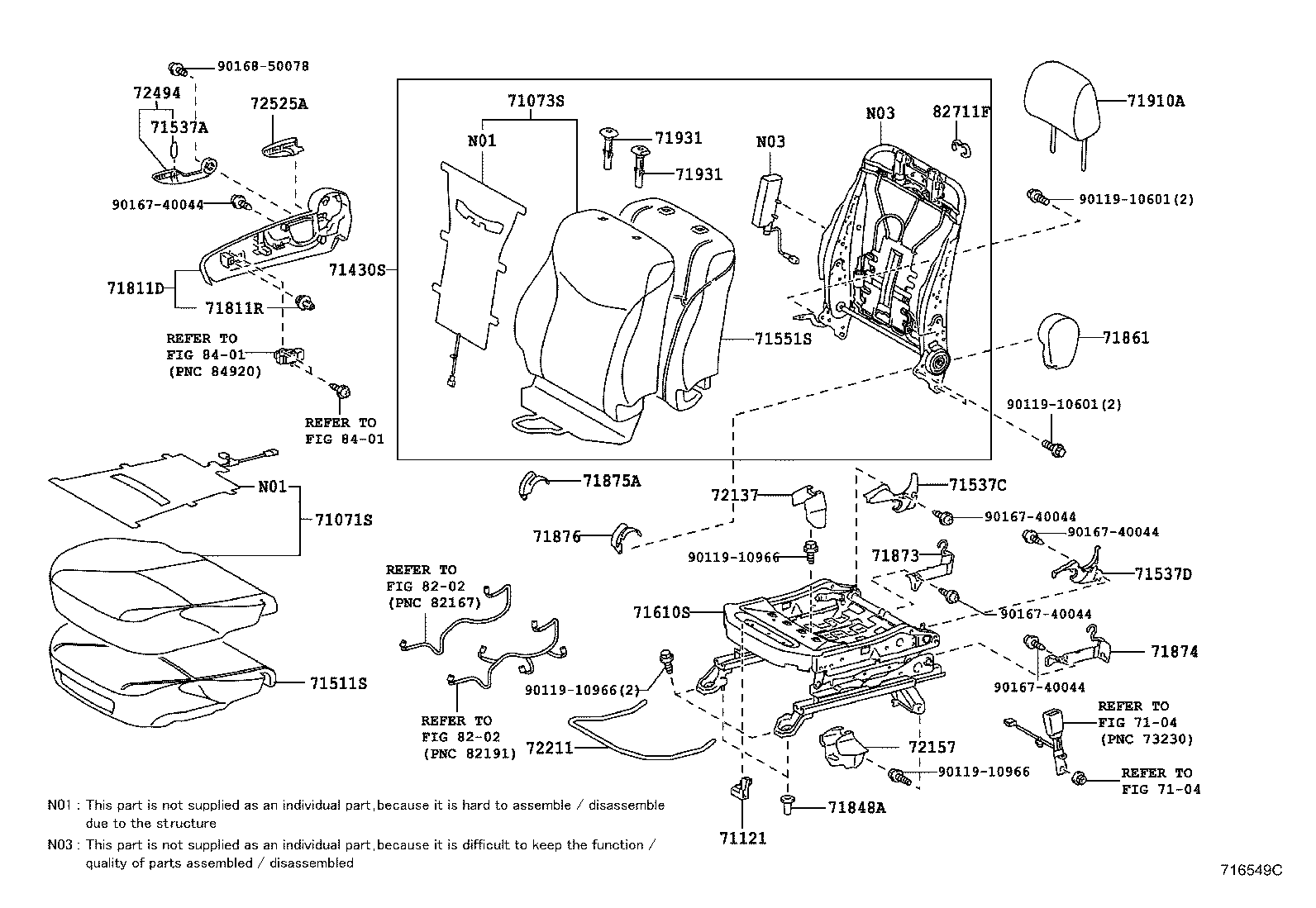

Front Seat & Seat Track
49 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71121 | Bracket, Front Seat Cushion, RH |
| 71122 | Bracket, Front Seat Cushion, LH |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71537E | Protector, Front Seat Cushion, NO.1 |
| 71537F | Protector, Front Seat Cushion, NO.2 |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811R | Clip, Front Seat Cushion Shield, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71812S | Clip, Front Seat Cushion Shield, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72494 | Handle, Vertical Adjusting, RH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 82711F | Clamp, Wiring Harness |
| 82711G | Clamp, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
