Toyota Prius(PLUG-IN HBD)

2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe

Supported model Data version 2011-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

17 part groups · 3 illustrations

Illustrations

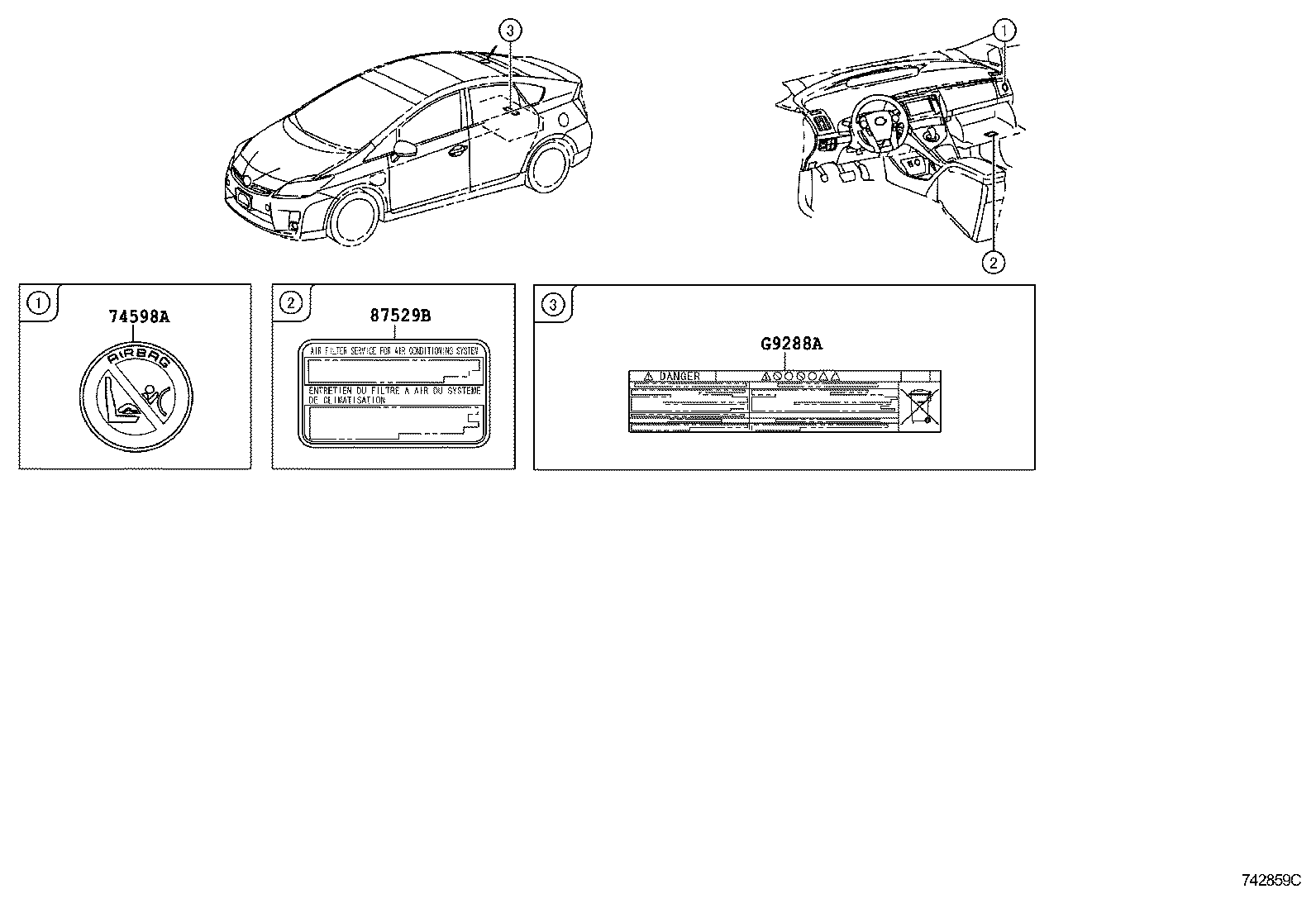

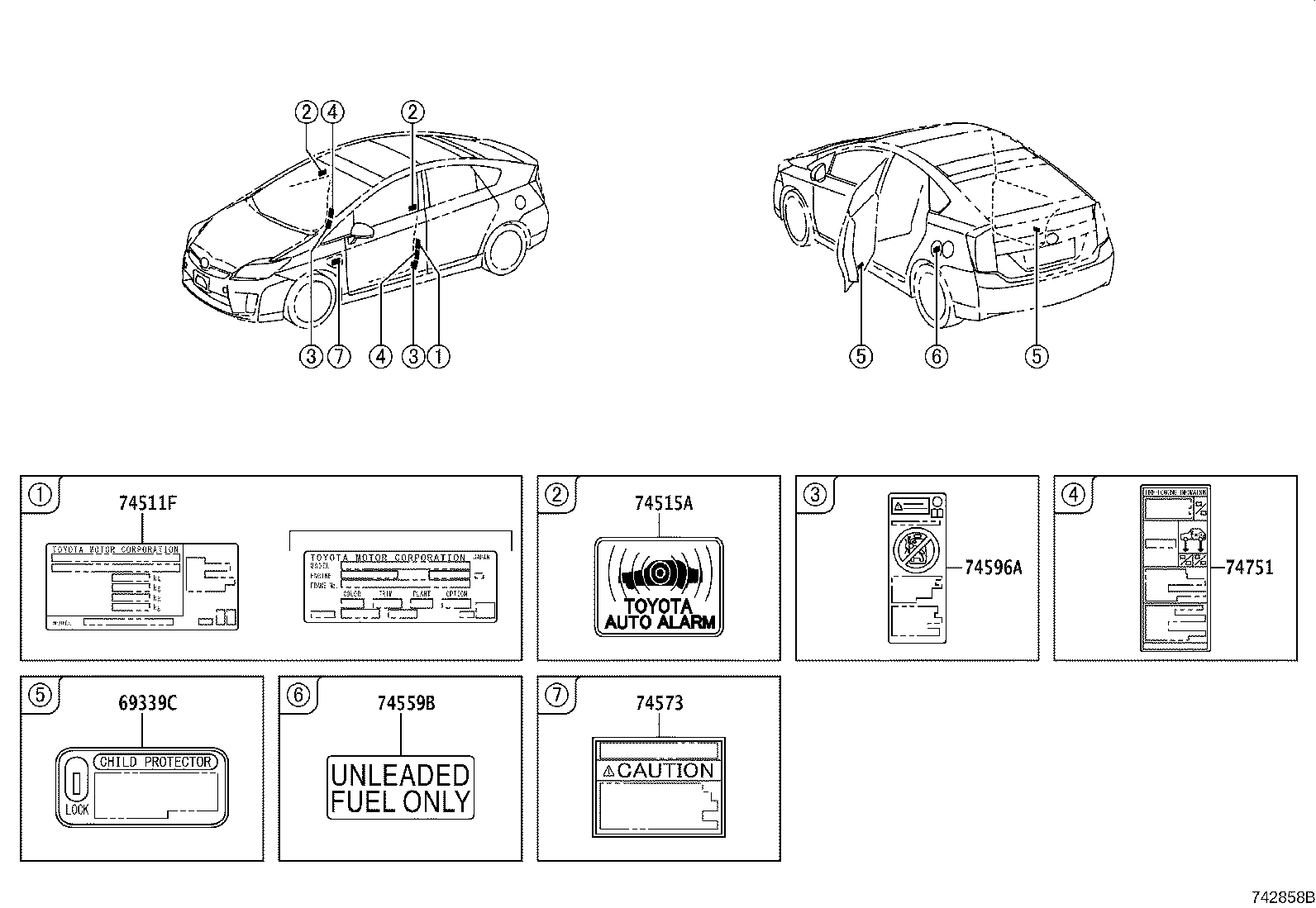

Figure 745487 745487 2009-12 → — Figure 742858B 742858B 2009-12 → — Figure 742859C 742859C 2009-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
16793B Label, Cooling Fan Information
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74559B Label, Fuel Information
74573 Label, Alternator Belt Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
G9288A Label, Battery Carging Notice
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
