Toyota Prius(PLUG-IN HBD)

2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe

Supported model Data version 2011-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

16 part groups · 2 illustrations

Illustrations

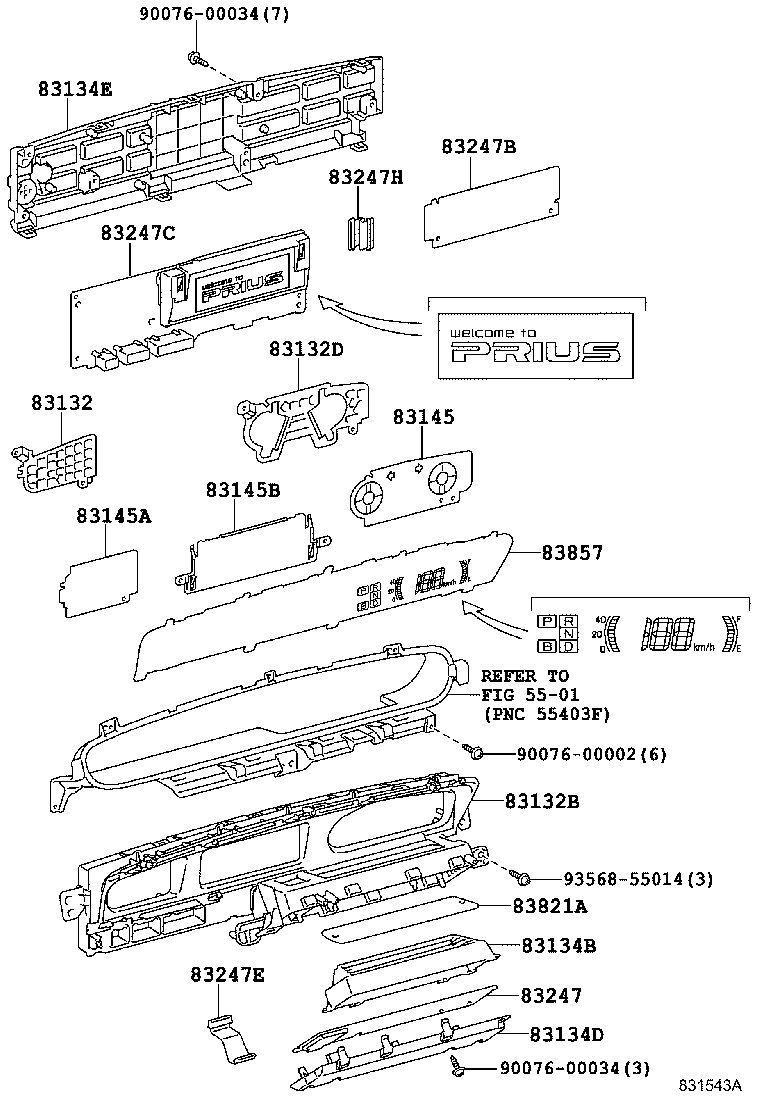

Figure 831544A 831544A 2009-12 → — Figure 831543A 831543A 2009-12 → —

Part groups

PNCDescription
83132 Case, Combination Meter
83132B Case, Combination Meter NO.3
83132D Case, Combination Meter, NO.2
83134B Cover, Combination Meter, NO.2
83134D Cover, Combination Meter, NO.3
83134E Cover, Combination Meter, NO.4
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83247 Plate, Meter Circuit
83247B Plate, Meter Circuit, NO.2
83247C Plate, Mater Circuit, NO.3
83247E Plate, Mater Circuit, NO.4
83247H Plate, Meter Circuit, NO.5
83821A Cover, Combination Meter, NO.1
83857 Reflector, Combination Meter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
