Toyota Prius(PLUG-IN HBD)
2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe
Supported model
Data version 2011-05
Switch & Relay & Computer
73 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100P | Relay, Water Pump |
| 69065A | Cylinder Sub-assy, Airbag Cut Off Switch |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620D | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82641C | Relay, Integration NO.2 |
| 82642G | Relay, Panel |
| 82660B | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82661A | Cover, Relay Block, NO.2 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82715 | Bracket,Wiring Harness Clamp |

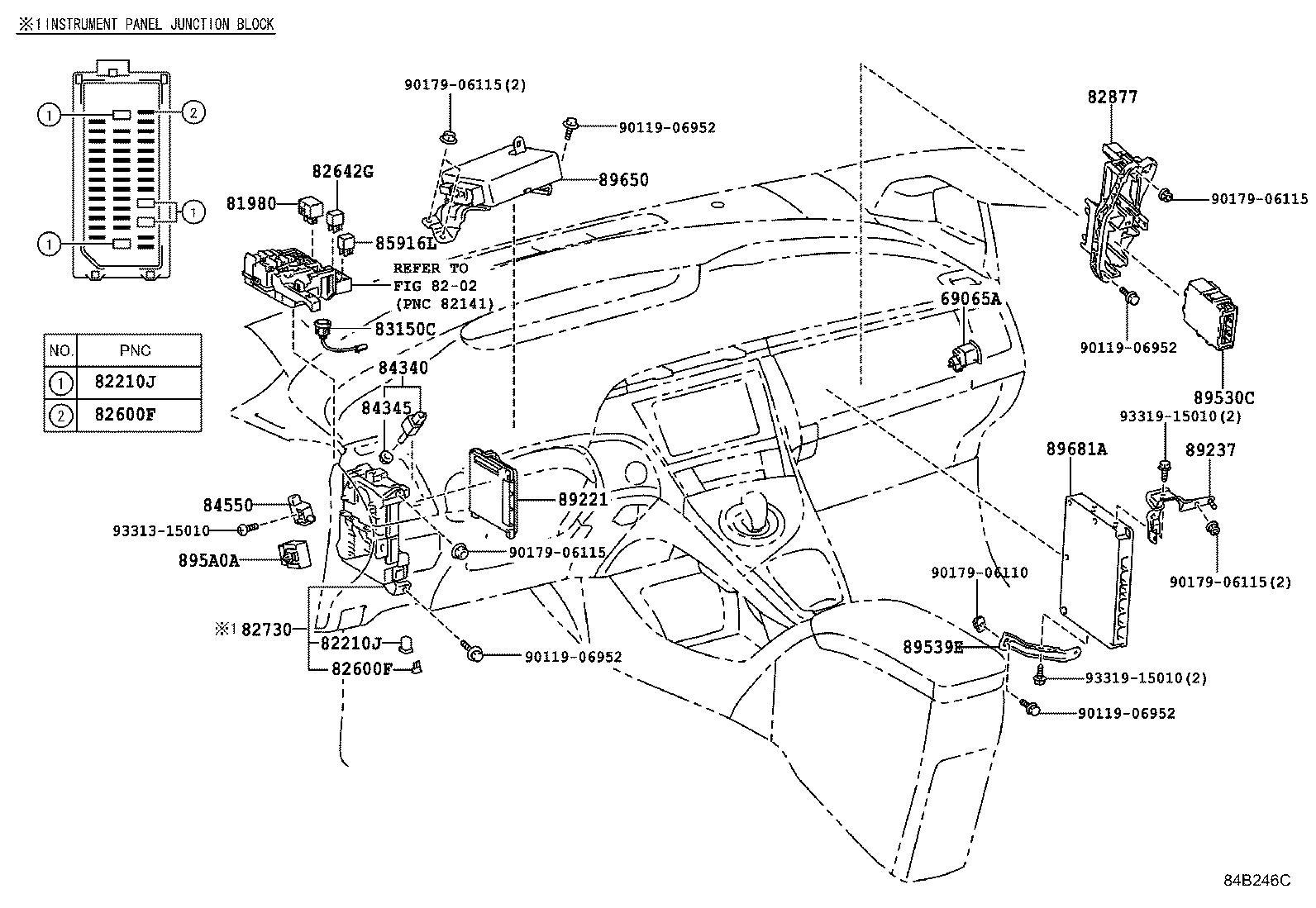

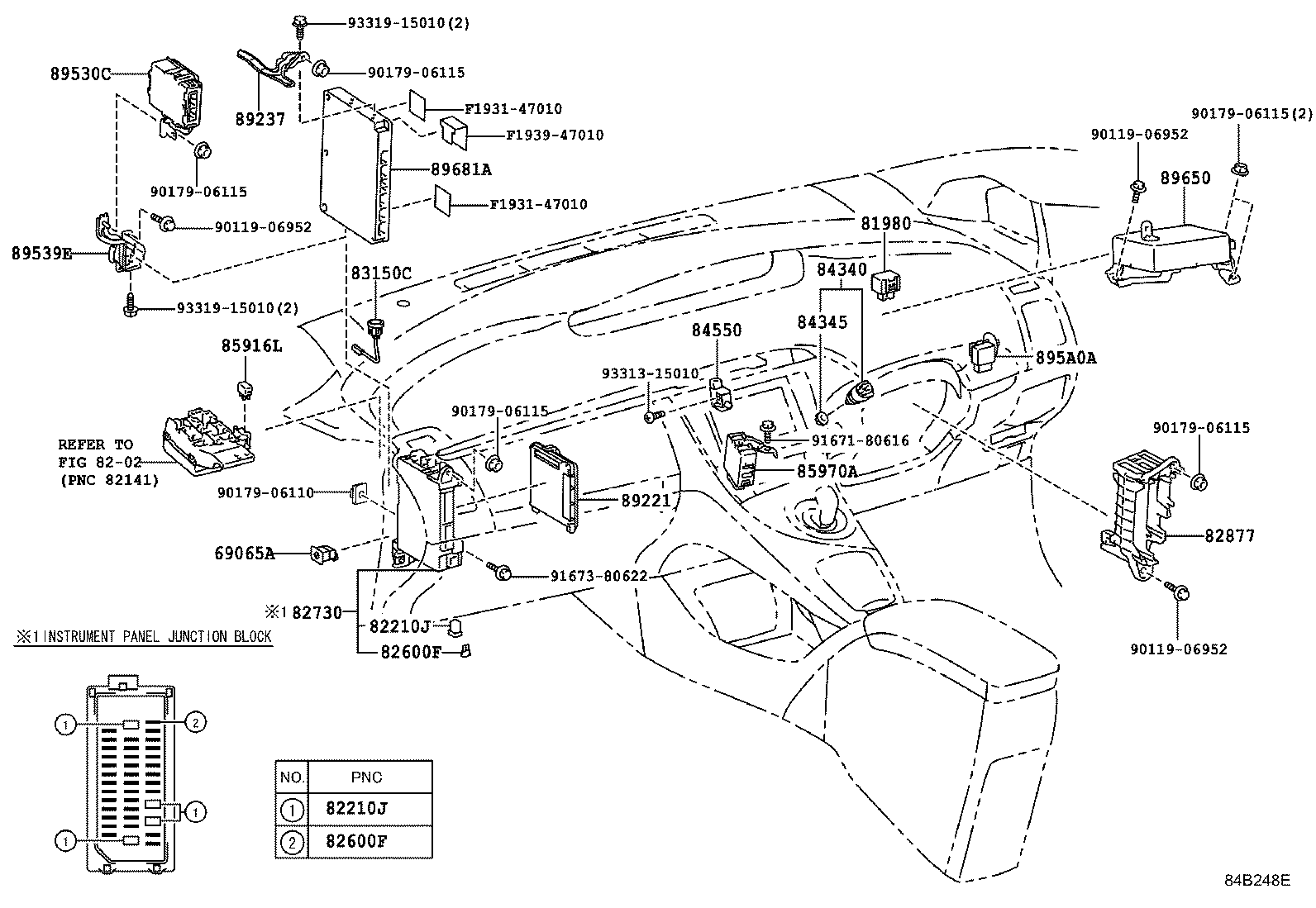

| 82730 | Block Assy, Instrument Panel Junction |

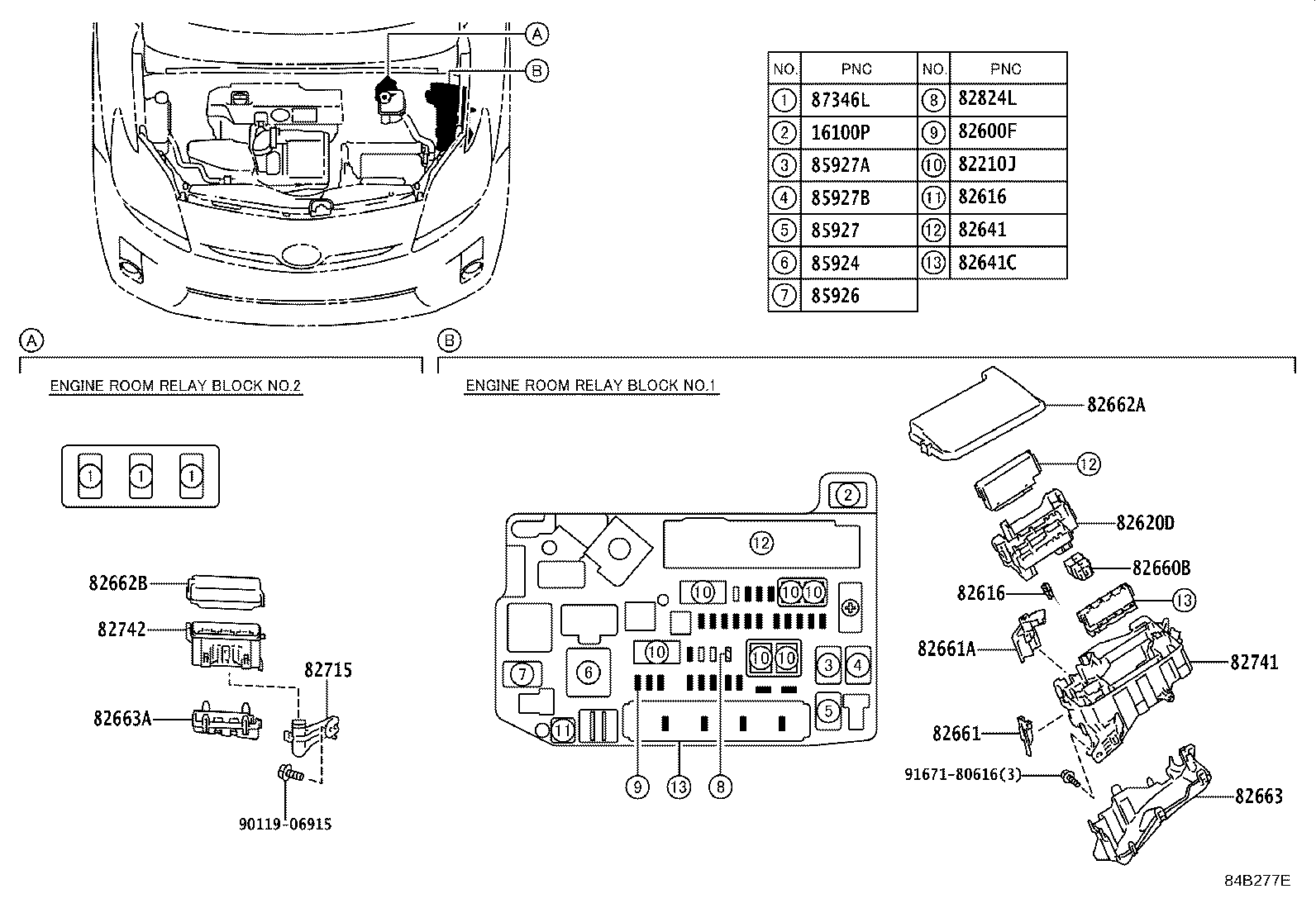

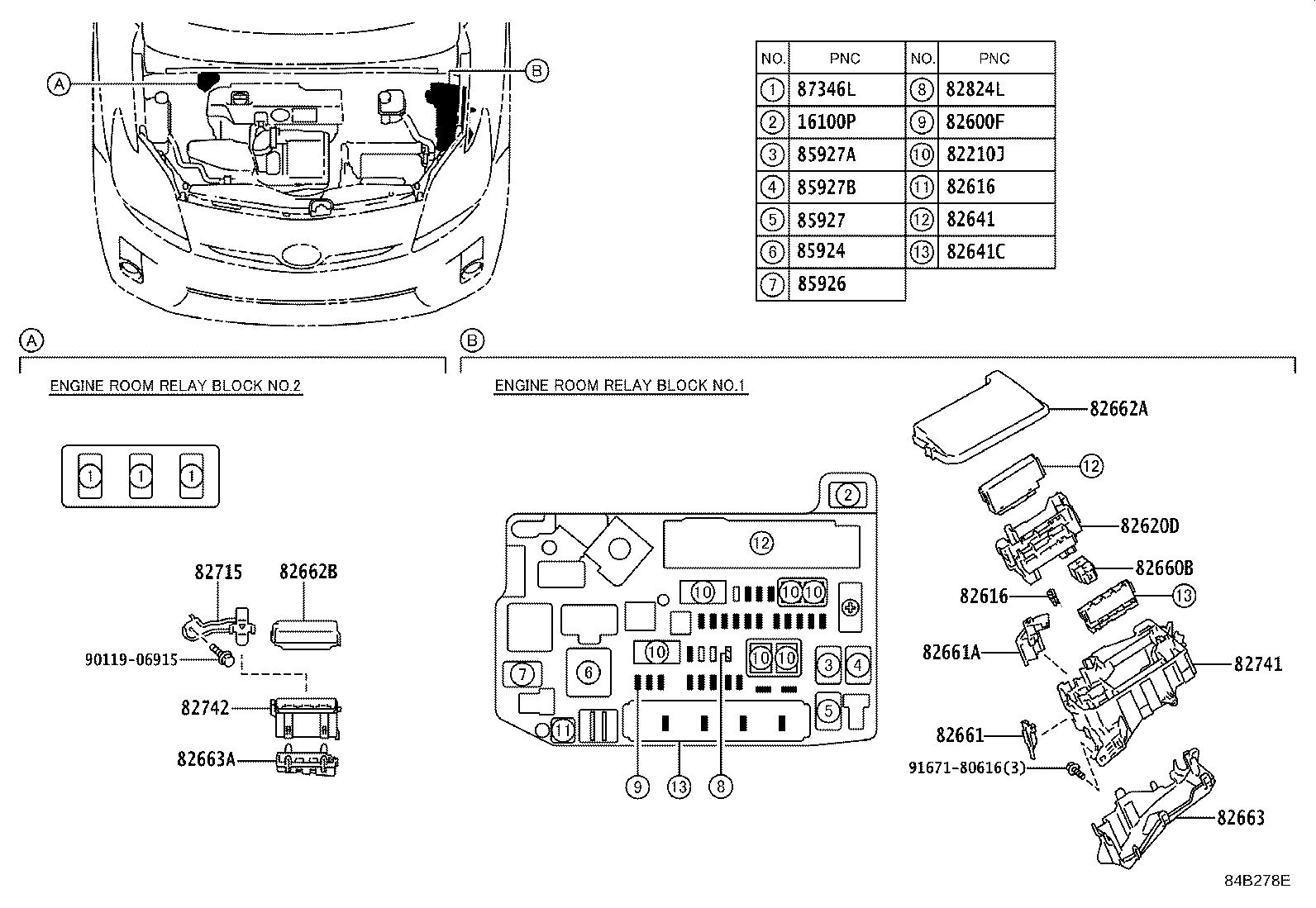

| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82824L | Pin, Short |
| 82877 | Box, Computer Integration, RH |
| 83150C | Indicator Assy |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

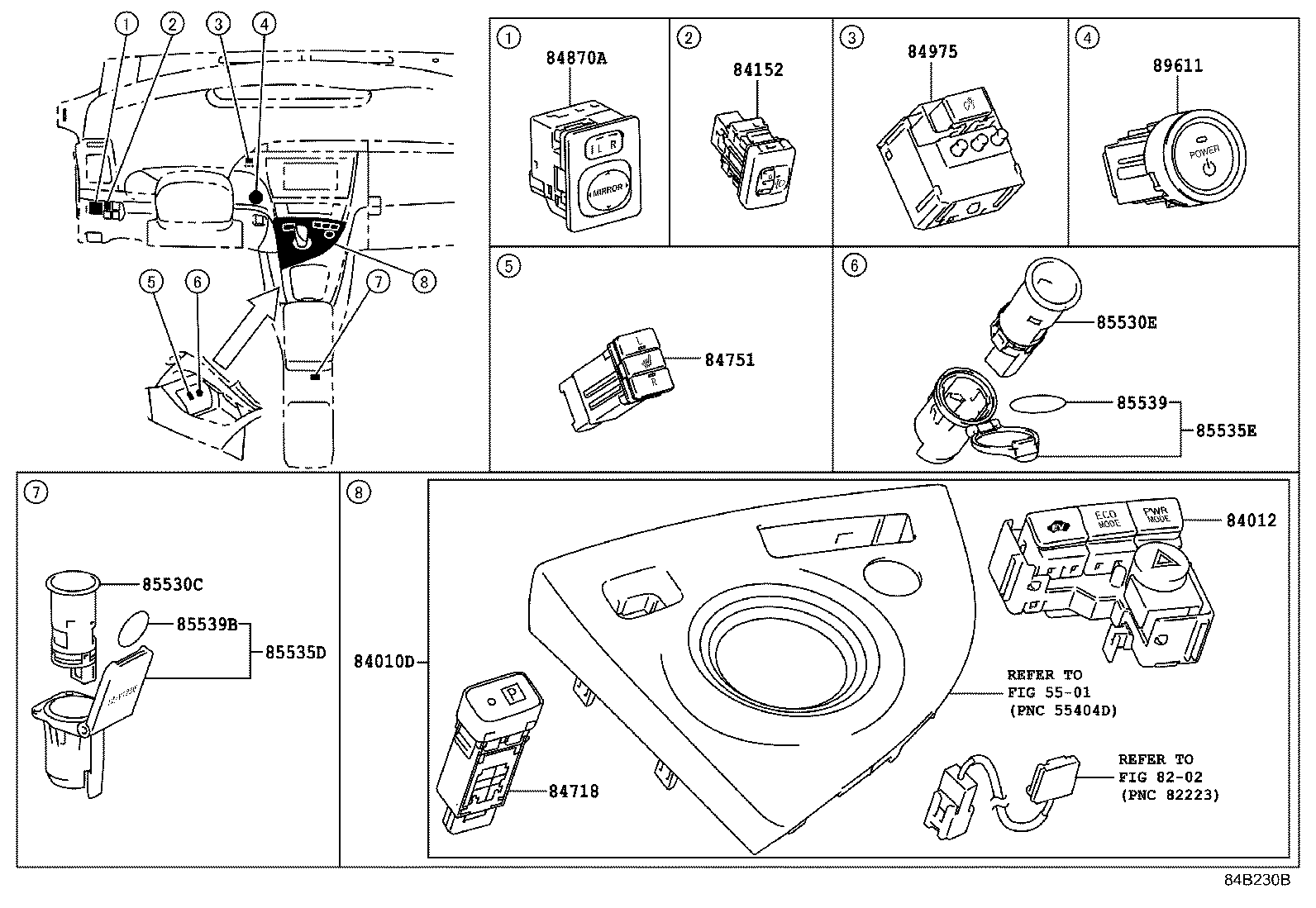

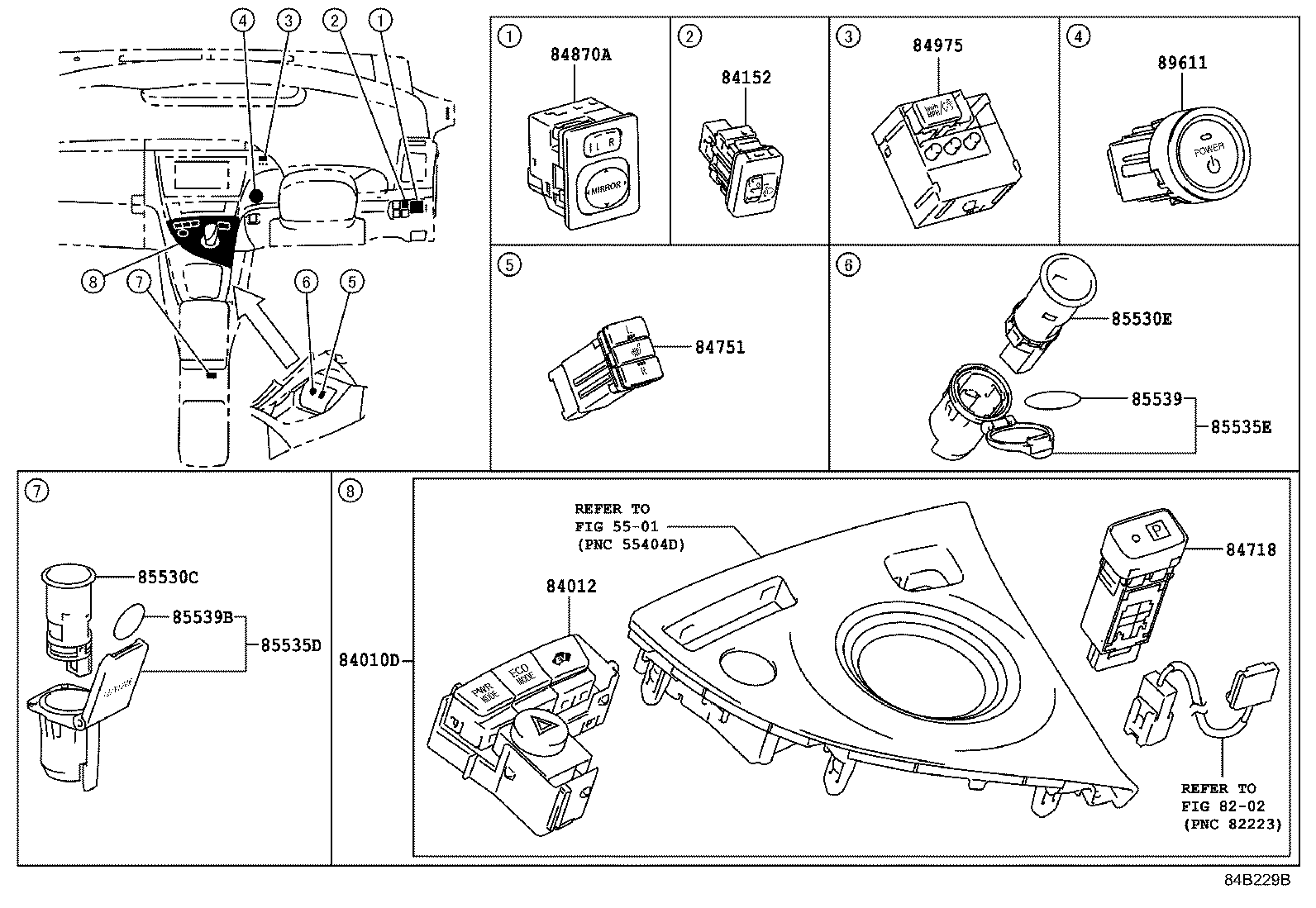

| 84010D | Control & Panel Assy, Integration |
| 84012 | Control & Panel Sub-assy, Integration |
| 84040 | Master Switch Assy,Multiplex Network |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

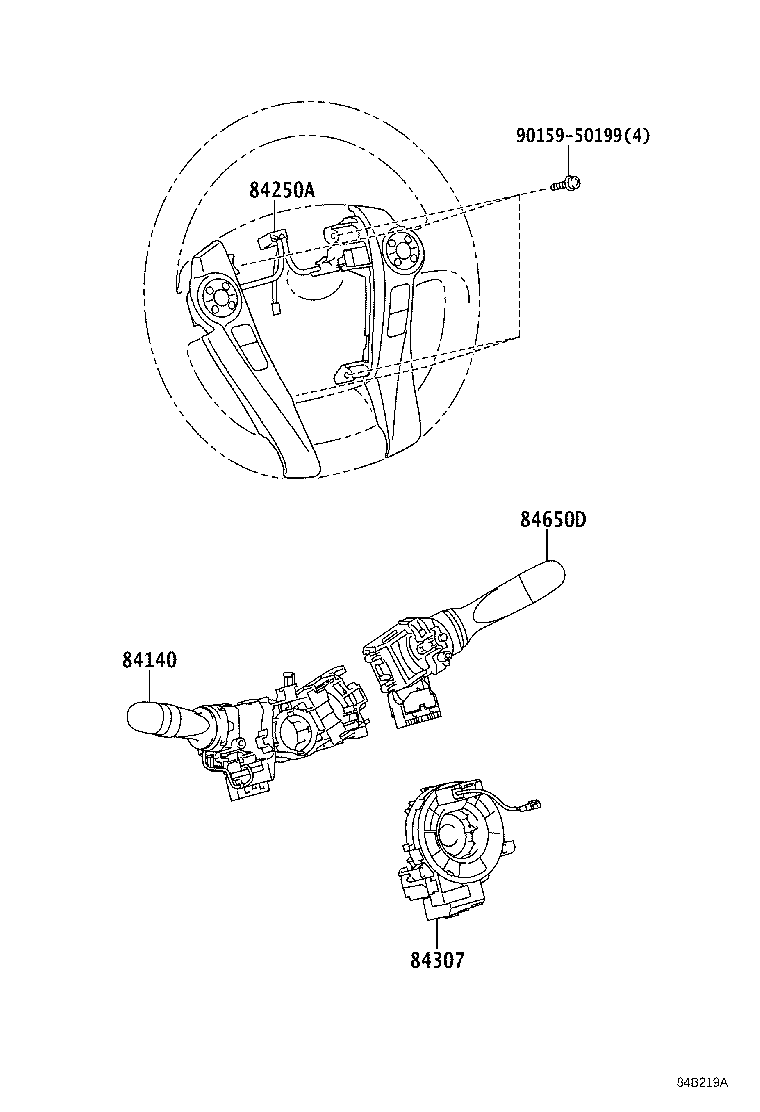

| 84250A | Switch Assy, Steering Pad |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84718 | Switch, Transmission Shift Main |
| 84751 | Switch, Seat Heater |

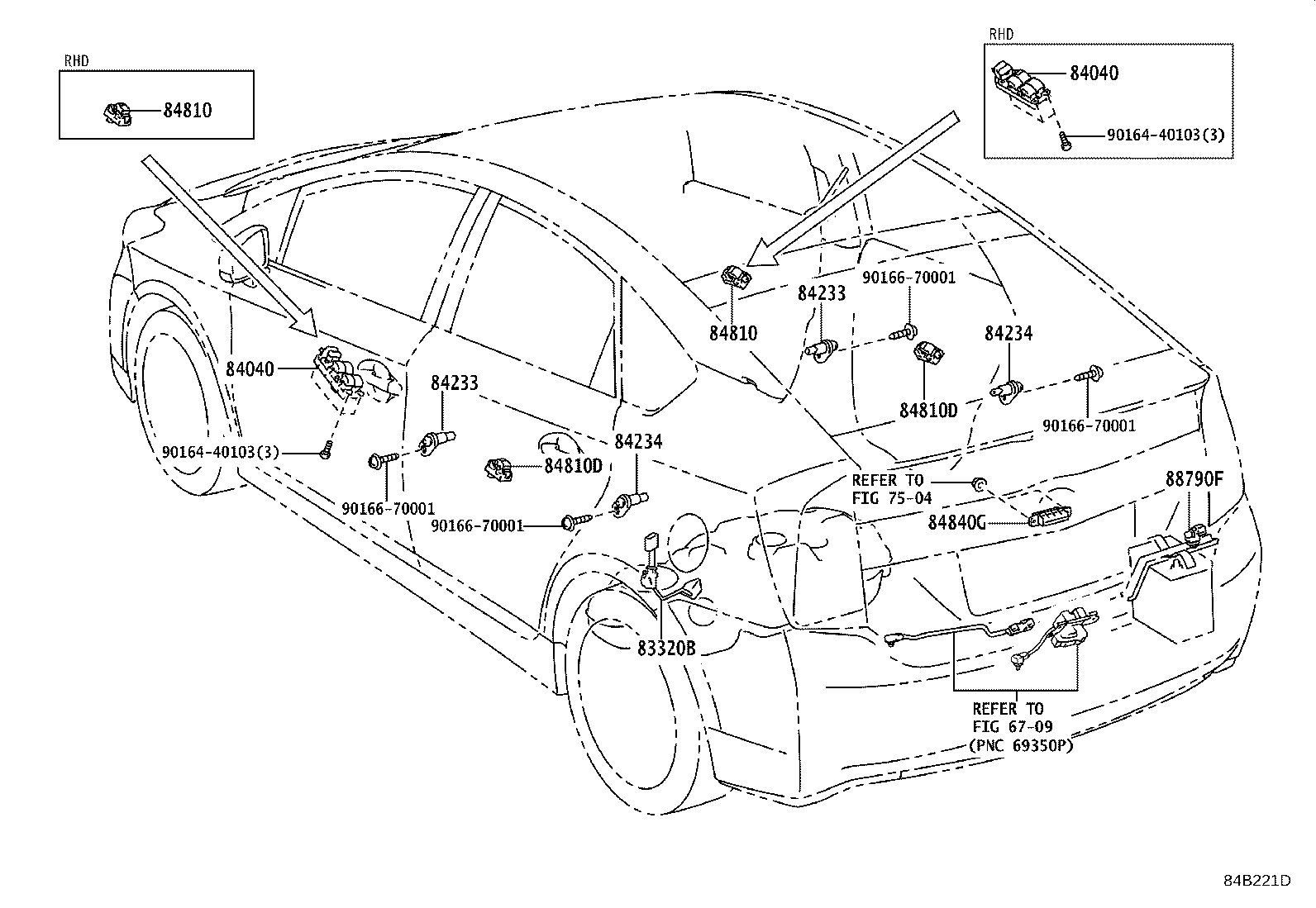

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84975 | Switch, Trip |
| 85530C | Socket Assy, Power Outlet, Center |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535D | Cover, Power Outlet Socket, Center |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85539 | Label, Power Outlet Notice |
| 85539B | Label, Power Outlet Notice, Center |
| 85916L | Relay, Rear Fog Lamp |
| 85924 | Relay, Ignition Control |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85970A | Relay Assy, Double Lock Door Control |
| 87346L | Relay, Ptc Heater |
| 88790F | Thermistor Assy |
| 89221 | Computer, Multiplex Network Body |
| 89237 | Bracket, Computer Unit |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89530C | Computer Assy, Transmission Control |
| 89539E | Bracket, Computer |
| 895A0A | Computer Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89681A | Computer, Power Management Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
