Toyota Prius(PLUG-IN HBD)

2009-12 → 2010-10 · chassis ZVW35 · catalogue 224510 · Europe

Supported model Data version 2011-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

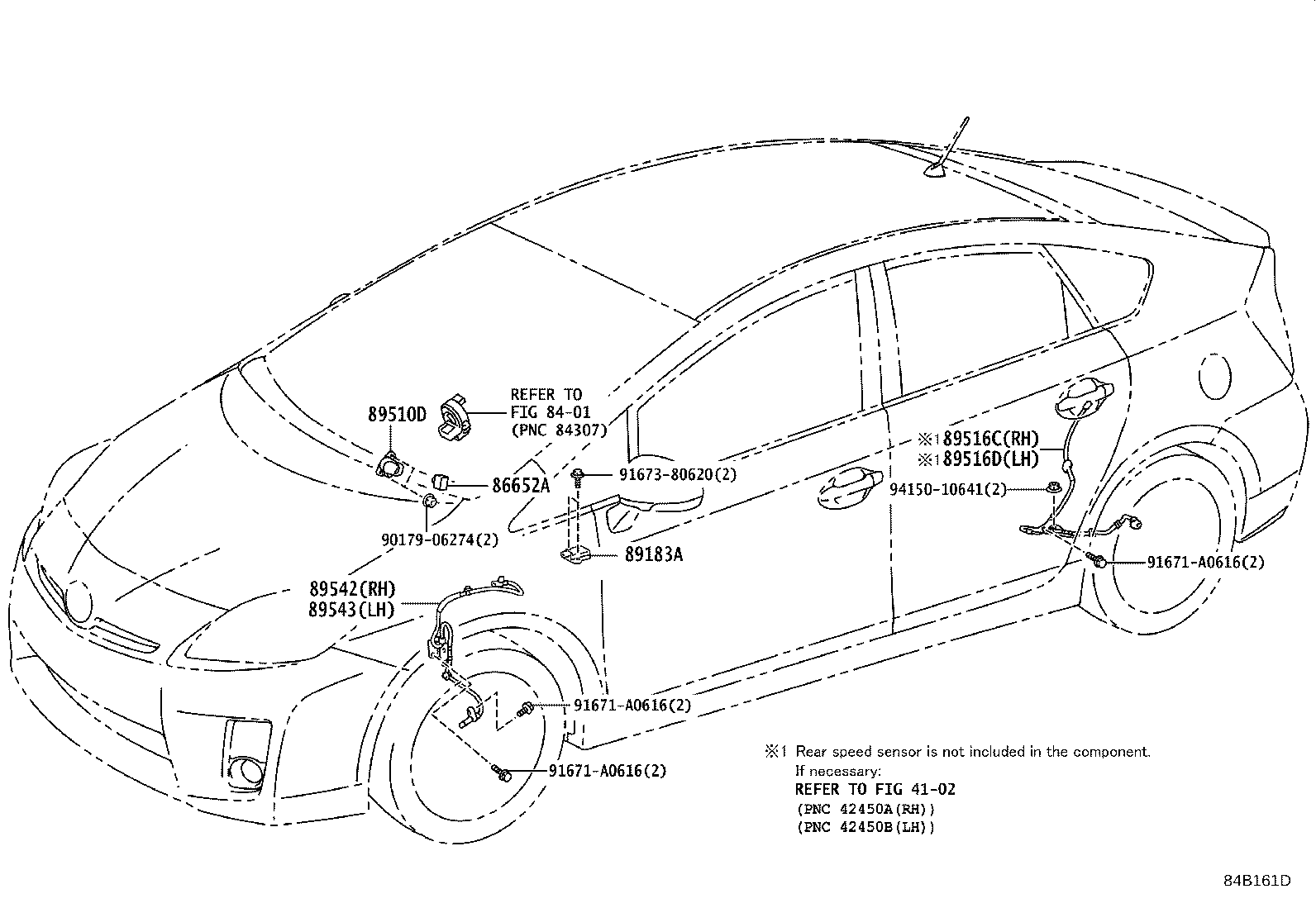

Figure 84B161C 84B161C 2009-12 → — Figure 84B162D 84B162D 2009-12 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
89183A Sensor, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
