Toyota Prius(PLUG-IN HBD)
2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe
Supported model
Data version 2016-10

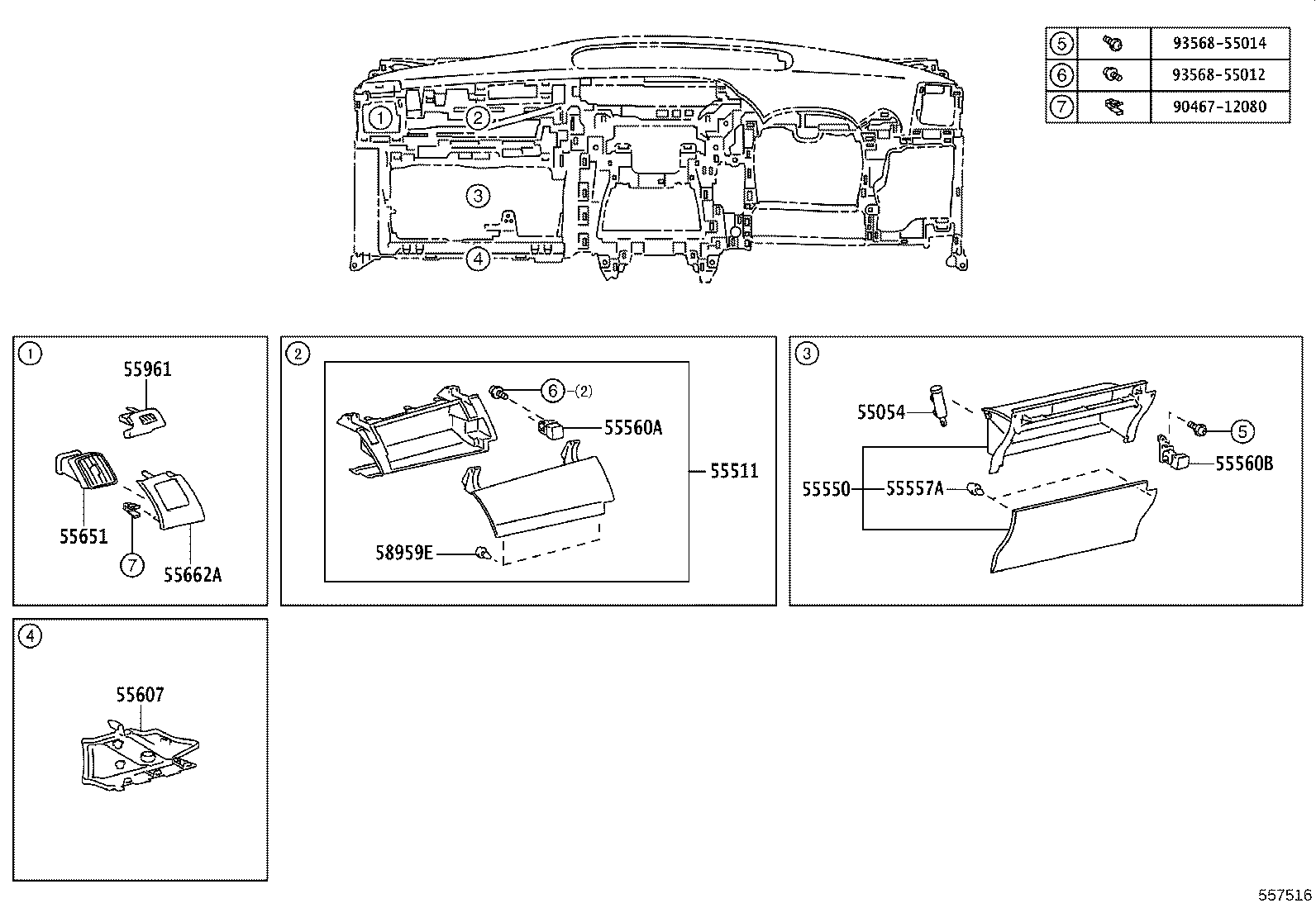

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55054 — Stopper Sub-assy, Glove Compartment Door | ||||
| 55054-47010 |
Stopper Sub-assy, Glove Compartment Door
2012-05 → —
|
ZVW35 | — | |
| 55511 — Door, Glove Compartment | ||||
| 55511-47031-C0 note |
Door, Glove Compartment
2012-05 → 2016-04
ended
|
ZVW35 RHD | — | |
| 55511-47031-G0 note |
Door, Glove Compartment
2012-05 → 2015-07
ended
|
ZVW35 RHD | — | |
| 55511-47040-C0 note |
Door, Glove Compartment
2012-05 → 2012-07
ended
|
ZVW35 LHD | — | |
| 55511-47040-G0 note |
Door, Glove Compartment
2012-05 → 2012-07
ended
|
ZVW35 LHD | — | |
| 55511-47041-C0 note |
Door, Glove Compartment
2012-08 → 2016-04
ended
|
ZVW35 LHD | — | |
| 55511-47041-G0 note |
Door, Glove Compartment
2012-08 → 2015-07
ended
|
ZVW35 LHD | — | |
| 55550 — Door Assy, Glove Compartment | ||||
| 55550-47071-C0 note |
Door Assy, Glove Compartment
2012-05 → 2016-04
ended
|
ZVW35 RHD | — | |
| 55550-47071-G0 note |
Door Assy, Glove Compartment
2012-05 → 2016-04
ended
|
ZVW35 RHD | — | |
| 55550-47081-C0 note |
Door Assy, Glove Compartment
2012-05 → 2016-04
ended
|
ZVW35 LHD | — | |
| 55550-47081-G0 note |
Door Assy, Glove Compartment
2012-05 → 2015-07
ended
|
ZVW35 LHD | — | |
| 55557A — Cushion, Glove Compartment Door Check | ||||
| 55557-53030 |
Cushion, Glove Compartment Door Check
2012-05 → —
|
ZVW35 | — | |
| 55560A — Lock Assy, Glove Compartment Door | ||||
| 55506-47010-C0 note |
Lock Assy, Glove Compartment Door
2012-05 → 2016-04
ended
|
ZVW35 RHD | — | |
| 55506-47010-G0 note |
Lock Assy, Glove Compartment Door
2012-05 → 2015-07
ended
|
ZVW35 RHD | — | |
| 55506-47020-C0 note |
Lock Assy, Glove Compartment Door
2012-08 → 2016-04
ended
|
ZVW35 LHD | — | |
| 55506-47020-G0 note |
Lock Assy, Glove Compartment Door
2012-08 → 2015-07
ended
|
ZVW35 LHD | — | |
| 55560-47080-C0 note |
Lock Assy, Glove Compartment Door
2012-05 → 2012-08
ended
|
ZVW35 LHD | — | |
| 55560-47080-G0 note |
Lock Assy, Glove Compartment Door
2012-05 → 2012-08
ended
|
ZVW35 LHD | — | |
| 55560B — Lock Assy, Glove Compartment Door | ||||
| 55560-47050-C0 note |
Lock Assy, Glove Compartment Door
2012-05 → 2016-04
ended
|
ZVW35 RHD | — | |
| 55560-47050-G0 note |
Lock Assy, Glove Compartment Door
2012-05 → 2016-04
ended
|
ZVW35 RHD | — | |
| 55560-47060-C0 note |
Lock Assy, Glove Compartment Door
2012-05 → 2016-04
ended
|
ZVW35 LHD | — | |
| 55560-47060-G0 note |
Lock Assy, Glove Compartment Door
2012-05 → 2015-07
ended
|
ZVW35 LHD | — | |
| 55607 — Cover Sub-assy, Instrument Panel Under, NO.2 | ||||
| 55607-47030 |
Cover Sub-assy, Instrument Panel Under, NO.2
2012-05 → —
|
ZVW35 RHD | — | |
| 55607-47040 |
Cover Sub-assy, Instrument Panel Under, NO.2
2012-05 → —
|
ZVW35 LHD | — | |
| 55651 — Register, Instrument Panel, NO.1 | ||||
| 55651-47030-C0 note |
Register, Instrument Panel, NO.1
2012-05 → 2016-04
ended
|
ZVW35 RHD | — | |
| 55651-47030-C0 note |
Register, Instrument Panel, NO.1
2012-05 → 2016-04
ended
|
ZVW35 LHD | — | |
| 55651-47030-G0 note |
Register, Instrument Panel, NO.1
2012-05 → 2015-07
ended
|
ZVW35 RHD | — | |
| 55662A — Bezel, Instrument Panel Resister, NO.2 | ||||
| 55662-47030-C0 note |
Bezel, Instrument Panel Resister, NO.2
2012-05 → 2016-04
ended
|
ZVW35 LHD | — | |
| 55662-47030-G0 note |
Bezel, Instrument Panel Resister, NO.2
2012-05 → 2015-07
ended
|
ZVW35 LHD | — | |
| 55662-47040-C0 note |
Bezel, Instrument Panel Resister, NO.2
2012-05 → 2016-04
ended
|
ZVW35 RHD | — | |
| 55662-47040-G0 note |
Bezel, Instrument Panel Resister, NO.2
2012-05 → 2015-07
ended
|
ZVW35 RHD | — | |
| 55961 — Nozzle, Side Defroster, NO.1 | ||||
| 55961-47020-C0 note |
Nozzle, Side Defroster, NO.1
2012-05 → 2016-04
ended
|
ZVW35 RHD | — | |
| 55961-47030-C0 note |
Nozzle, Side Defroster, NO.1
2012-05 → 2016-04
ended
|
ZVW35 LHD | — | |
| 58959E — Cushion, Console Compartment Door | ||||
| 58959-60060 |
Cushion, Console Compartment Door
2012-05 → —
|
ZVW35 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
