Toyota Prius(PLUG-IN HBD)

2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

9 part groups · 2 illustrations

Illustrations

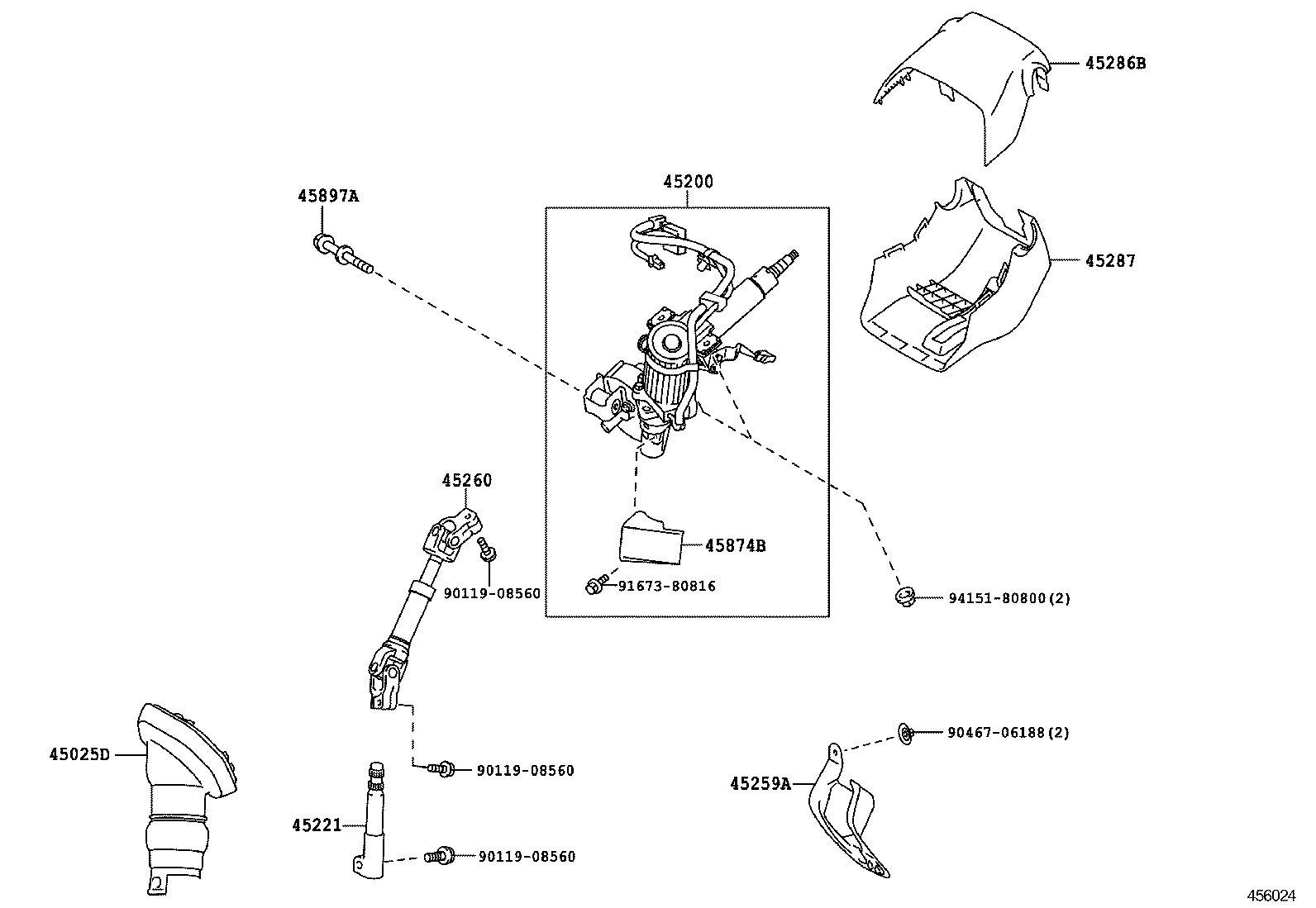

Figure 456026 456026 2012-05 → — Figure 456024 456024 2012-05 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45200 Post Assy, Steering
45221 Shaft, Steering Intermediate
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45874B Protector, Steering Column, NO.1
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
