Toyota Prius(PLUG-IN HBD)

2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

11 part groups · 2 illustrations

Illustrations

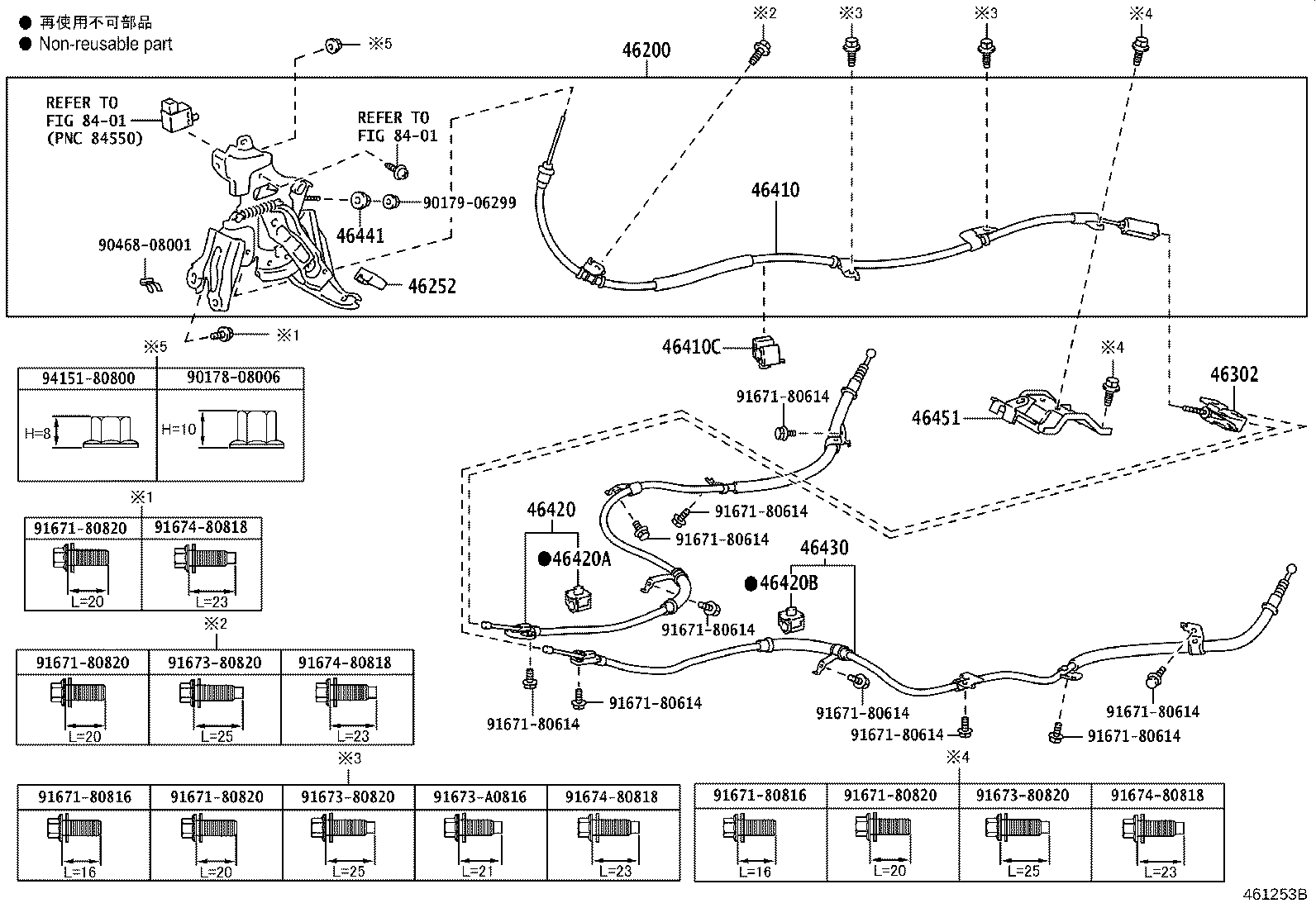

Figure 461254B 461254B 2012-05 → — Figure 461253B 461253B 2012-05 → —

Part groups

PNCDescription
46200 Pedal Assy, Parking Brake Control
46252 Pad, Parking Pedal
46302 Rod Sub-assy, Parking Brake Pull, NO.1
46410 Cable Assy, Parking Brake, NO.1
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46451 Bracket, Cable Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
