Toyota Prius(PLUG-IN HBD)

2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

13 part groups · 2 illustrations

Illustrations

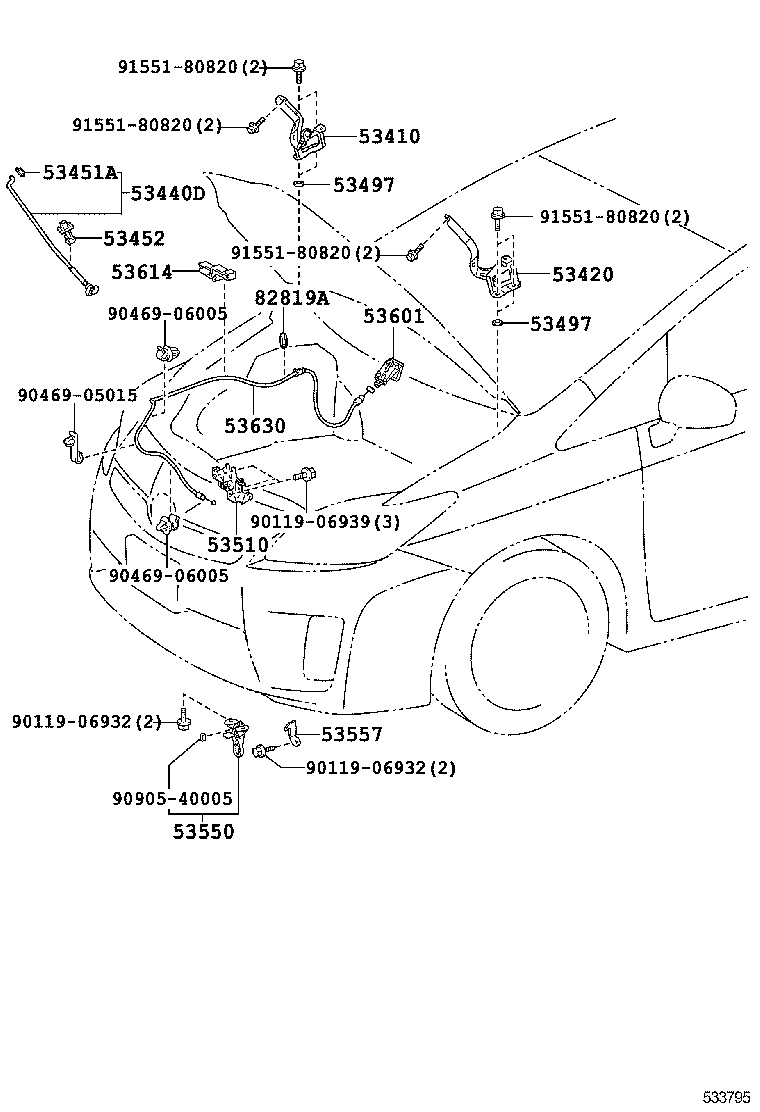

Figure 533794 533794 2012-05 → — Figure 533795 533795 2012-05 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53451A Grommet(FOR HOOD SUPPORT ROD)
53452 Holder, Hood Stay
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53550 Hook Assy, Hood Auxiliary Catch
53557 Catch, Hood Auxiliary Hook
53601 Lever Sub-assy, Hood Lock Control
53614 Clamp, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
82819A Grommet, Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
