Toyota Prius(PLUG-IN HBD)
2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe
Supported model
Data version 2016-10

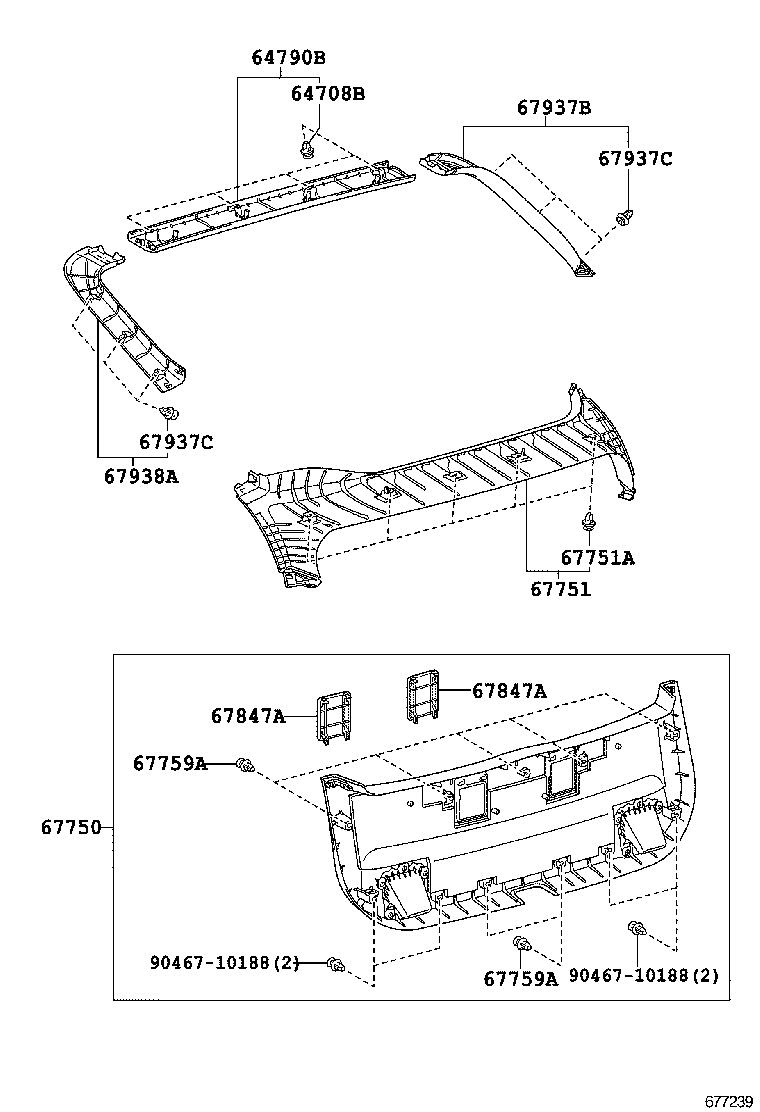

Back Door Panel & Glass
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64708B | Clip, Back Door Trim |
| 64790B | Panel Assy, Back Door Trim, Upper |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64818D | Spacer, Back Window Glass, NO.3 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64819D | Spacer, Back Window Glass, NO.4 |
| 64821 | Glass, Back Window Fix |
| 67005 | Panel Sub-assy, Back Door |
| 67281B | Stopper, Back Door, Lower |
| 67293 | Cushion, Back Door Lower Stopper |
| 67750 | Board Assy, Back Door Trim |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67759A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 68131 | Glass, Back Door |
| 68294C | Dam, Back Door Glass Adhesive, NO.1 |
| 68294D | Dam, Back Door Glass Adhesive, NO.2 |
| 69478 | Cushion, Back Door Lower Stopper |
| 75573G | Moulding, Back Window, Outside RH NO.1 |
| 75573J | Moulding, Back Window, Outside RH NO.2 |
| 75574C | Moulding, Back Window, Outside LH NO.1 |
| 75574D | Moulding, Back Window, Outside LH NO.2 |
| 75575G | Moulding, Back Window, Lower NO.1 |
| 75575H | Moulding, Back Window, Lower NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
