Toyota Prius(PLUG-IN HBD)
2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe
Supported model
Data version 2016-10

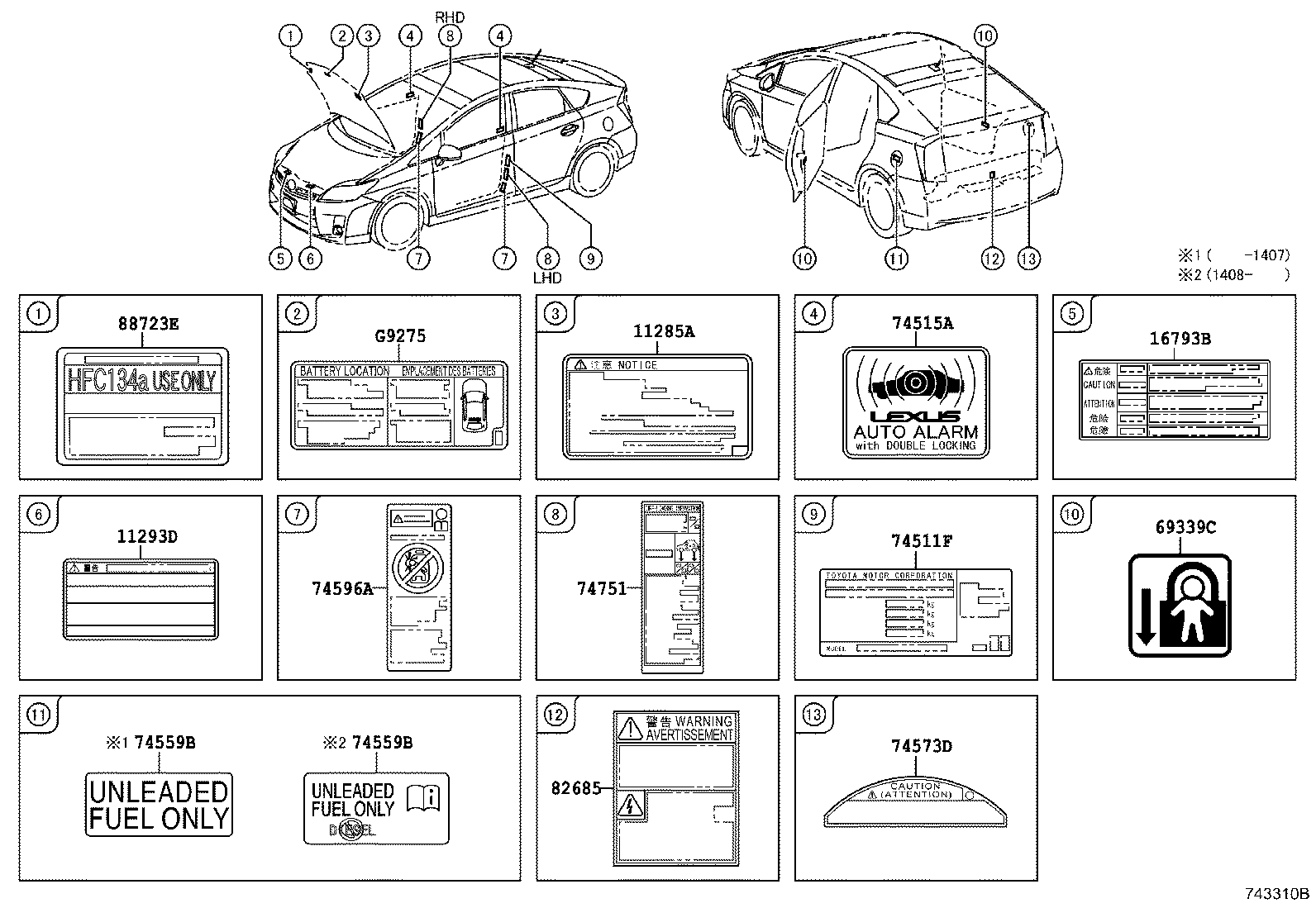

Caution Plate (EXTERIOR & INTERIOR)
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 16793B | Label, Cooling Fan Information |
| 69339C | Label, Child Protector Information |
| 74501B | Label Set, Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74559B | Label, Fuel Information |
| 74573D | Label, Electric Vehicle Battery Caution |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 82685 | Plate, Caution |
| 88723E | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
