Toyota Prius(PLUG-IN HBD)

2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

91 part groups · 9 illustrations

Illustrations

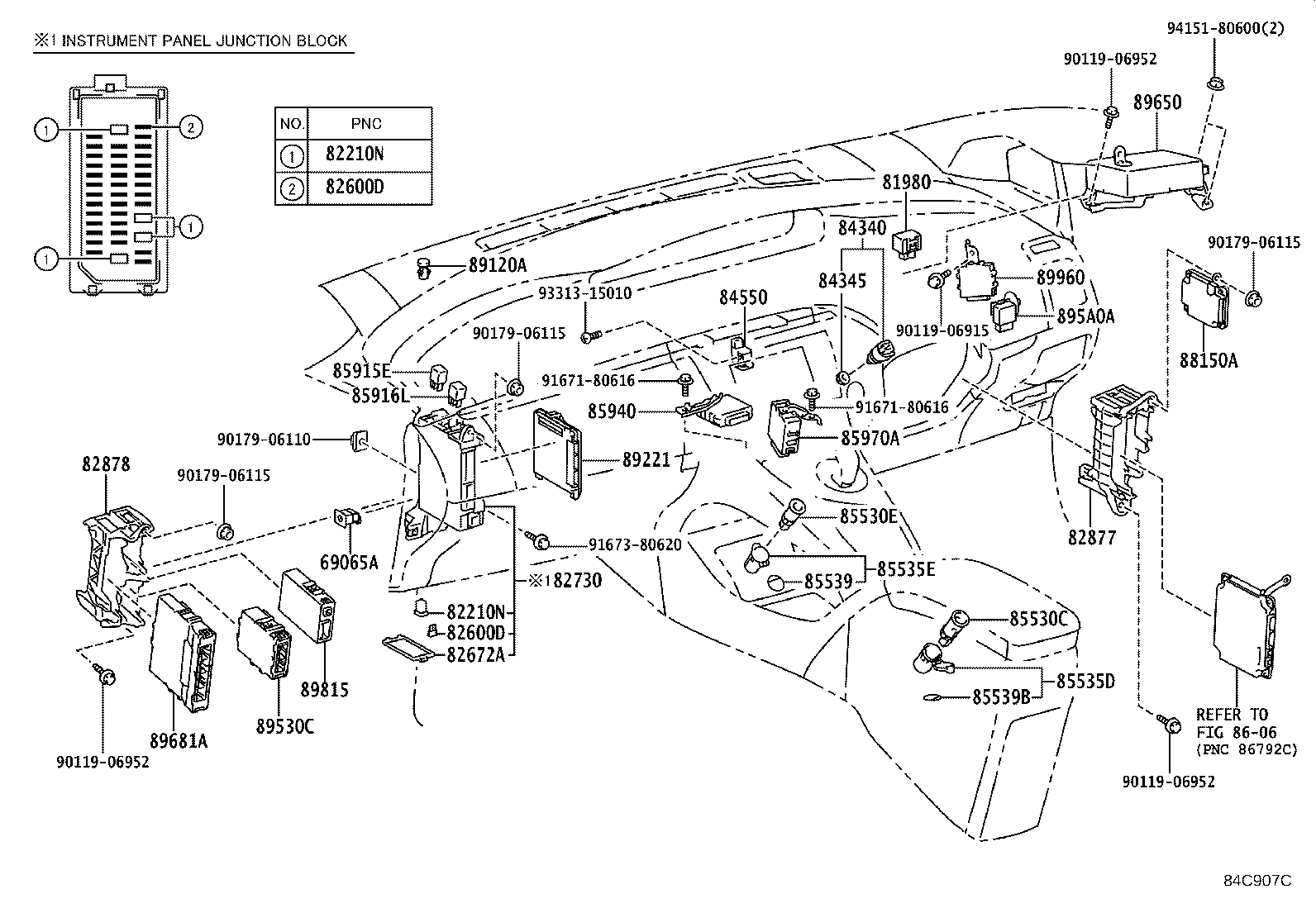

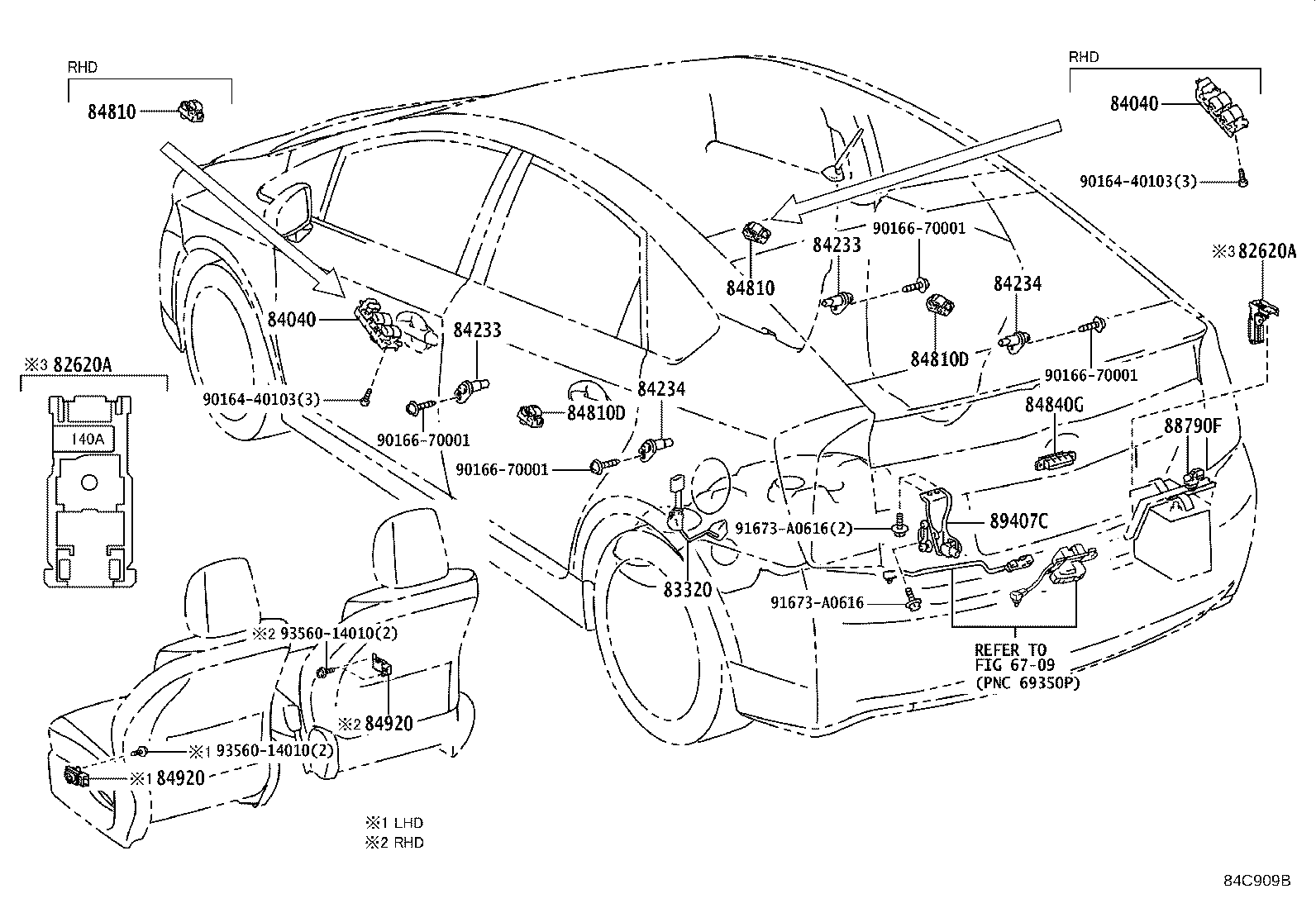

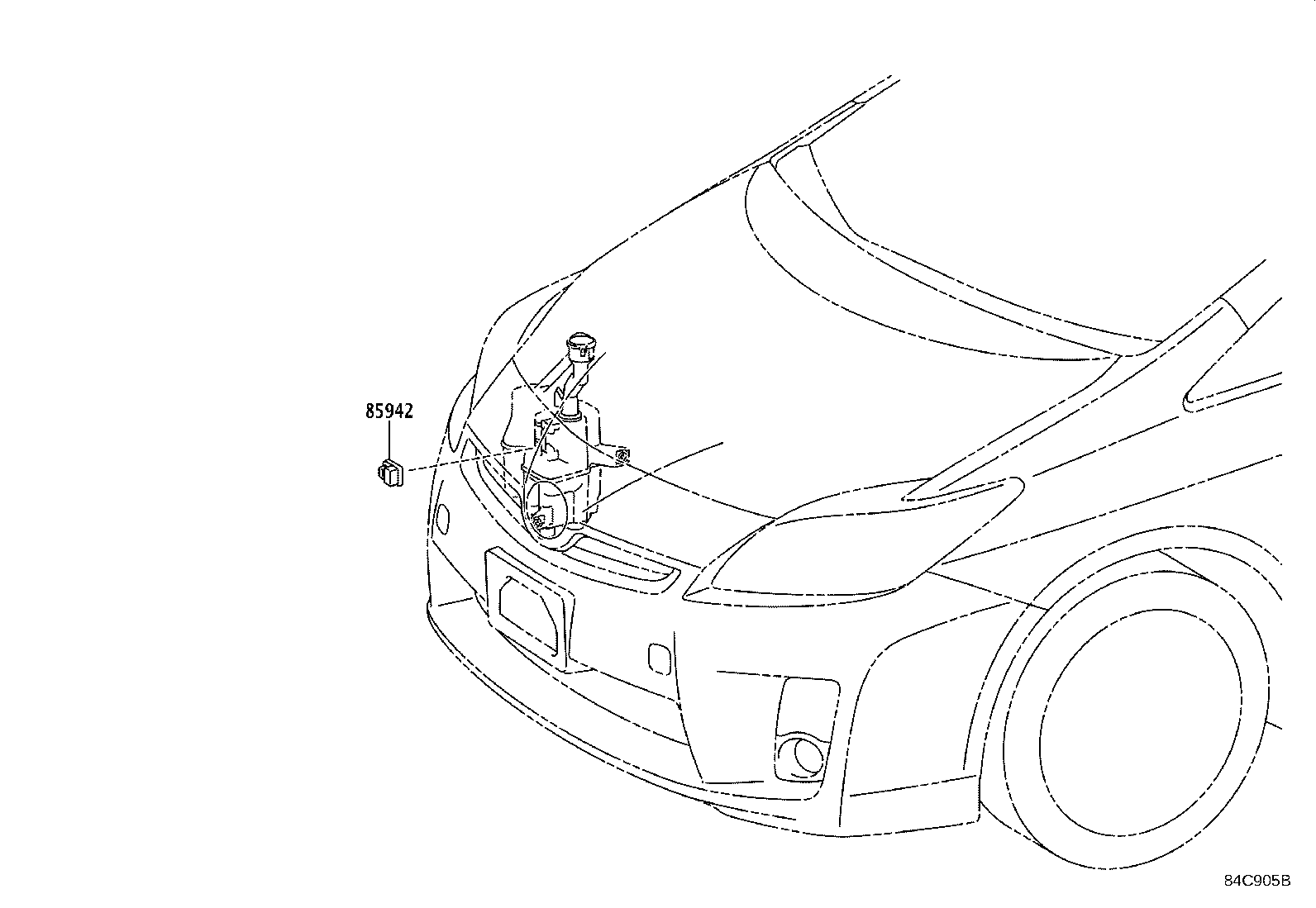

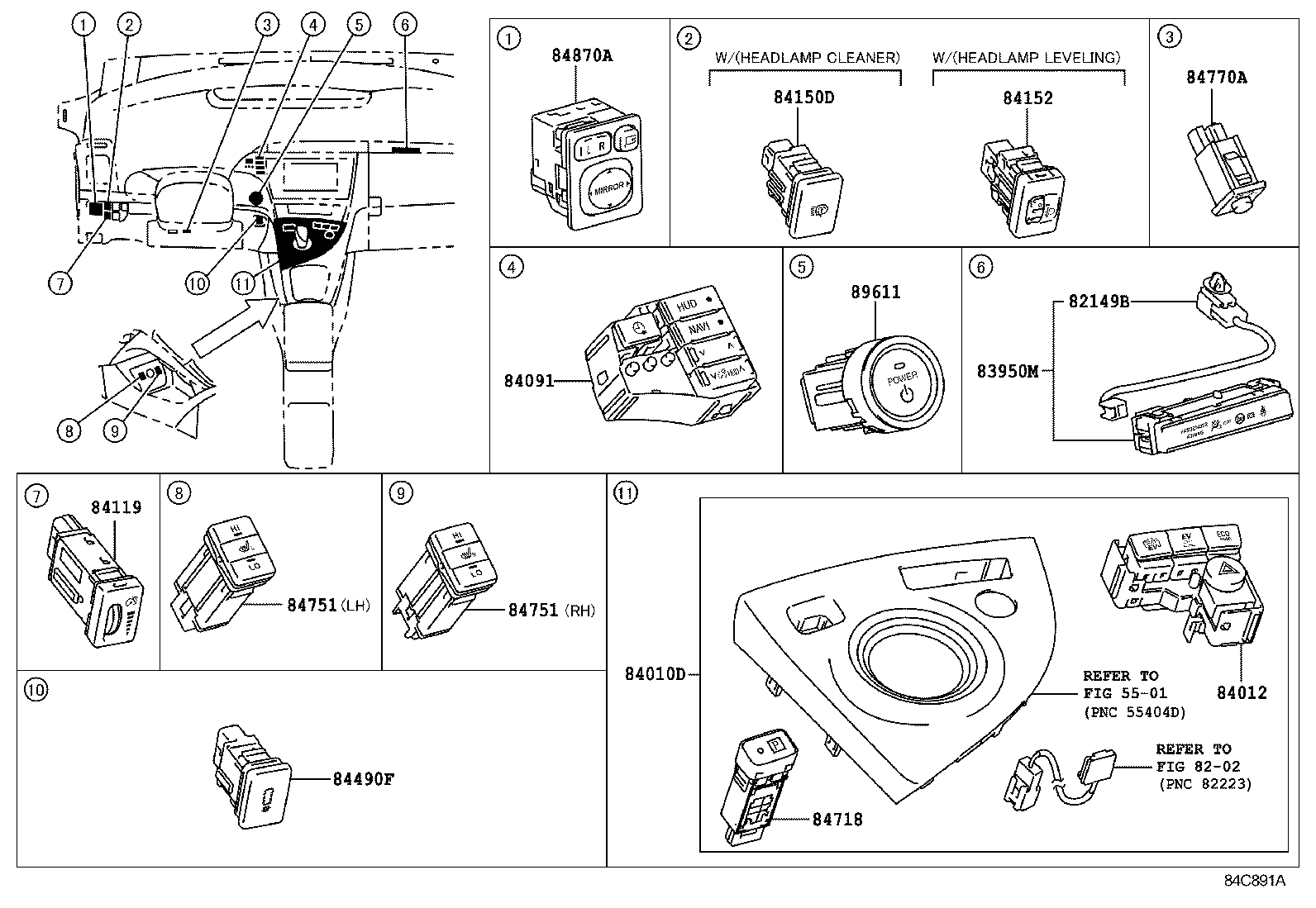

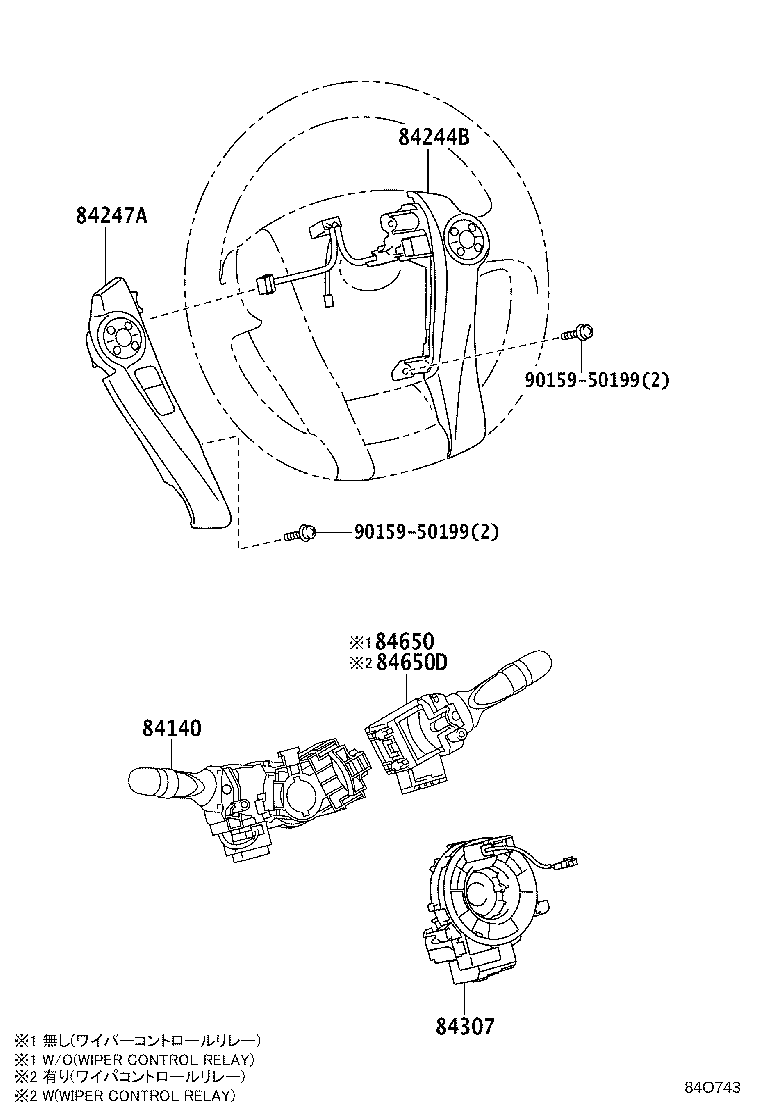

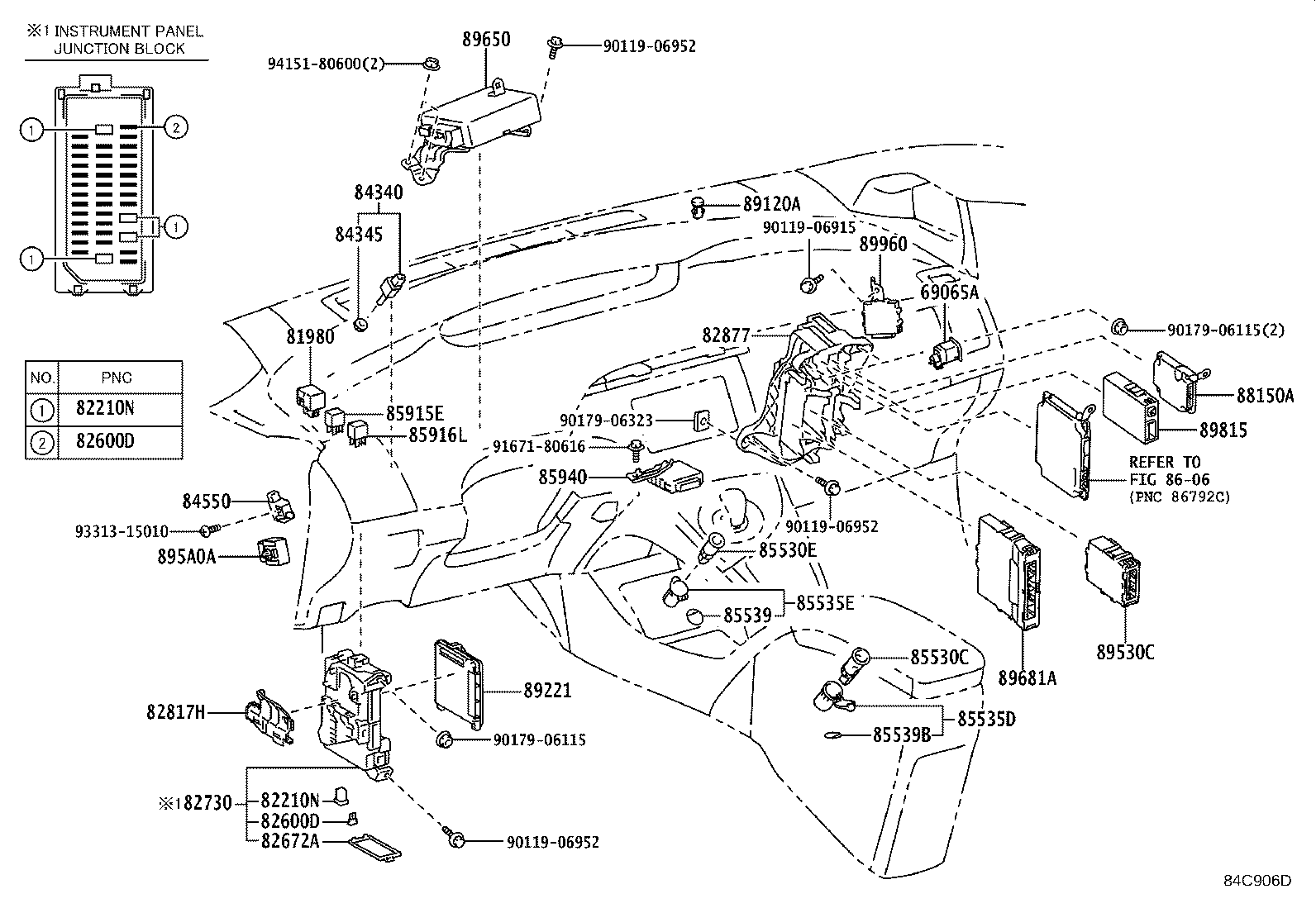

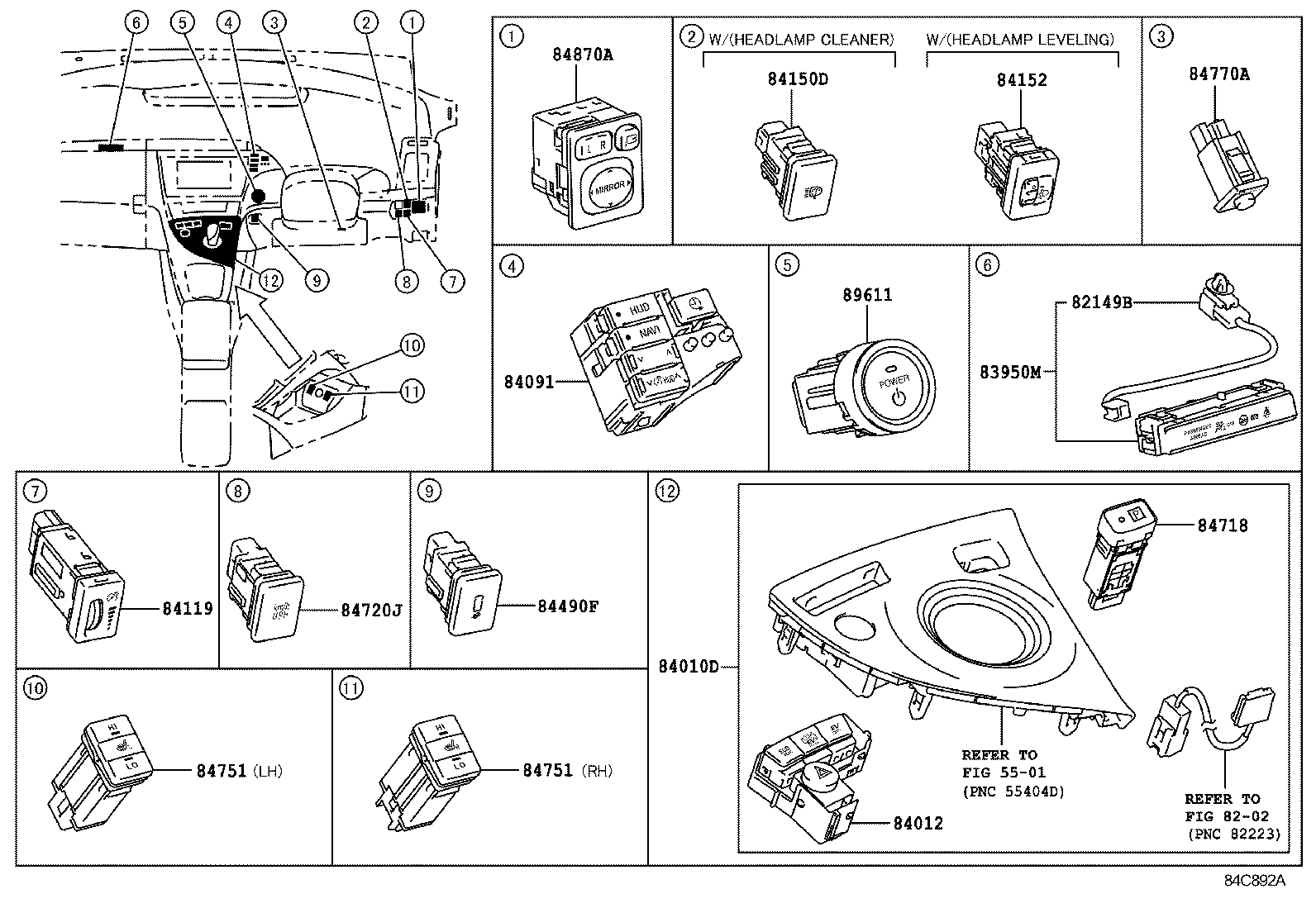

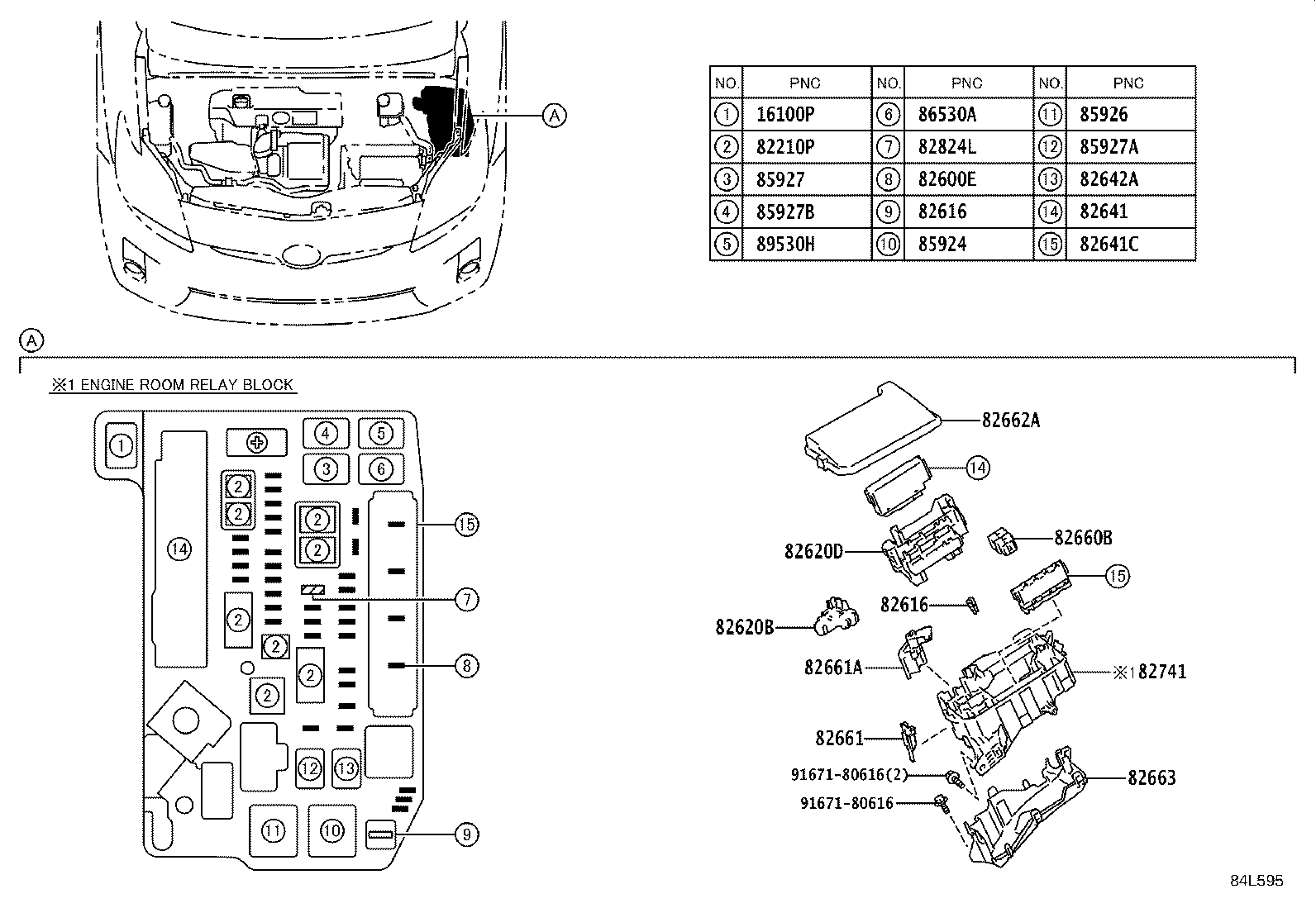

Figure 84C881 84C881 2012-05 → — Figure 84C905B 84C905B 2012-05 → — Figure 84L595 84L595 2012-05 → — Figure 84C906D 84C906D 2012-05 → — Figure 84C907C 84C907C 2012-05 → — Figure 84C891A 84C891A 2012-05 → — Figure 84C892A 84C892A 2012-05 → — Figure 84O743 84O743 2012-05 → — Figure 84C909B 84C909B 2012-05 → —

Part groups

PNCDescription
16100P Relay, Water Pump
69065A Cylinder Sub-assy, Airbag Cut Off Switch
81980 Flasher Assy, Turn Signal
82149B Wire, Instrument Panel, NO.5
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82642A Relay, Running Light
82660B Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82817H Protector, Wiring Harness
82824L Pin, Short
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84010D Control & Panel Assy, Integration
84012 Control & Panel Sub-assy, Integration
84040 Master Switch Assy,Multiplex Network
84091 Switch Set, Satellite
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84490F Switch Assy, Parking Assist Pre Support
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84718 Switch, Transmission Shift Main
84720J Switch Assy, Pattern Select
84751 Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
85530C Socket Assy, Power Outlet, Center
85530E Socket Assy, Power Outlet, NO.3
85535D Cover, Power Outlet Socket, Center
85535E Cover, Power Outlet Socket, NO.2
85539 Label, Power Outlet Notice
85539B Label, Power Outlet Notice, Center
85915E Relay
85916L Relay, Rear Fog Lamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
86530A Relay, Horn
88150A Computer Assy, Driving Support
88790F Thermistor Assy
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89407C Sensor Sub-assy, Height Control, Rear
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89530C Computer Assy, Transmission Control
89530H Relay, Transaxle Parking Look Control
895A0A Computer Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89815 Computer, Seat Belt Control
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
